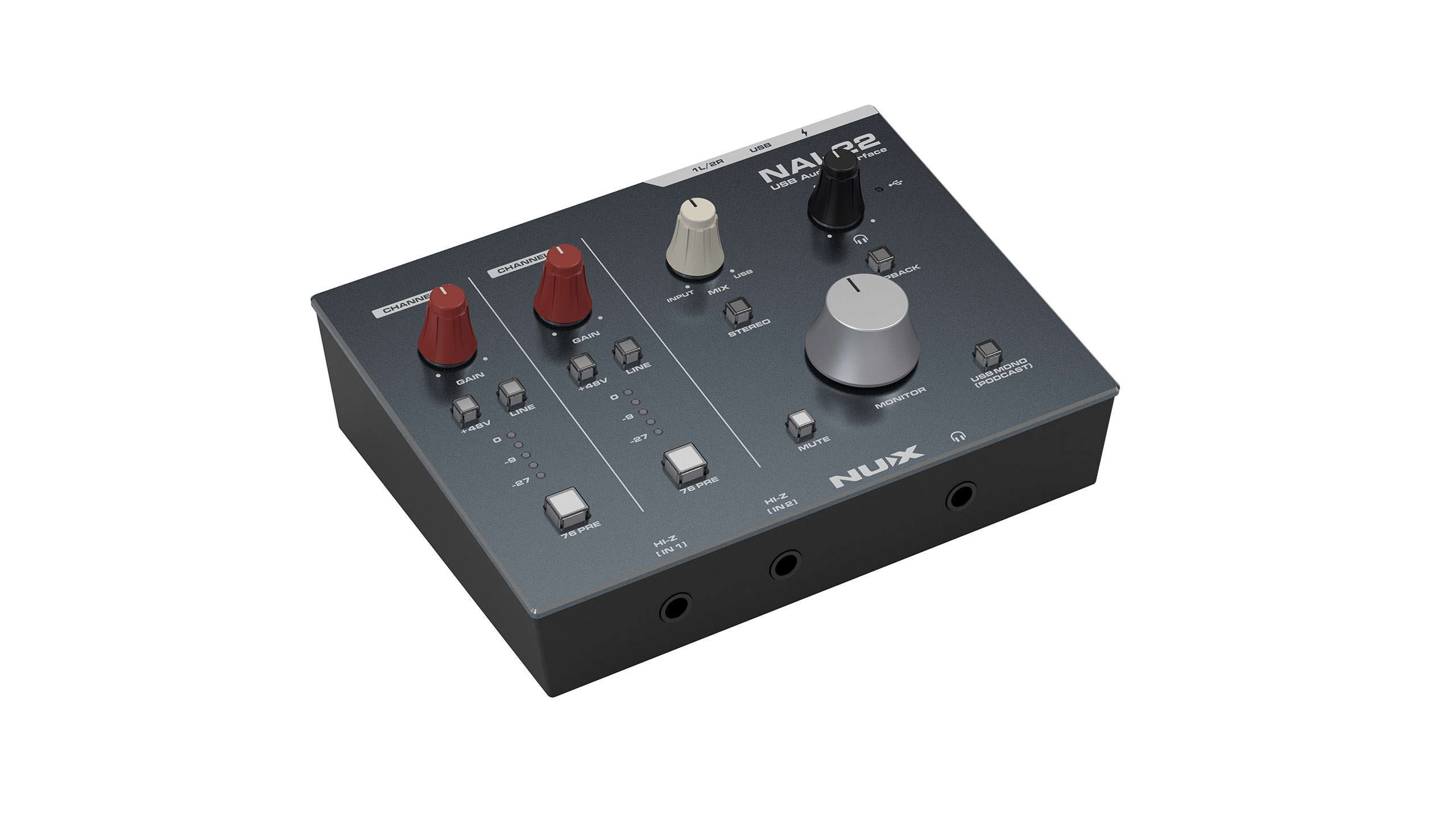

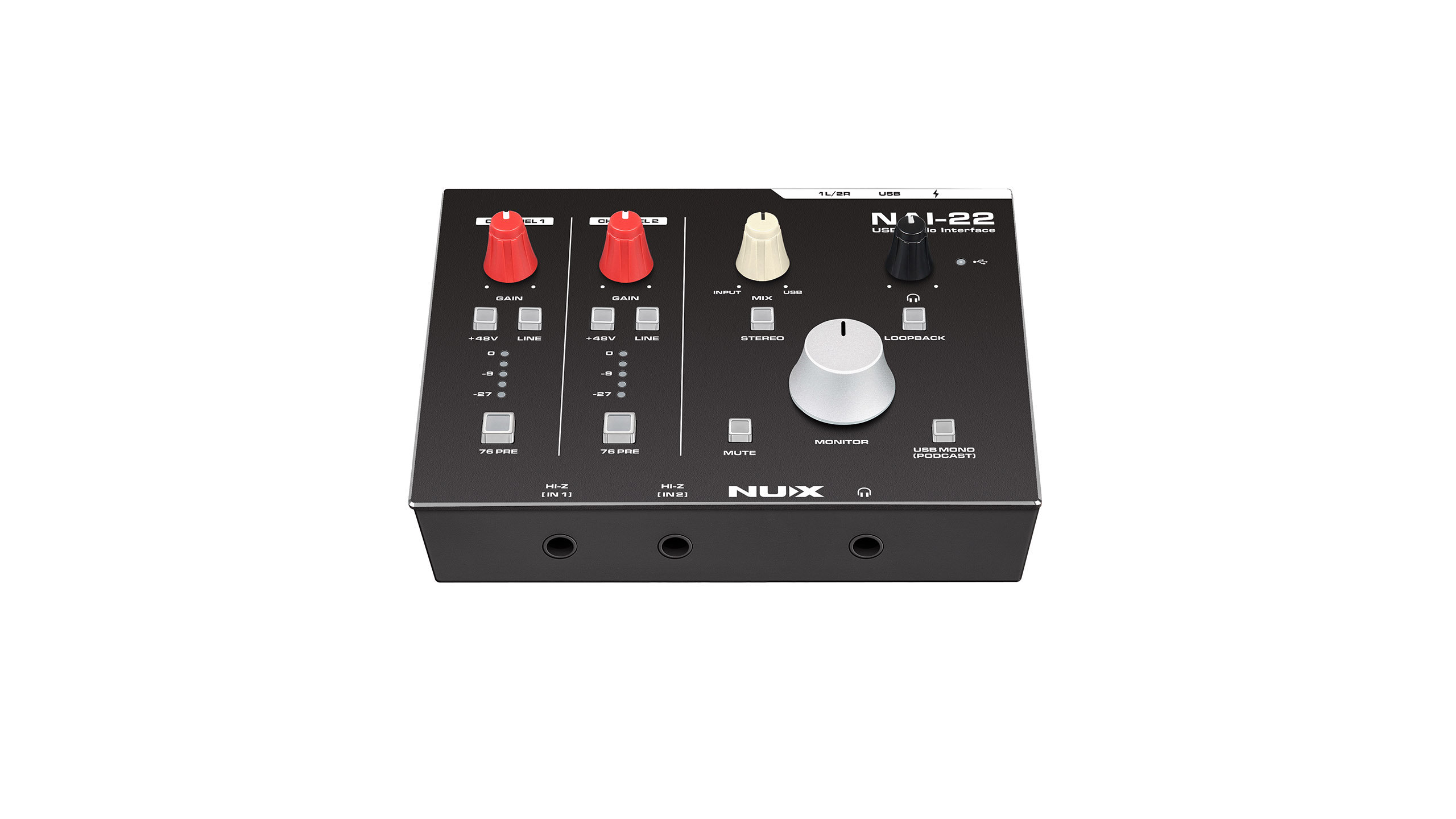

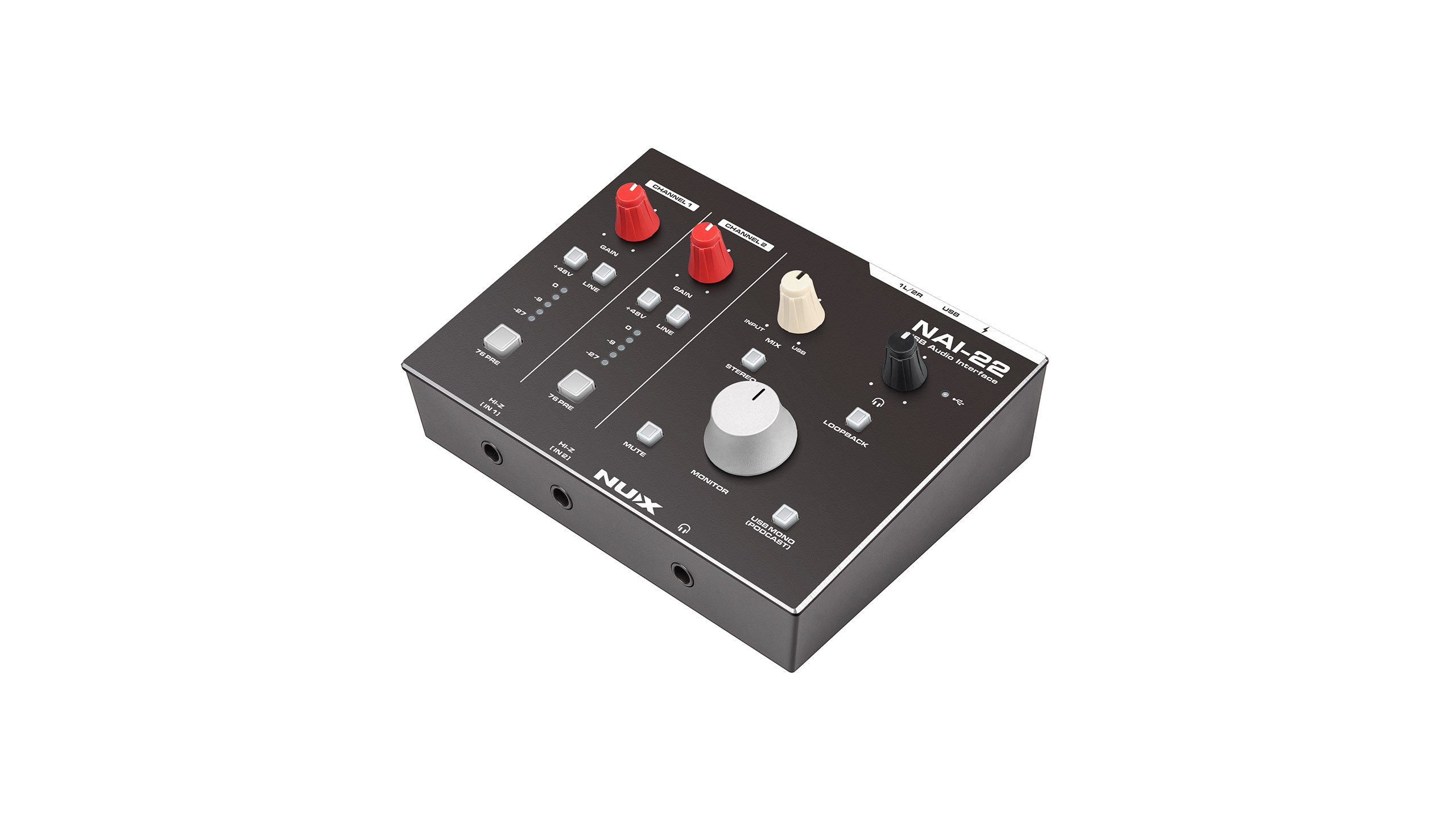

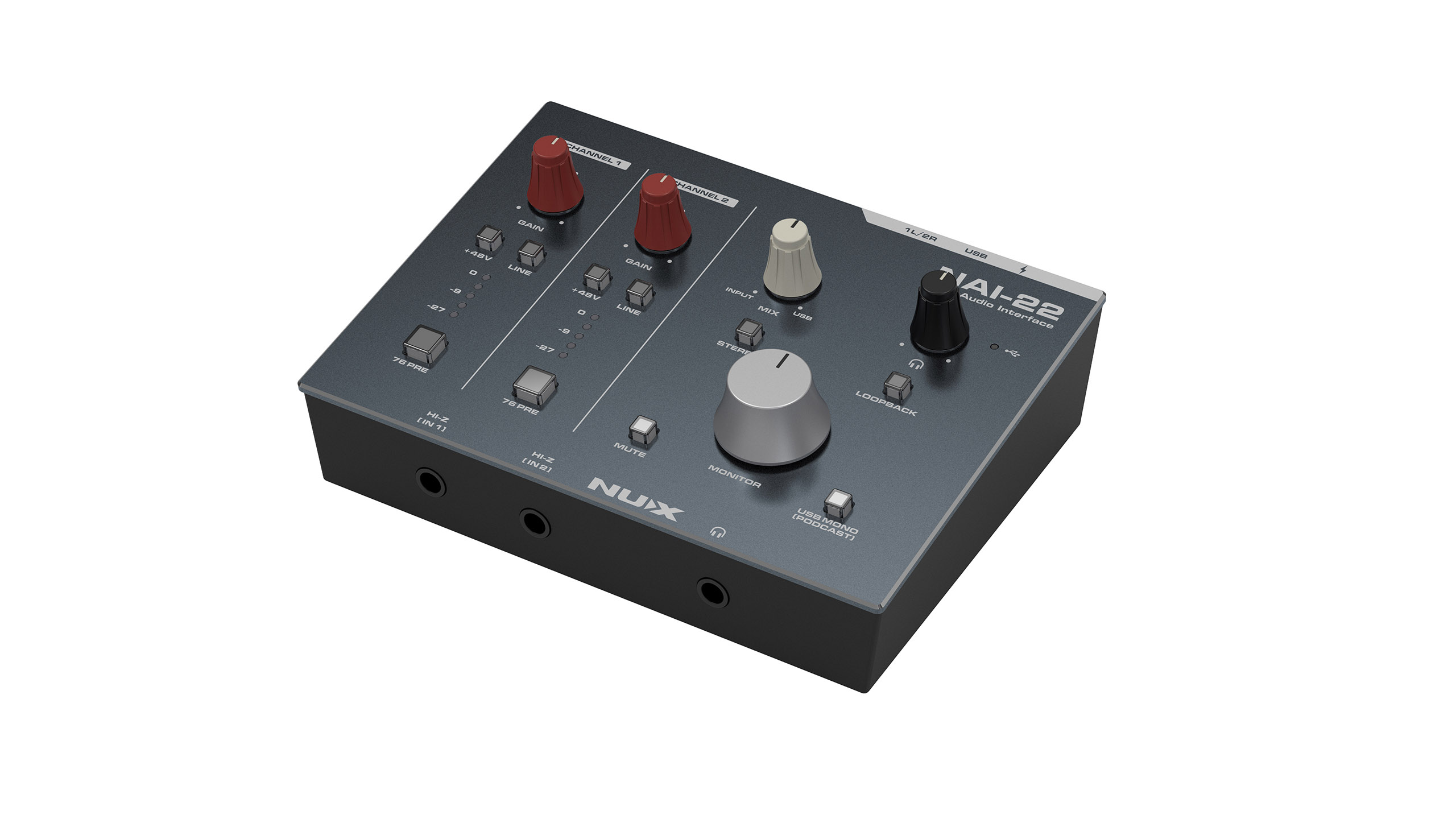

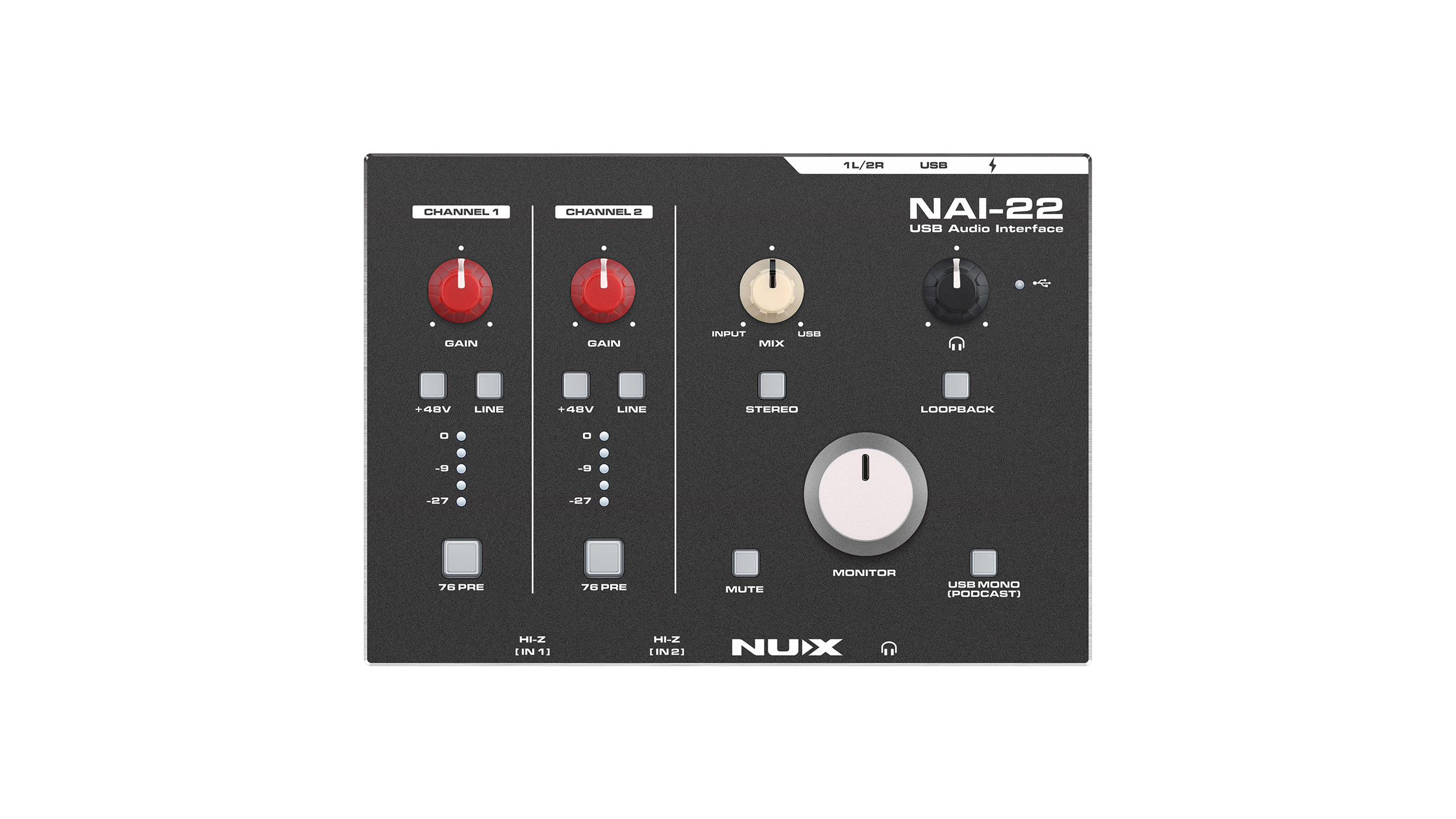

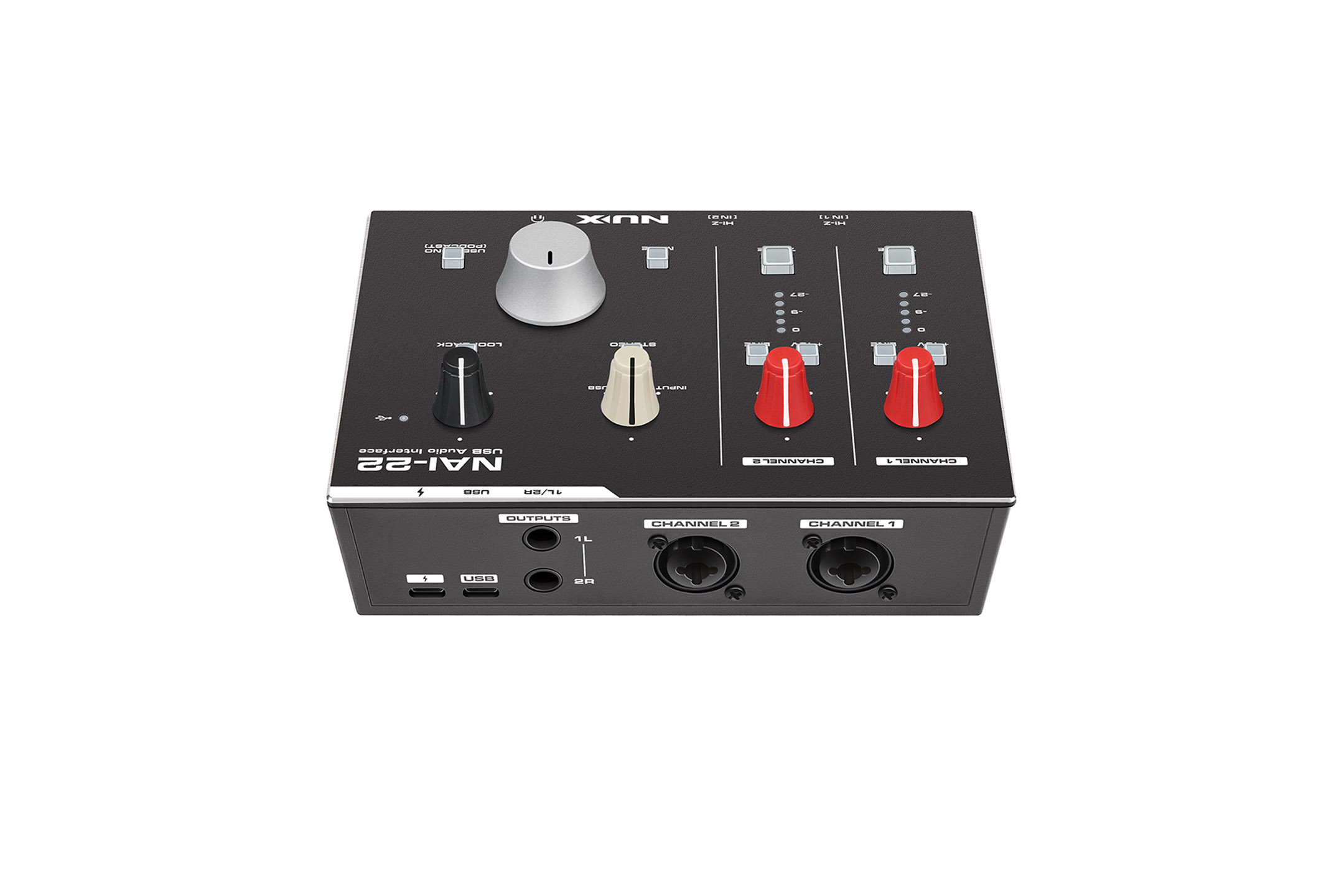

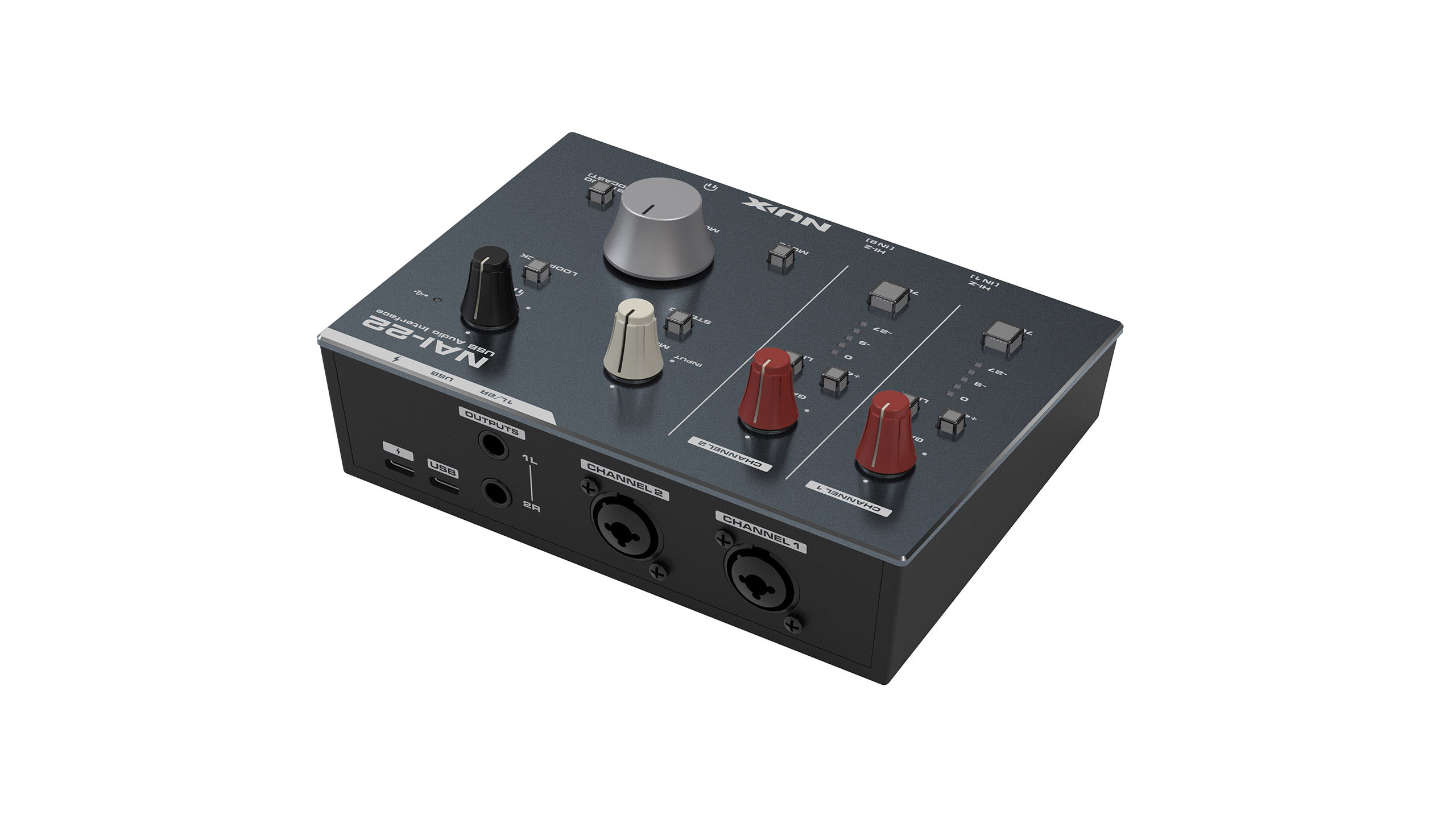

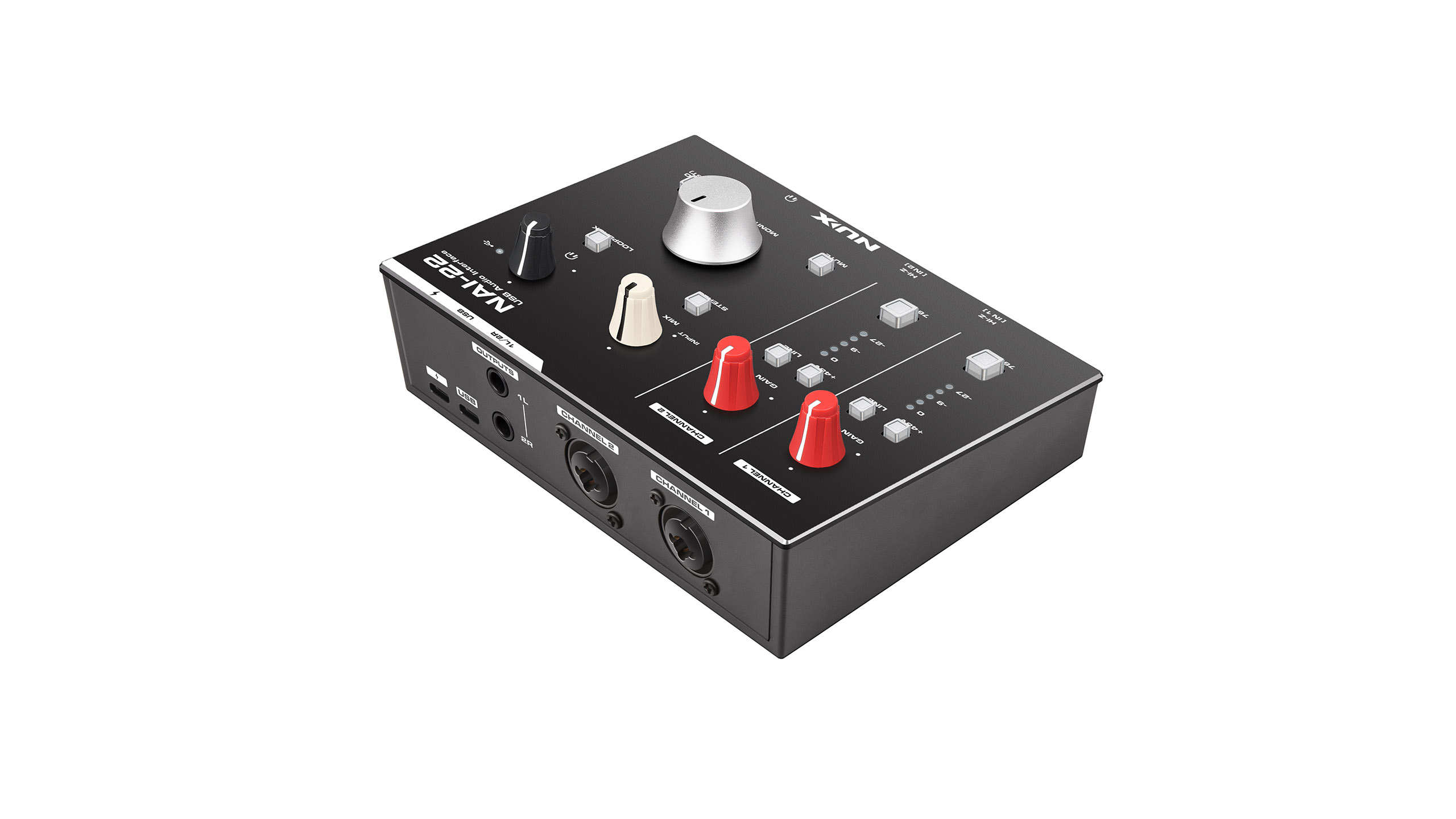

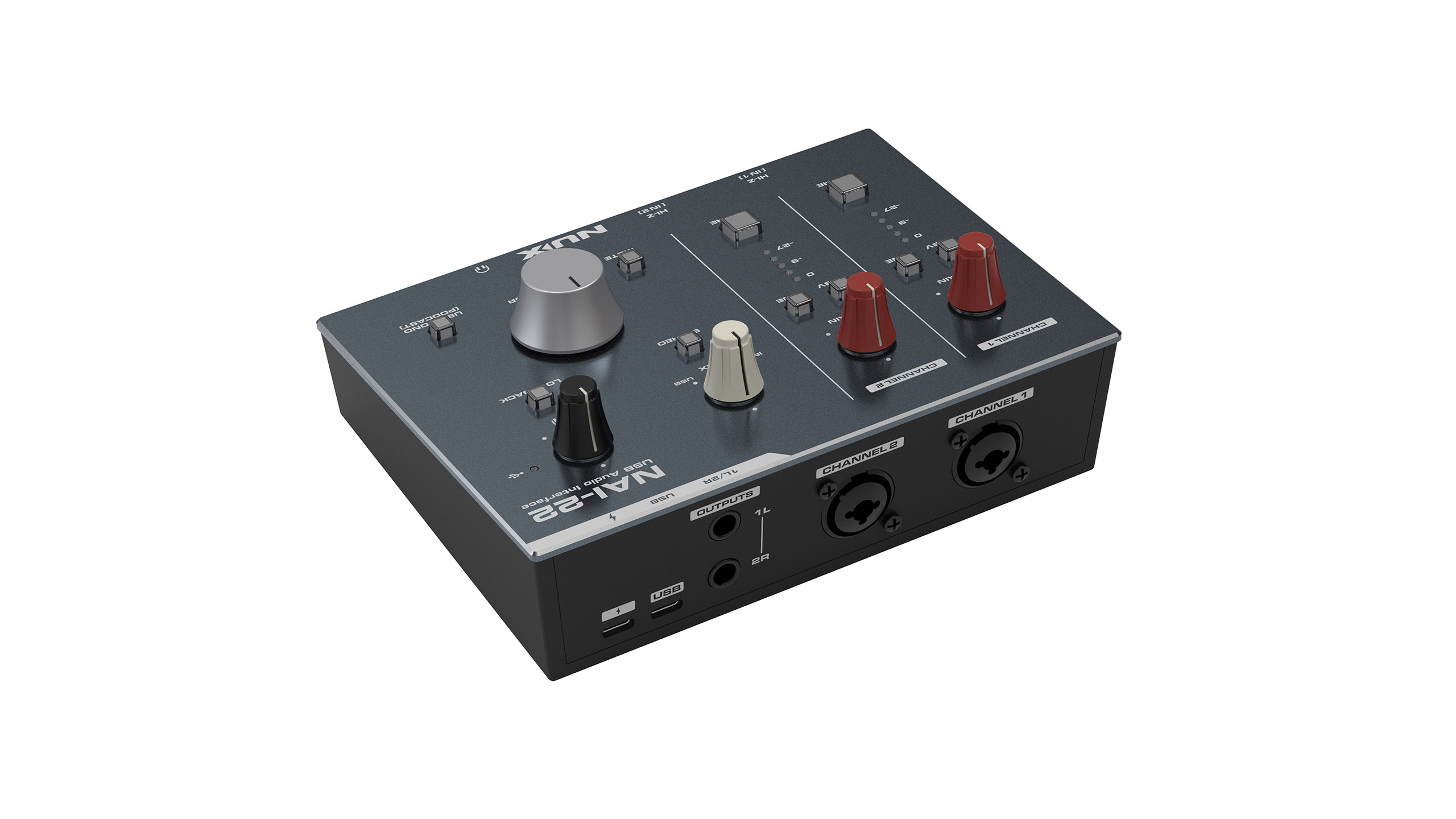

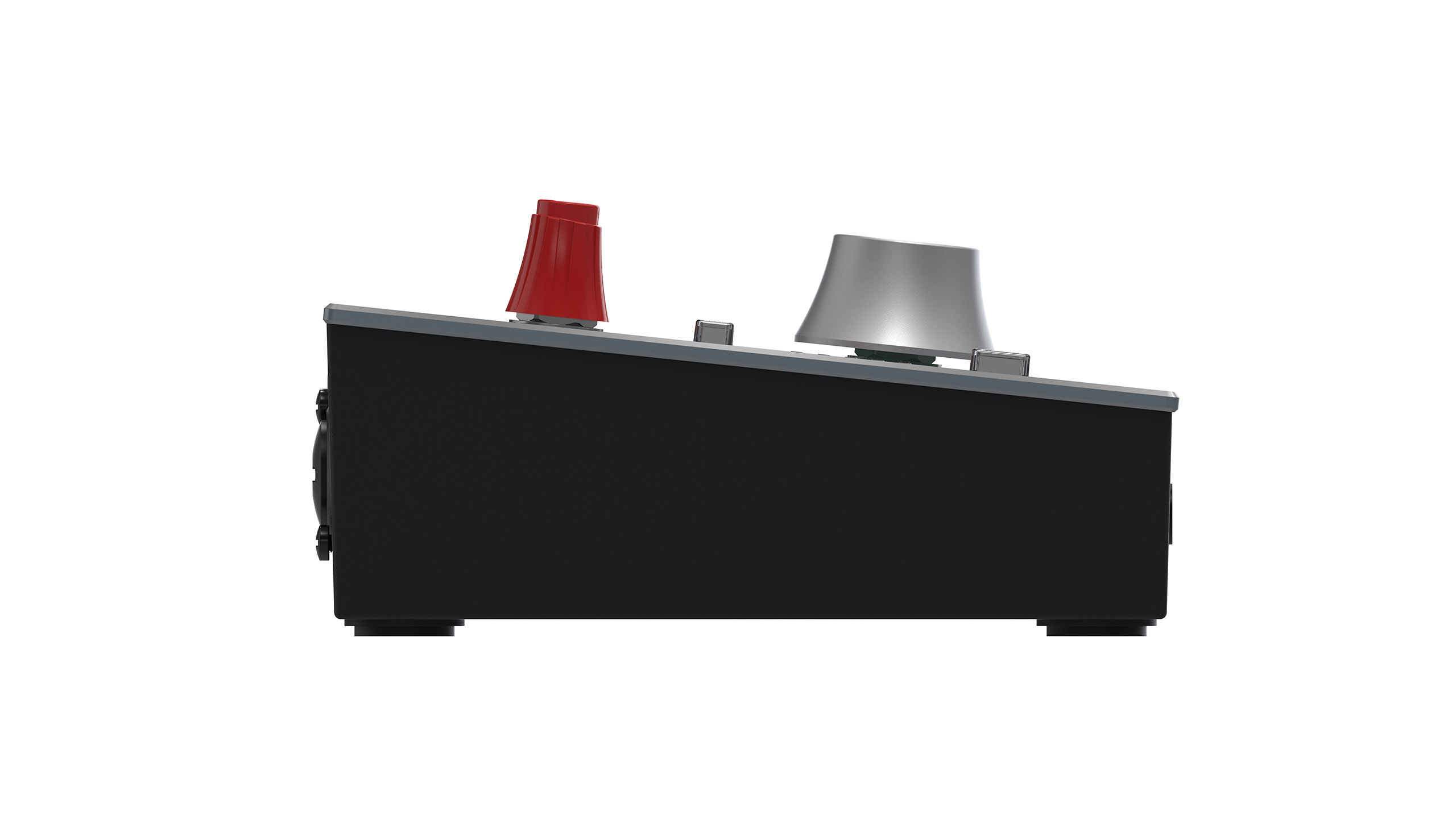

NAI-22
Drive Every Mic to Perfection with Class-A Preamps + 76PRE Boost
Experience crystal-clear, ultra-clean gain up to 71 dB — even the quietest dynamic mics sound full, detailed, and professional.

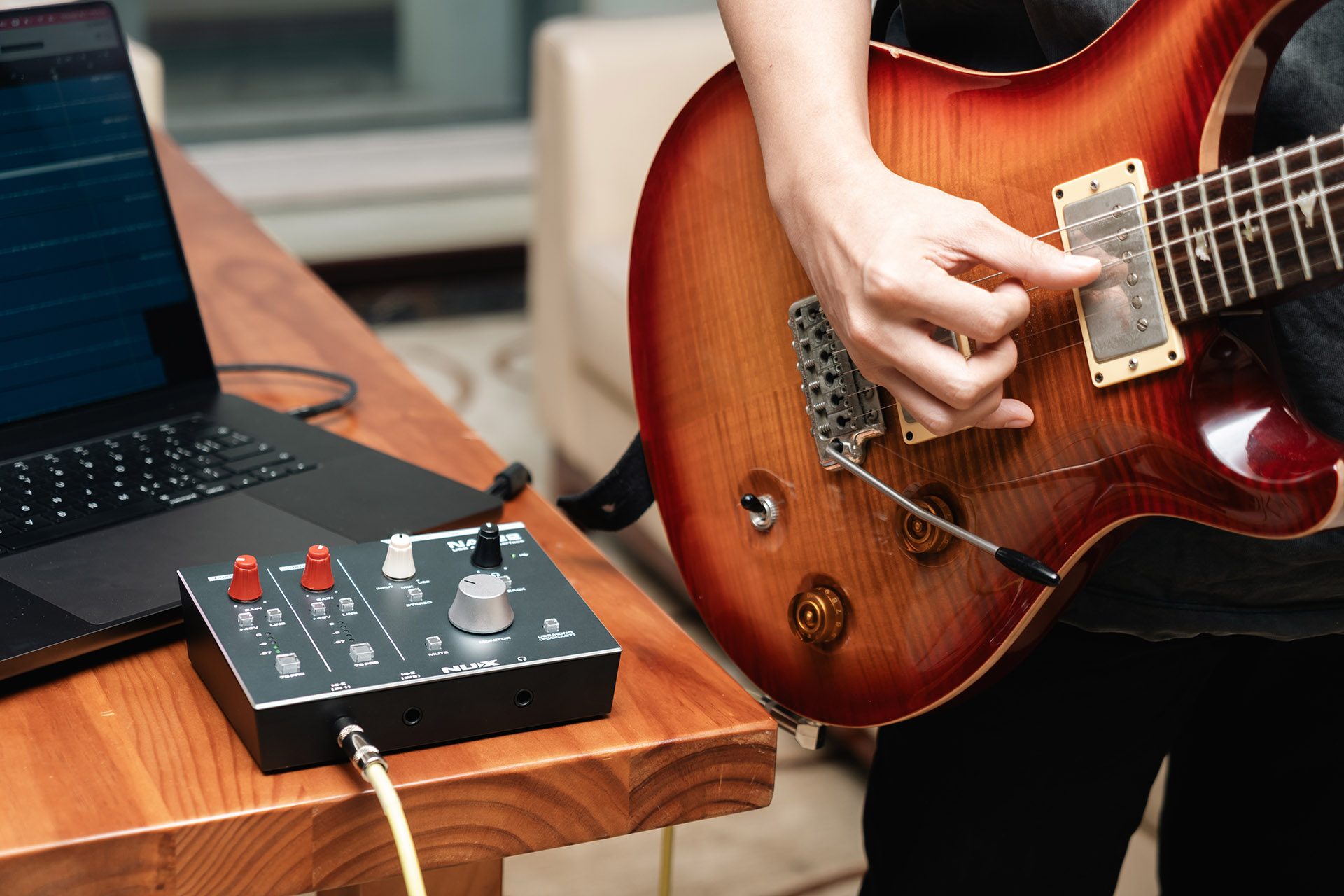

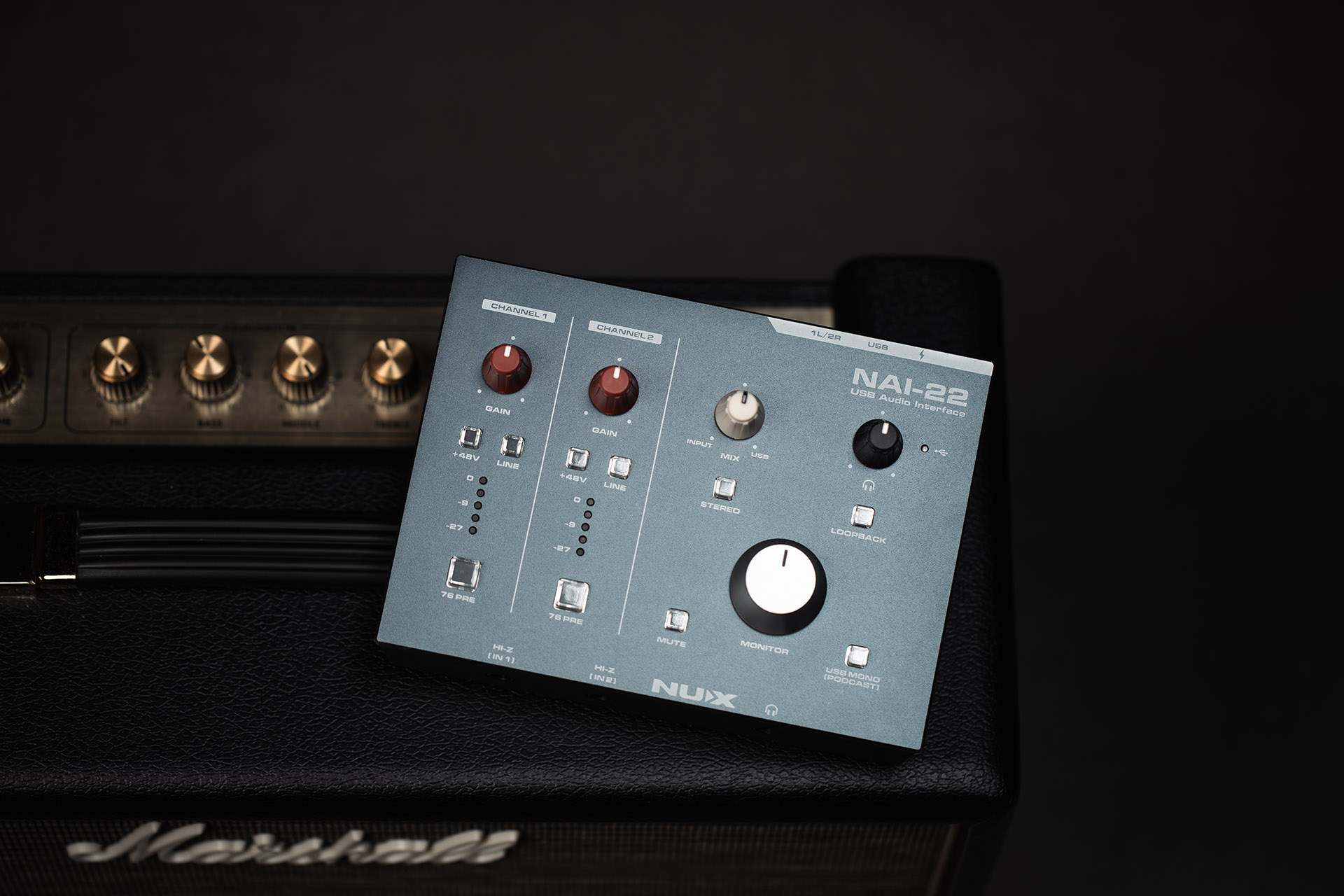

High-Impedance Input for Connecting Guitar or Bass, Delivering Authentic Tone
Two dedicated Hi-Z inputs capture every nuance of your instrument, making virtual amps and plugins respond naturally.
Hear Every Detail with Studio-Grade 32-bit / 192 kHz Audio
Record and monitor with exceptional fidelity, capturing subtle harmonics and full dynamic range for true studio-quality sound.

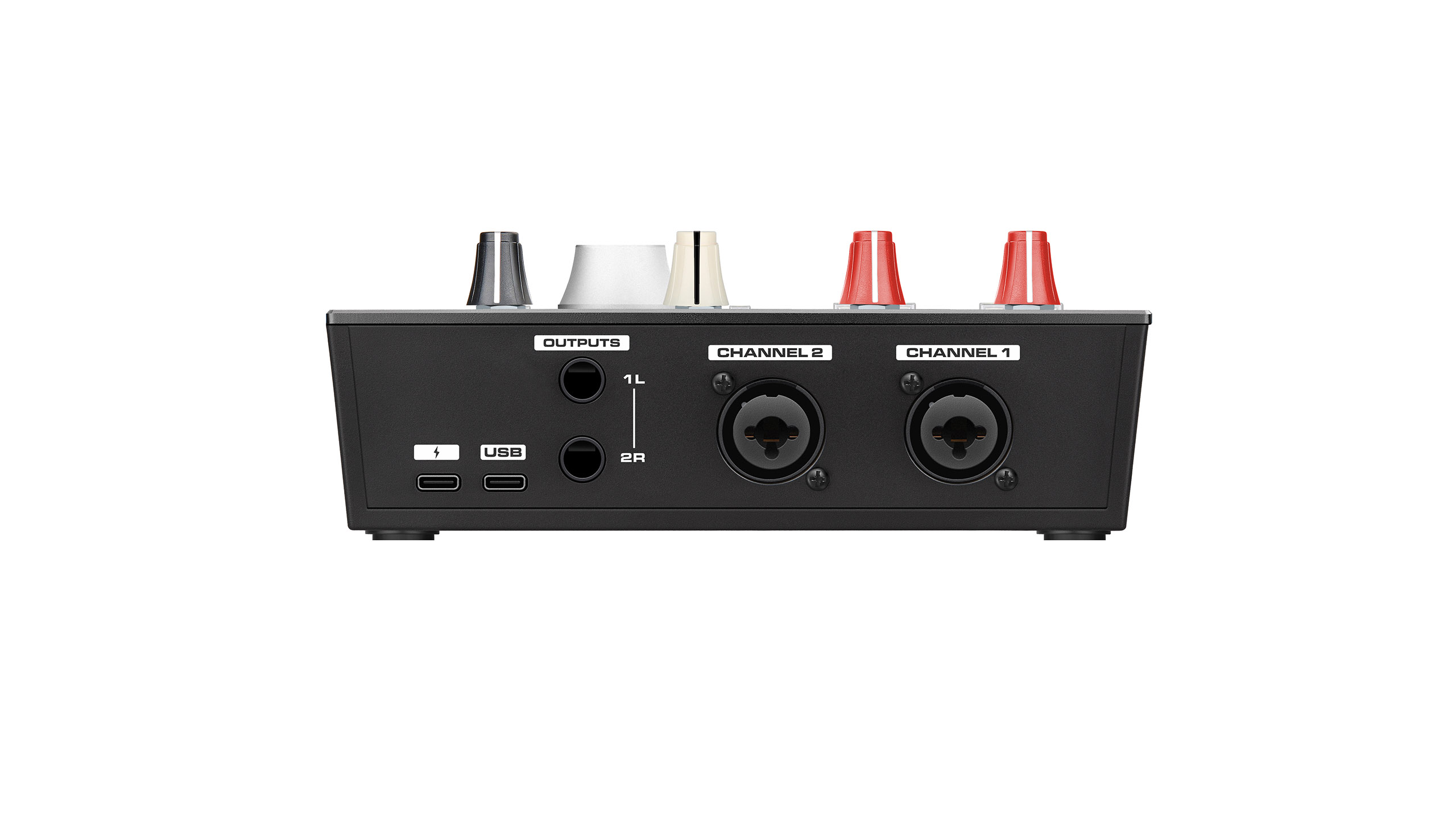

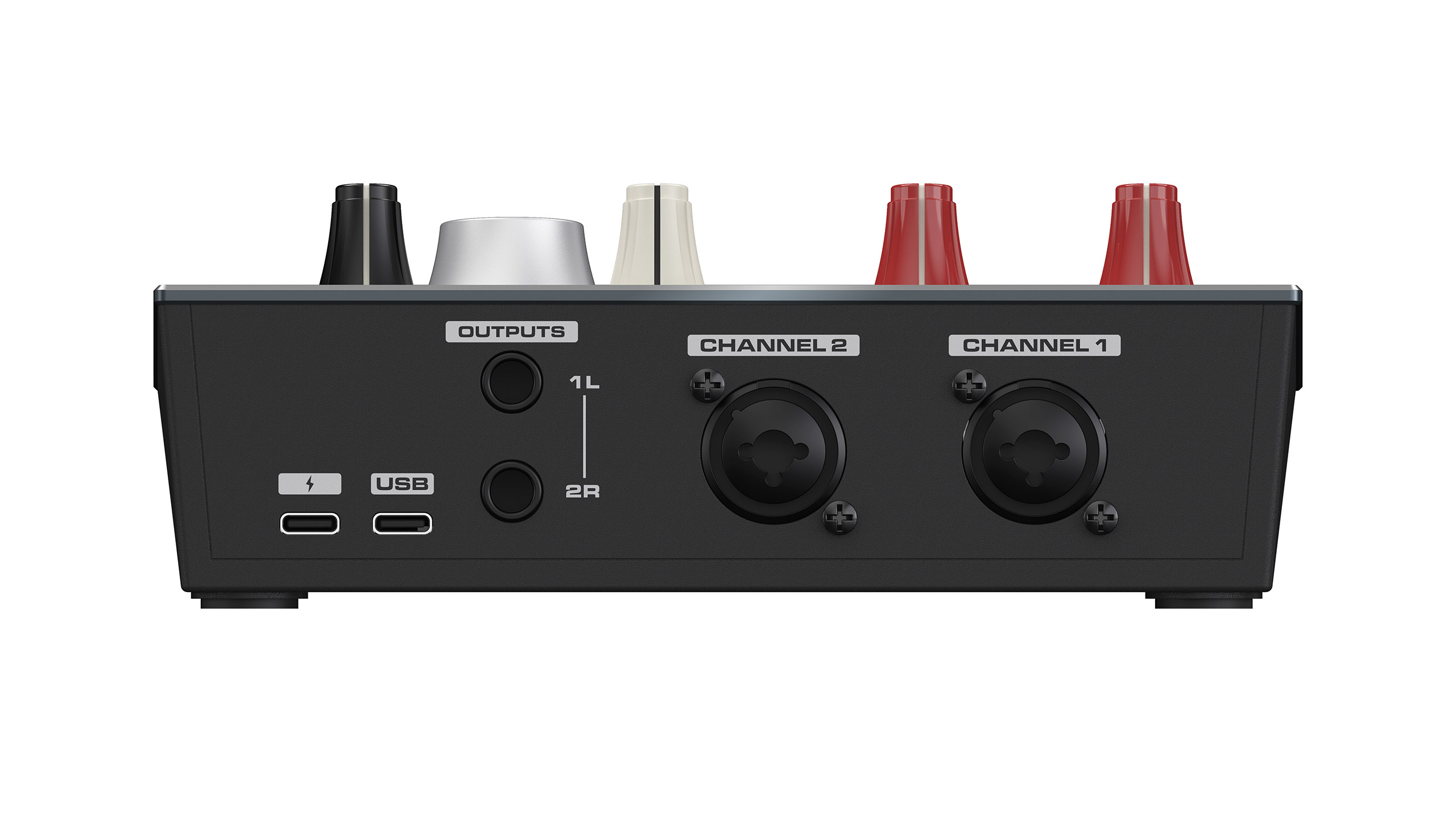

Connect Anything, Anywhere with Pro-Grade Neutrik I/O
Durable Neutrik XLR/TRS combo inputs for perfect compatibility with microphones and line-level devices. Each channel features independent 48V phantom power, input switch, and real-time level indicators to prevent signal overload and distortion, ensuring safe and professional recording.

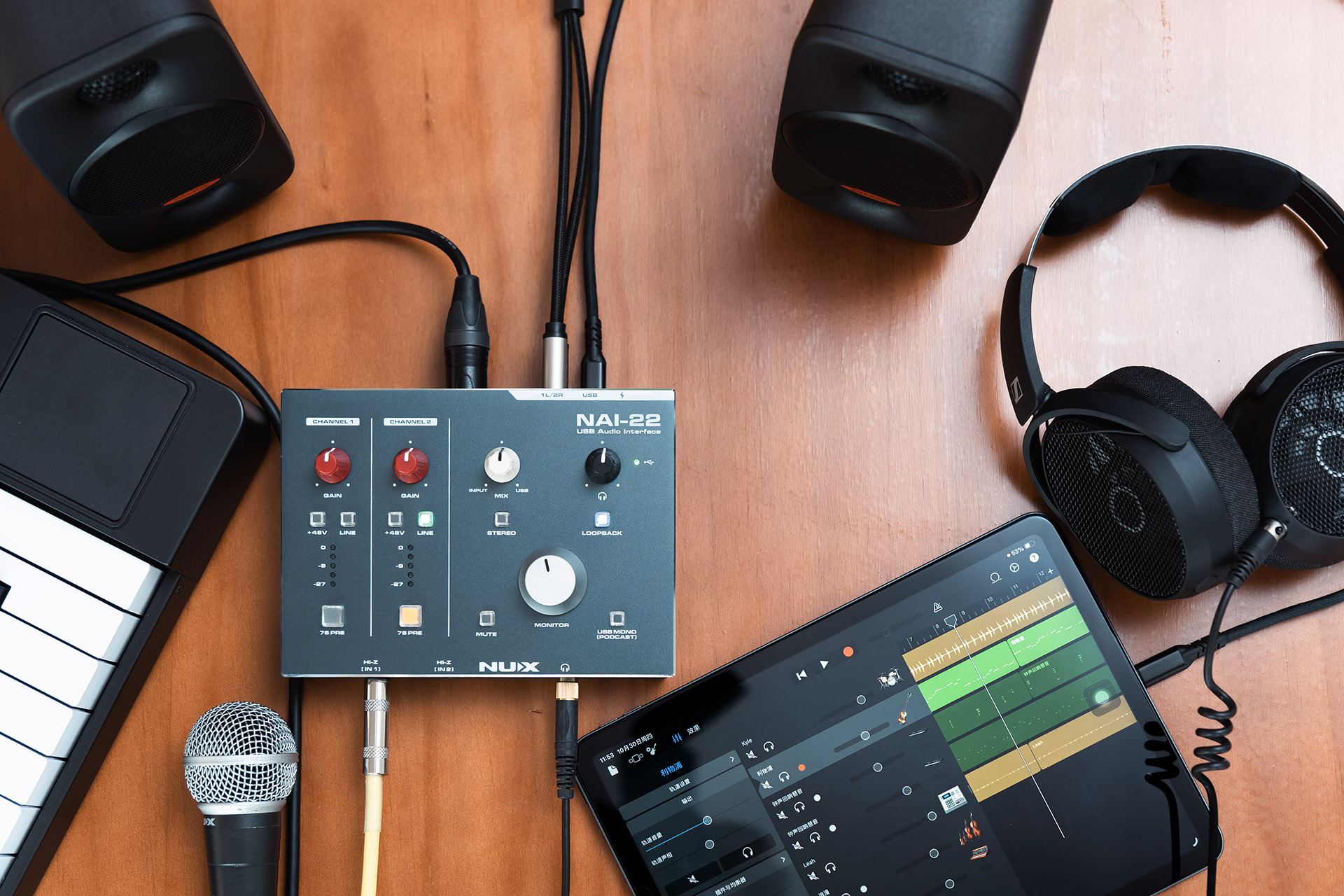

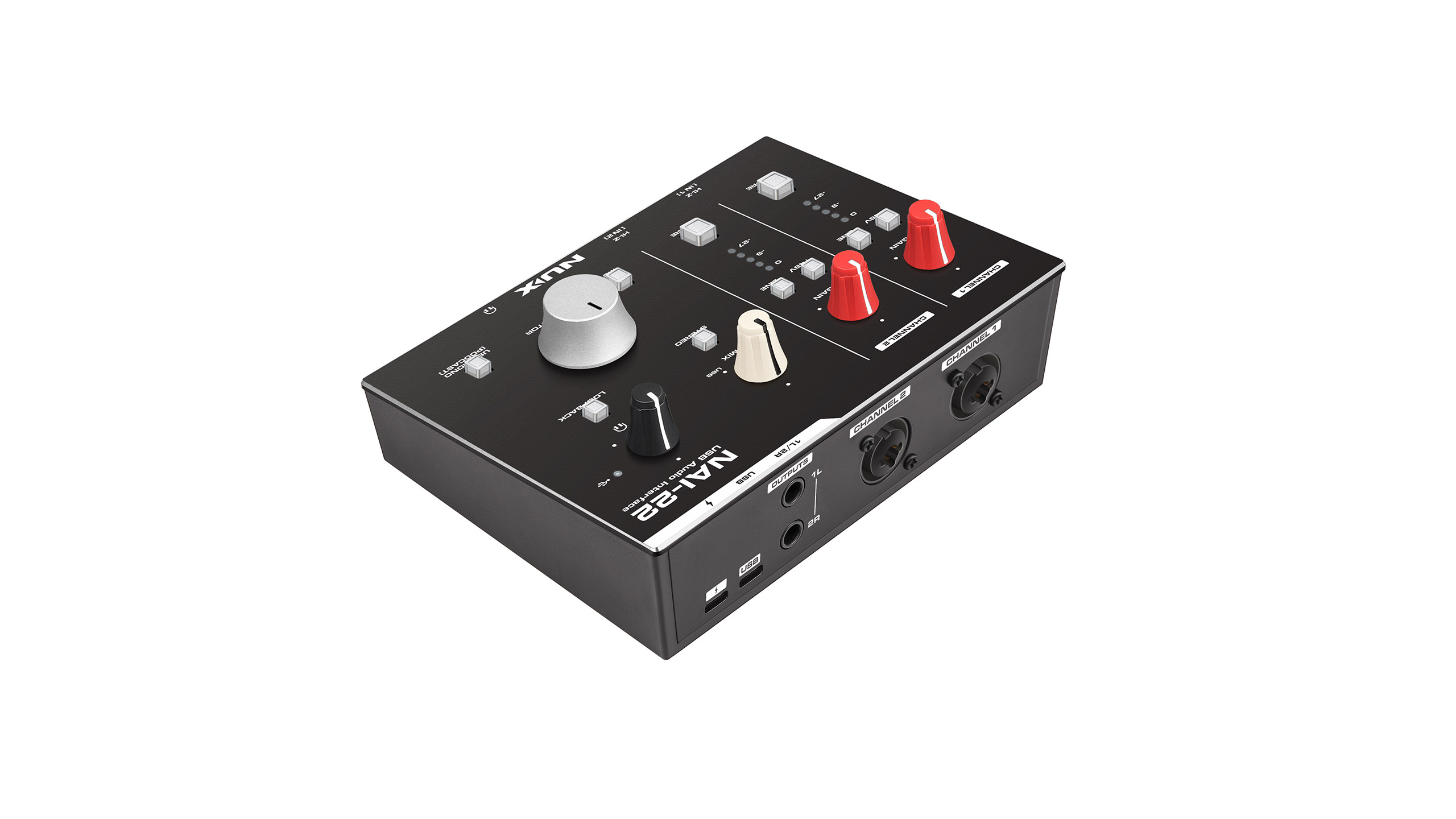

Dual USB-C Ports Ensure Uninterrupted Power for Mobile Creation
Equipped with dual USB-C ports and external power support, the NAI-22 connects directly to mobile devices like iPads and iPhones. It meets the demands of mobile recording, live streaming, and short-form video production, enabling high-quality content creation anytime, anywhere.
Stream, Podcast, and Loop Back Like a Pro

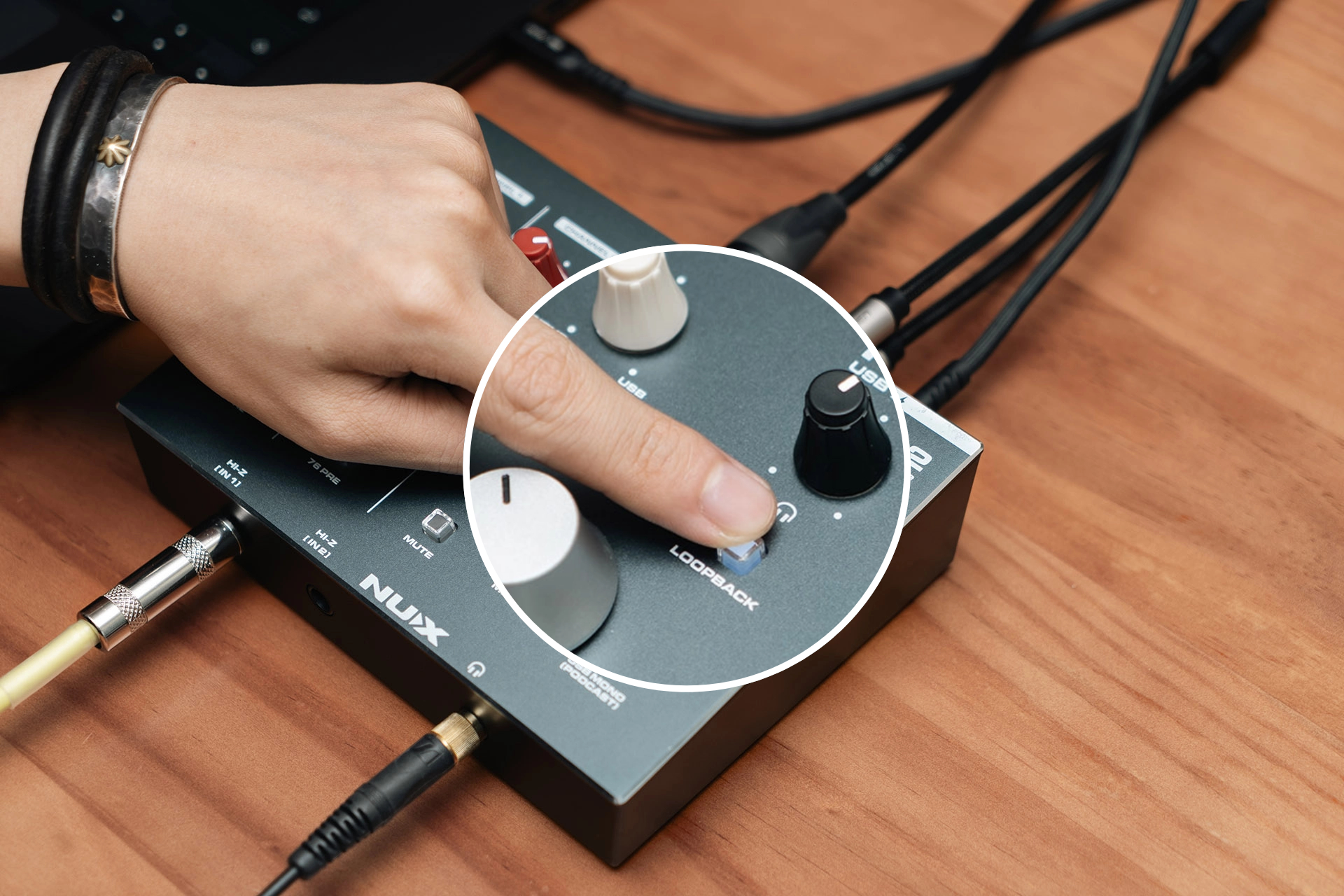

The built-in loopback function allows you to blend computer audio with microphone or instrument signals, enabling high-quality live streaming or recording even when working alone. The USB MONO mode ensures mono signals remain centered in the stereo field, making it ideal for single-device recording scenarios such as live streaming and podcasting.

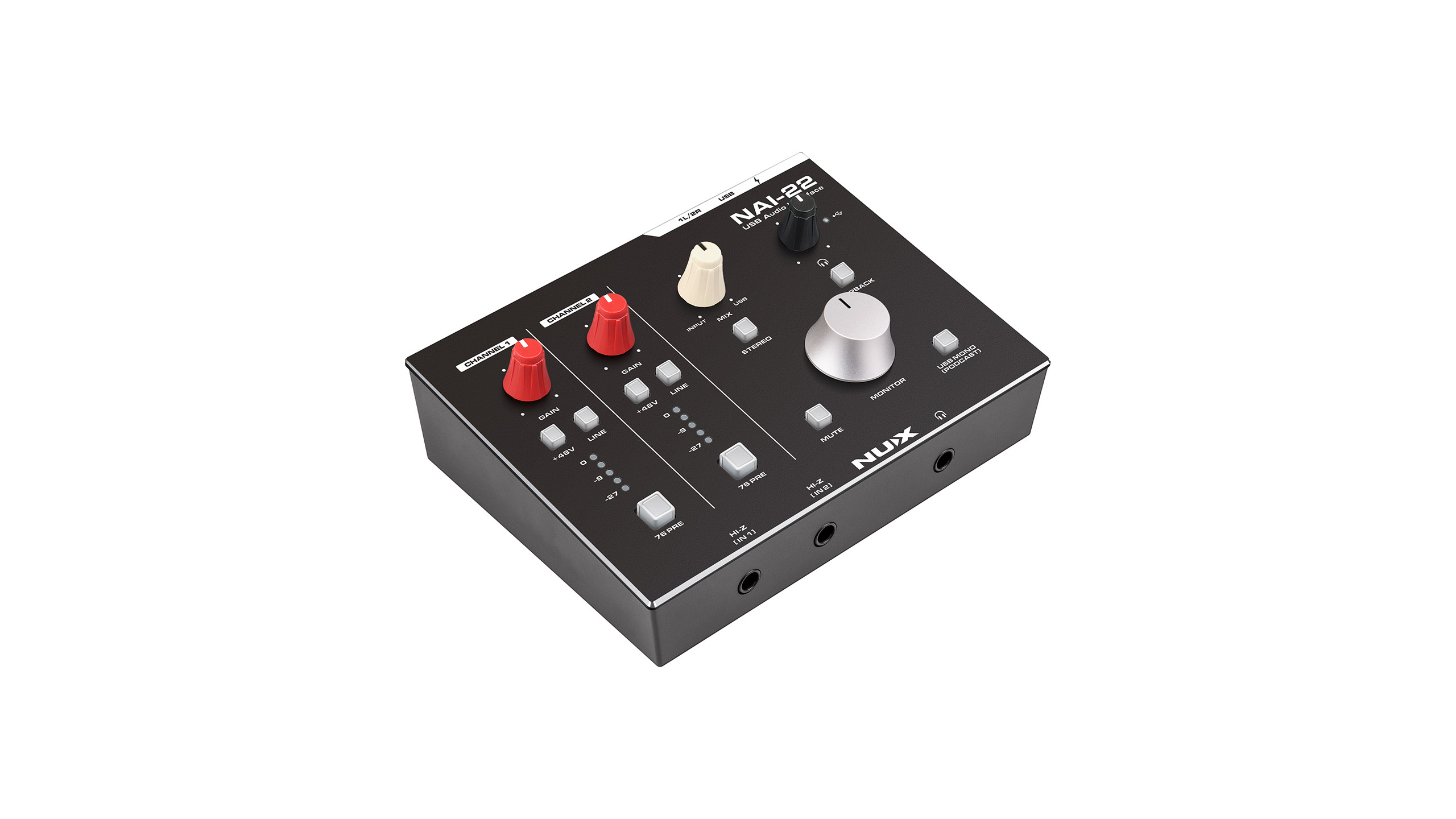

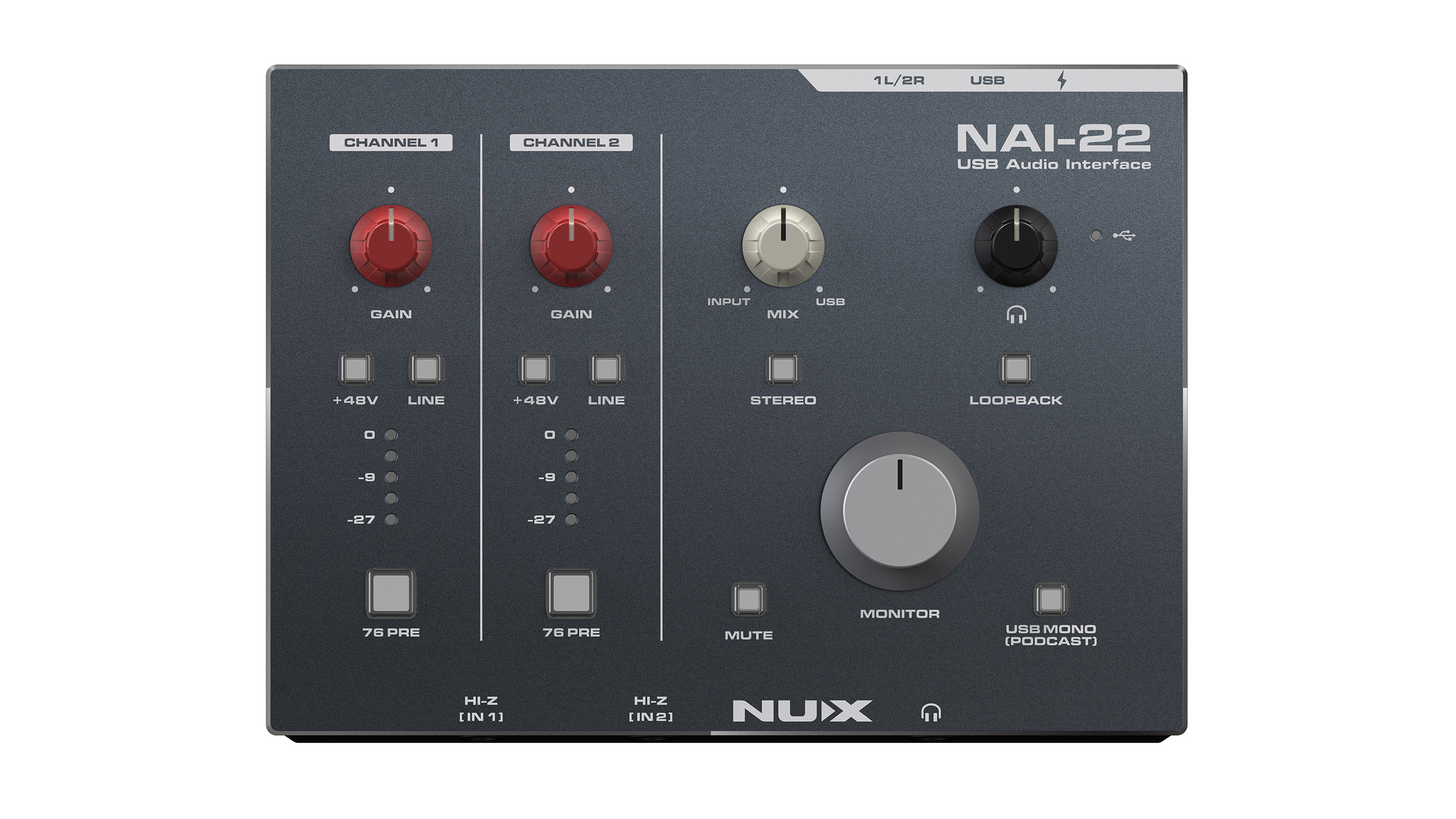

Flexible Monitoring Options for Exact Control over Your Sound

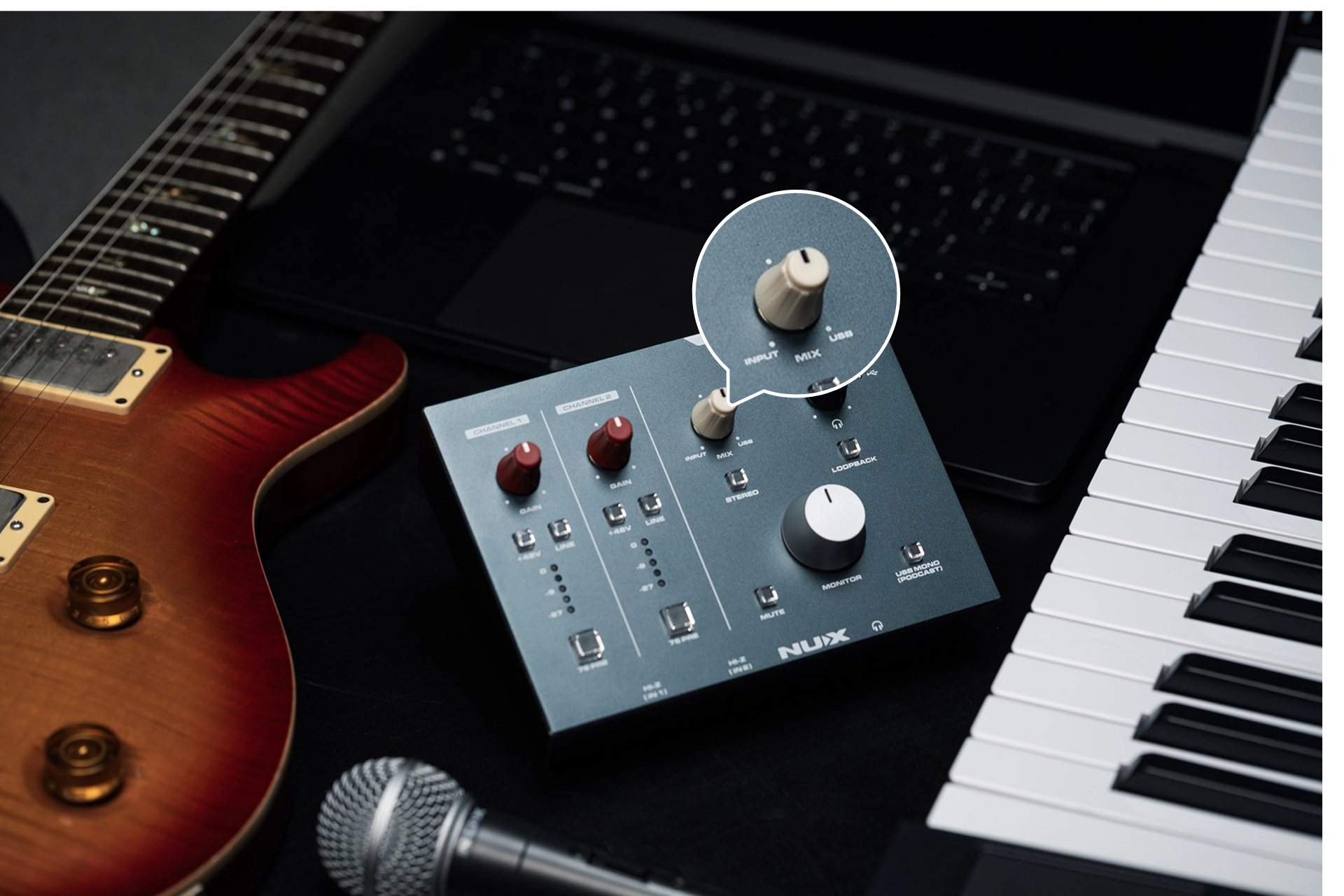

The precise MIX knob enables real-time adjustment of your monitoring blend, allowing you to quickly find the perfect balance between your performance and backing tracks. A one-touch mute function protects your monitoring equipment, while the high-gain headphone amp and balanced outputs combine to deliver a clean, accurate listening environment.
Free Cubase License Card Included, Unlock Unlimited Creative Possibilities
Get a complimentary Cubase license card and easily start your music creation journey. Unlock powerful recording and editing features to enhance your creative workflow and enjoy a professional-grade software experience.

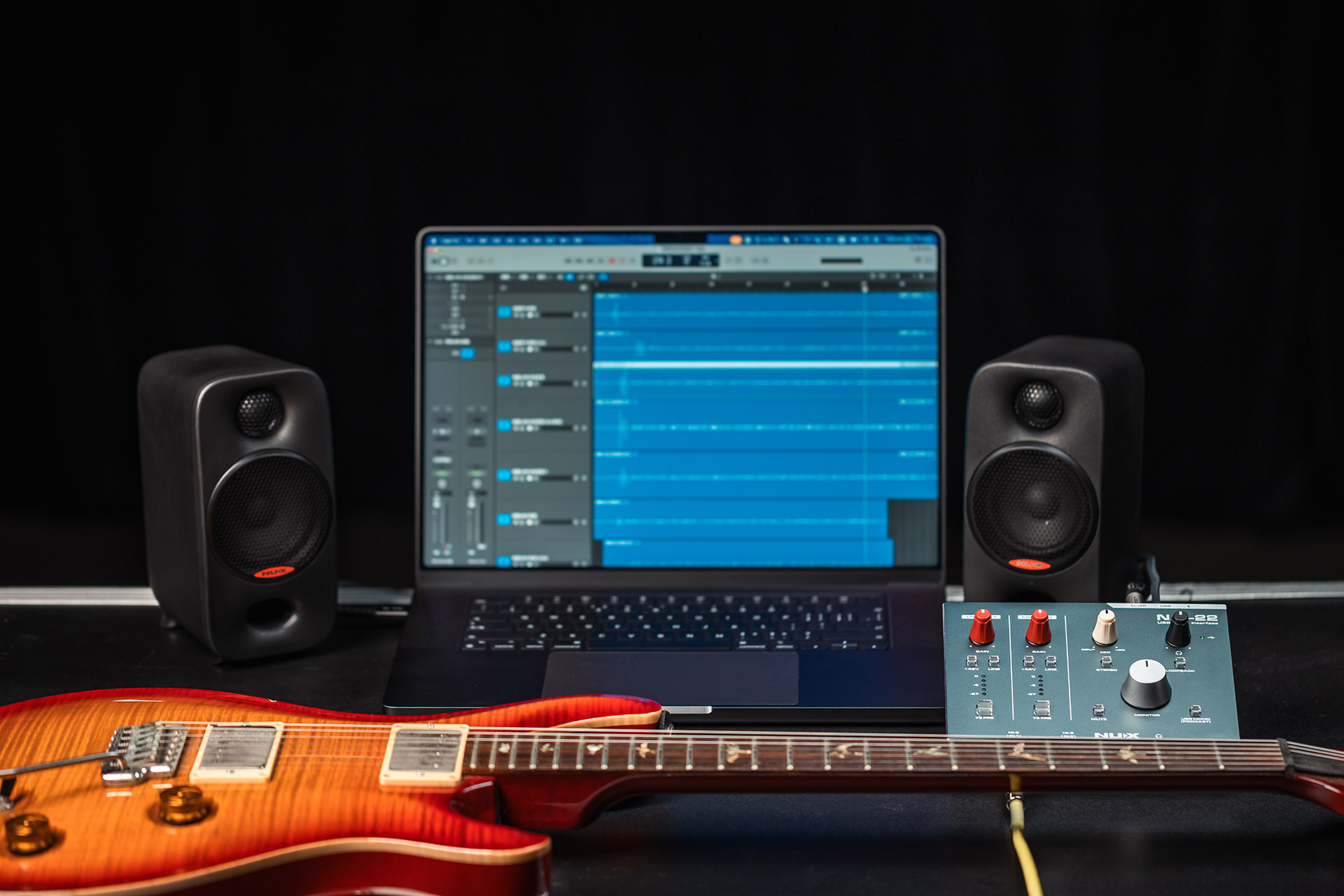

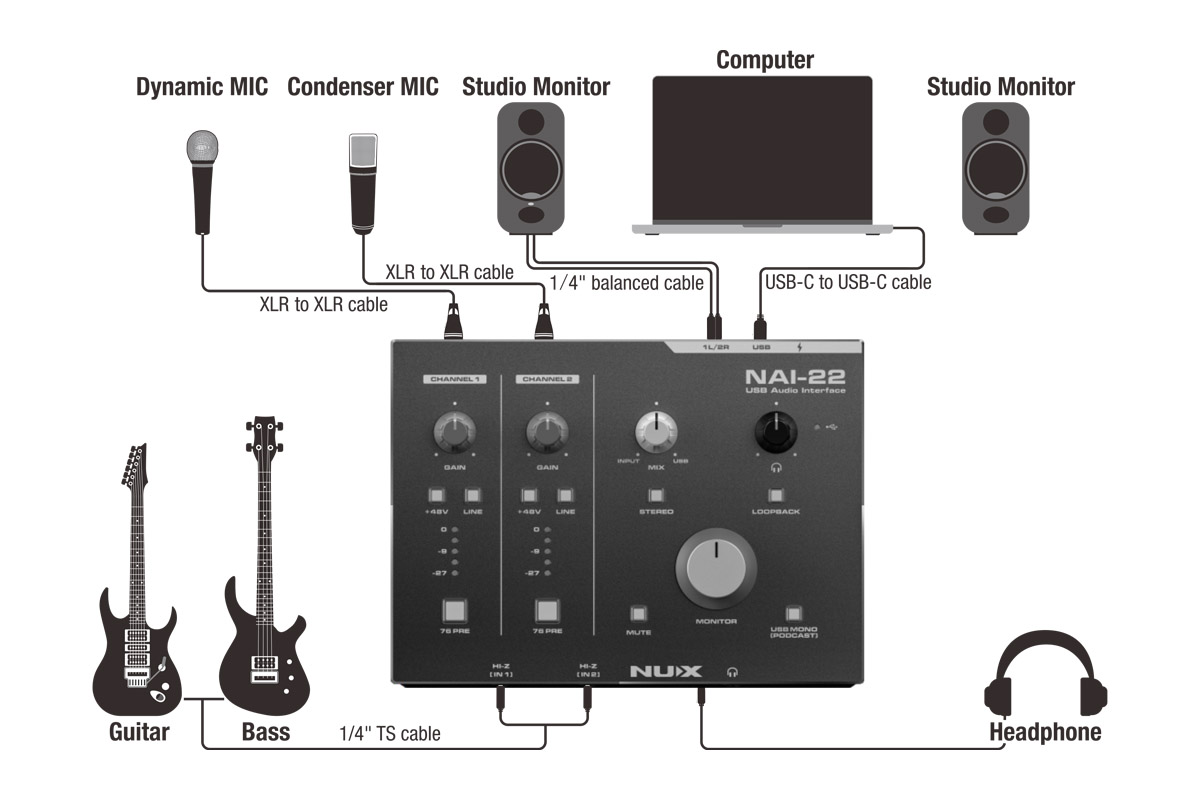

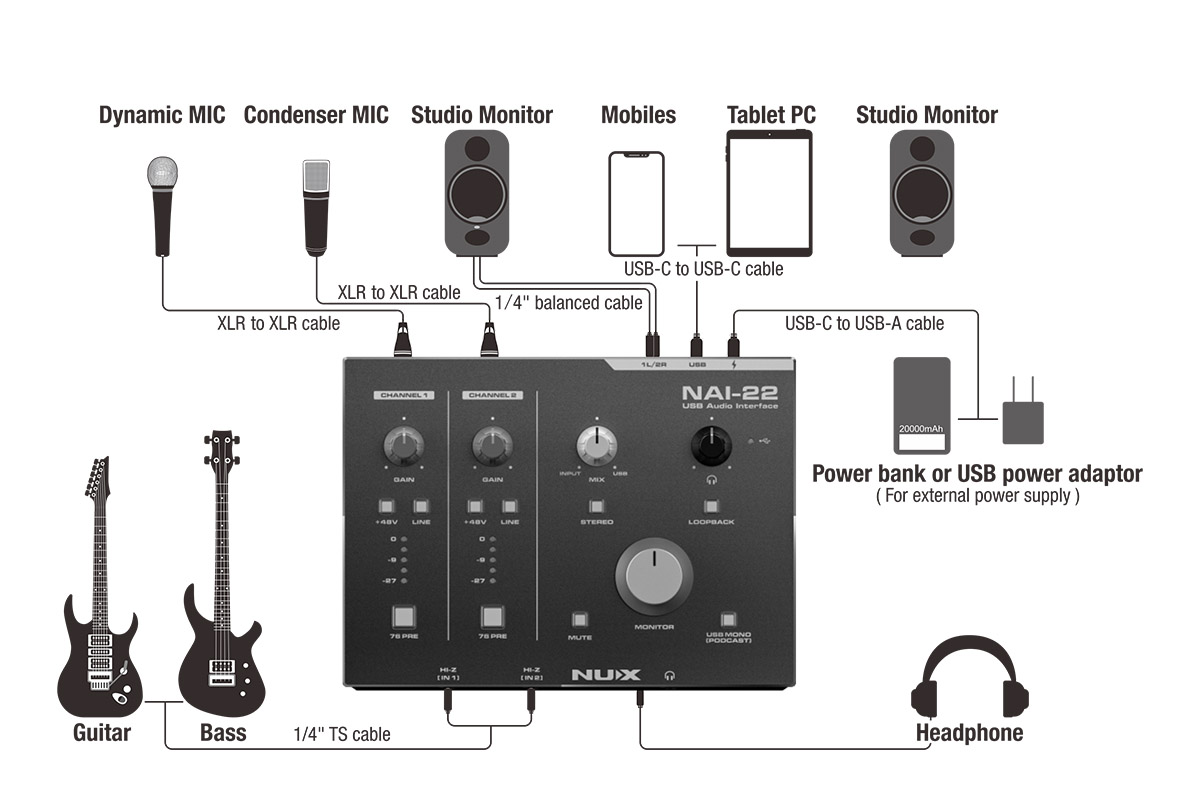

Widely Compatible with Various Creative Scenarios, Meeting Your Diverse Needs
From professional music production and live streaming to home recording practice, the NAI-22 integrates seamlessly into any creative workflow with its exceptional compatibility and sound quality, making it your reliable and versatile audio interface solution.
Manuals
Firmwares
Softwares
Drivers
Apps
– 2-in / 2-out USB audio interface with 32-bit / 192kHz support
– Two Class-A mic preamps with discrete transistors and a 76PRE booster circuit, providing up to 71dB of clean gain for exceptional microphone performance
– Two Hi-Z instrument inputs optimized for VST plug-in users
– Neutrik XLR/TRS combo inputs with independent 48V phantom power and line input switching
– Dual USB-C ports with external power support for mobile production
– Loopback and USB MONO functions for streaming and podcasting
– MIX knob for input/playback monitor balance
– Dedicated Mute button to prevent pop noise during cable changes
– TRS balanced outputs and high-gain headphone amplifier
MIC IN
– Dynamic Range: 113dB (A-weighted)
– Frequency Response: 20Hz – 20kHz, ±0.1dB
– THD+N: <0.002% @ -1dBFS (at minimum gain)
– EIN: -125dBu (A-weighted)
– Max Input Level: +6.8dBu (at minimum gain)
– Gain Range: 5.4 – 63dB
Input Impedance: 2.4kΩ
LINE IN
– Dynamic Range: 112dB (A-weighted)
– Frequency Response: 20Hz – 20kHz, ±0.2dB
– THD+N: <0.003% @ -1dBFS (at minimum gain)
– Max Input Level: +26dBu (at minimum gain)
– Gain Range: -12.6 – 45dB
Input Impedance: 21kΩ
HI-Z
– Nominal Input Level: -10dBu
Input Impedance: 1MΩ
– LINE OUT 1L / 2R
– Dynamic Range: 112dB (Balanced, 200kΩ, A-weighted)
– Frequency Response: 20Hz – 20kHz, ±0.1dB
– THD+N: <0.002% @ -1dBFS
– Max Output Level: +18dBu (Balanced, 0dBFS)
– Output Impedance: 240Ω
HEADPHONE OUT
– Dynamic Range: 105dB (A-weighted)
– Frequency Response: 20Hz – 20kHz, ±0.1dB
– THD+N: <0.005% @ -5dBFS
