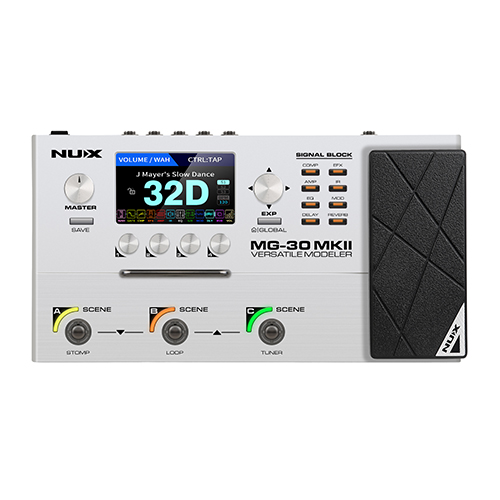

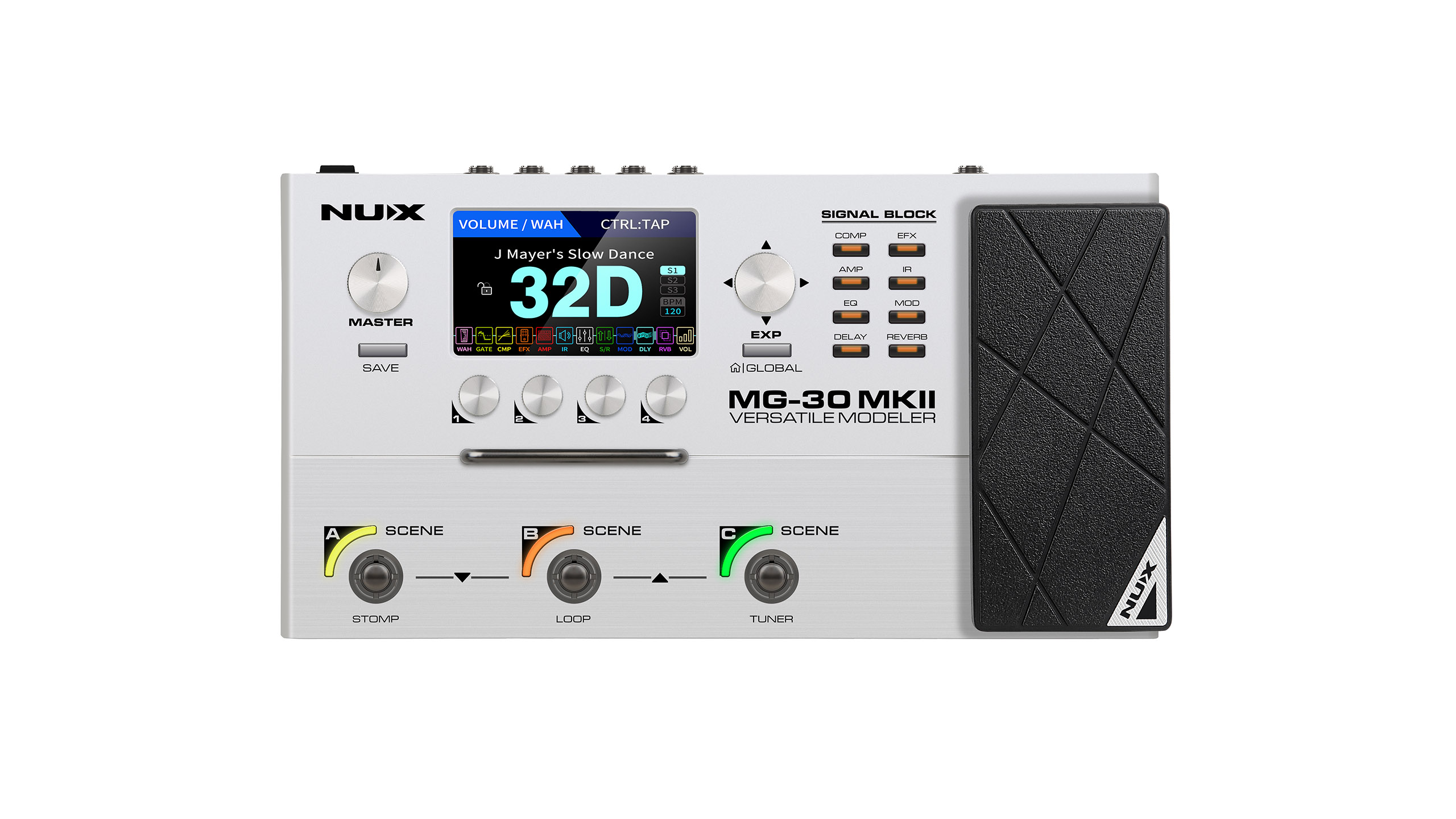

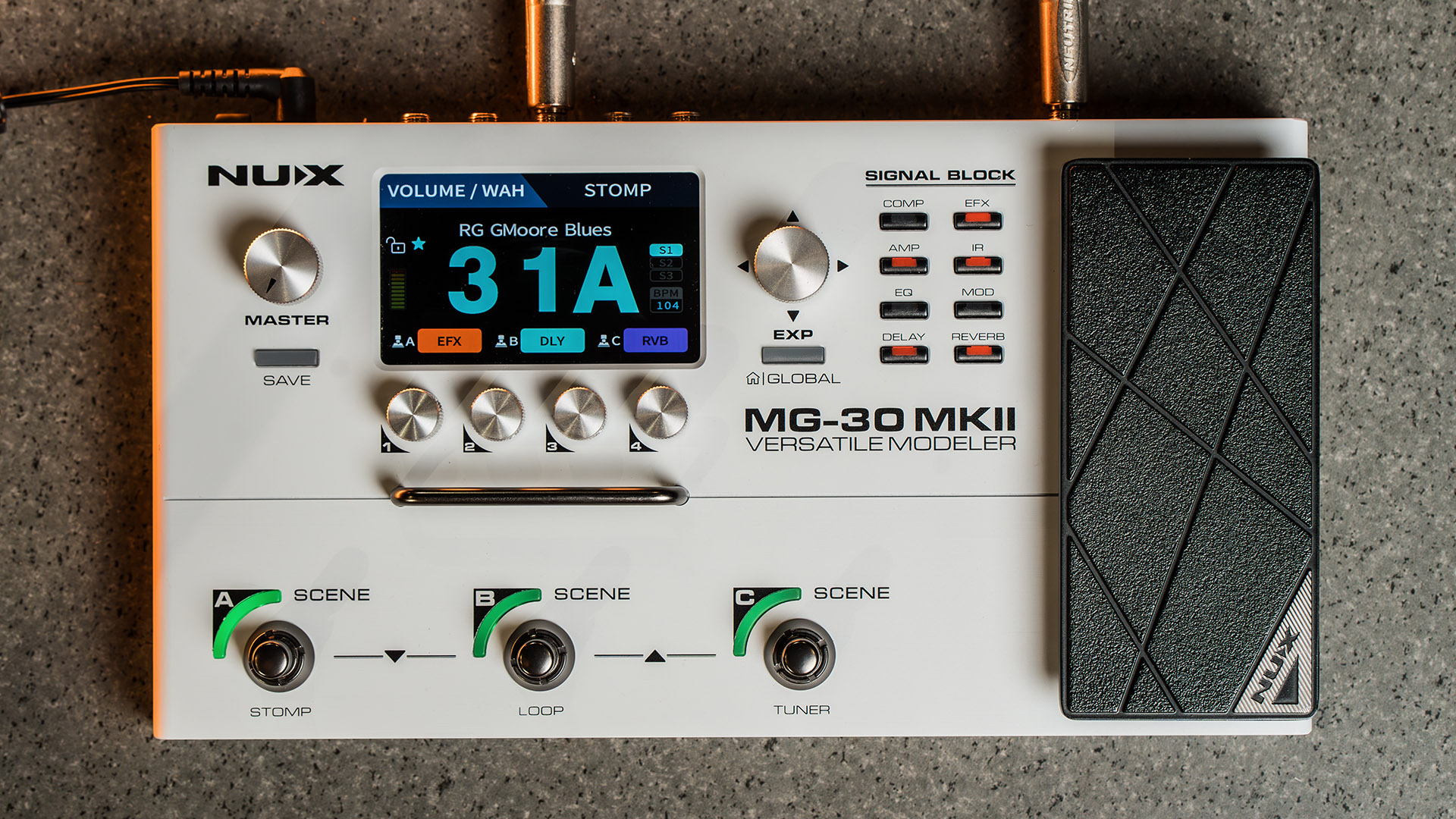

MG-30 MKII
Next-Generation Dual DSP Architecture for Stable, High-Load Performance
The MG-30 MKII is powered by a next-generation dual-DSP platform based on the NXP i.MX RT processing architecture, combining dual Arm Cortex-M7 and Cortex-M4 cores working in tandem. This architecture provides significantly more headroom for the Gen 2 firmware, ensuring fast response and rock-solid stability even in complex parallel routing, multi-block processing, or high-demand performance setups—so you can focus on playing without compromise.
Dual-DSP Architecture
Twice DSP Headroom
Gen 2 Firmware
Supports TS/AC-2K White Box Amp Modeling, NUX IMAGE Capture File, and NAM Loader
The MG-30 MKII builds on NUX’s TS/AC-2K White-Box amp modeling engine and adds support for NUX IMAGE and NAM (Neural Amp Modeler) formats, allowing users to import third-party NAM profiles and IR files for expanded tonal flexibility and deeper customization.
It comes loaded with 28 electric guitar amp models, 5 bass amp models, and 2 acoustic amp models, along with up to 10 dedicated IMAGE/NAM user slots. From electric guitar to bass and acoustic tones, the system delivers a complete and open modern tone platform designed for maximum creative freedom.
28 Guitar Amp Models
5 Bass Amp Models
2 Acoustic Amp Models
10 IMAGE/NAM Slots
Native NAM A2-Lite Support
Fully Reconfigurable 12-Block Signal Chain for True Pedalboard Flexibility
The MG-30 MKII features 12 fully assignable signal blocks—WAH, CMP, GATE, EFX, AMP, IR, EQ, S/R, MOD, DLY, RVB, and VOL—offering flexible routing and parallel signal chain configurations.Whether you’re building a traditional pedalboard-style setup or a complex wet/dry rig, the system gives you complete freedom to design your own signal flow for recording, songwriting, and live performance.
Studio-Grade Dynamic Range and Realistic Amp Response
Equipped with a 32-bit high-resolution ADC/DAC conversion system and support for up to 1024-point high-resolution third-party IR loading, the MG-30 MKII delivers enhanced realism, spatial depth, and dynamic response. From clean articulation to high-gain punch and ambient depth, every detail is reproduced with greater natural feel and a more authentic amp-in-the-room experience.
32-bit ADC/DAC
1024-point IR loading
Simultaneous NAM and IR Processing
One Device for Recording, Streaming, and Live Performance

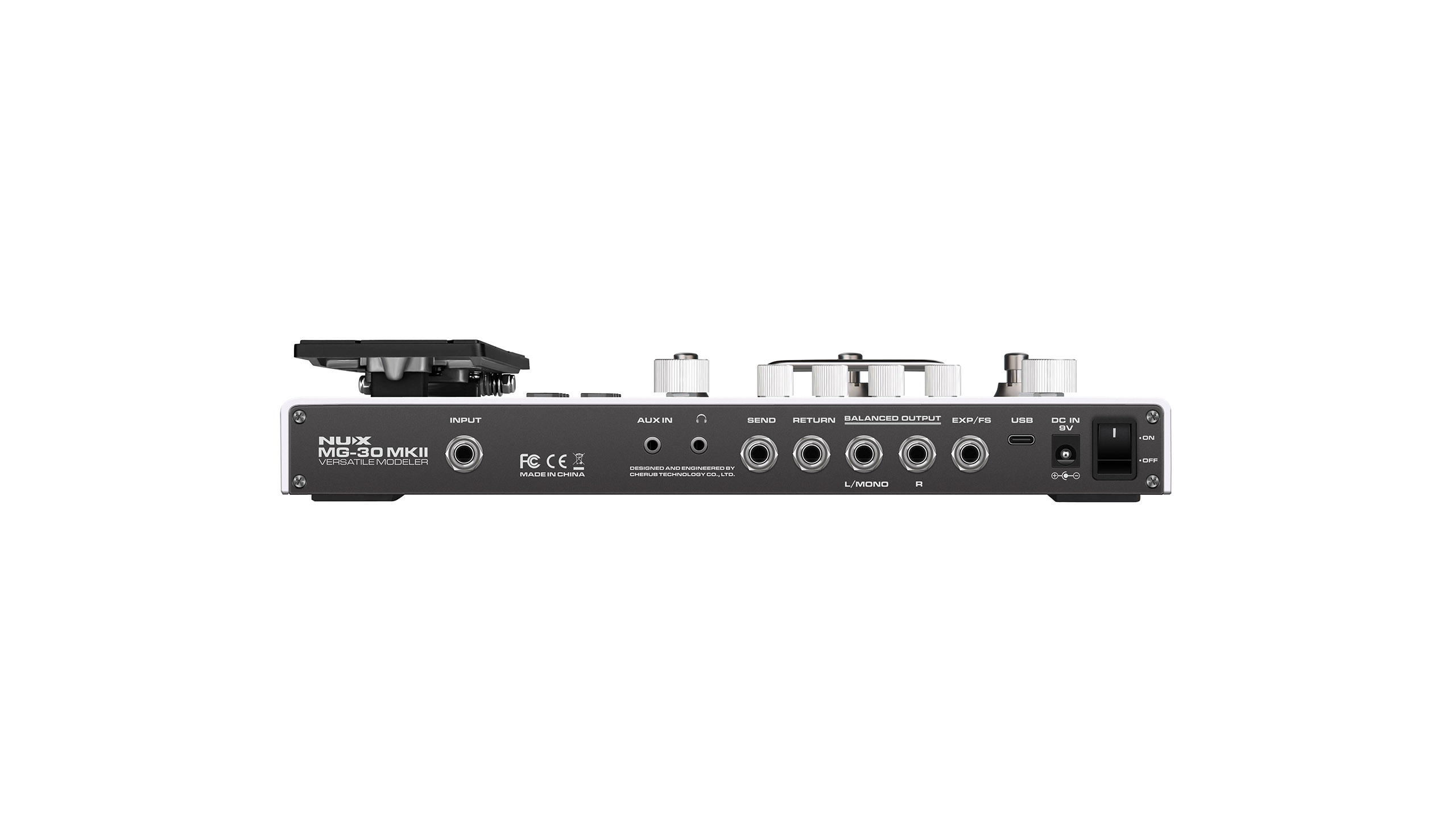

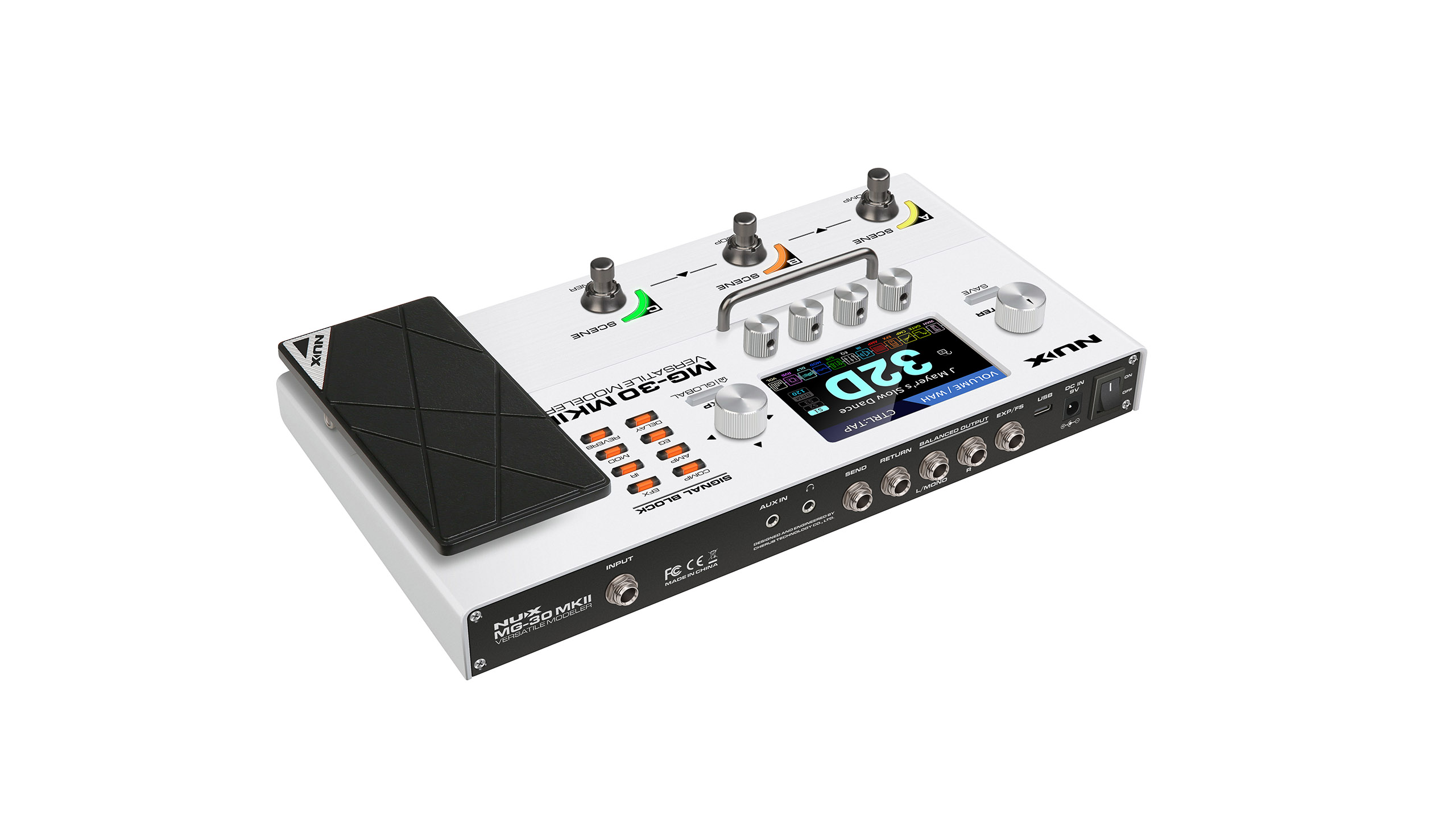

A newly added 1/4″ TRS balanced output ensures stable connectivity with mixers, audio interfaces, and professional PA systems. The USB-C port supports recording, firmware updates, and QuickTone editing, while AUX IN can be routed directly into the USB audio stream—making the MG-30 MKII a seamless solution for streaming, recording, and content creation workflows.
1/4" TRS balanced output
USB-C Recording
AUX IN to USB Stream
Key Features
Send/Return Effects Loop
Add external pedals, preamps, or amp gear into your signal chain
Expanded Foot Control Support
Expand to a 5-Footswitch Multi-Effects System with the NMP-2 Footswitch.
Built-in Expression Pedal
Control volume and effect parameters in real time.
1/4" TRS Balanced Stereo Output
Deliver a wider and more immersive soundstage.

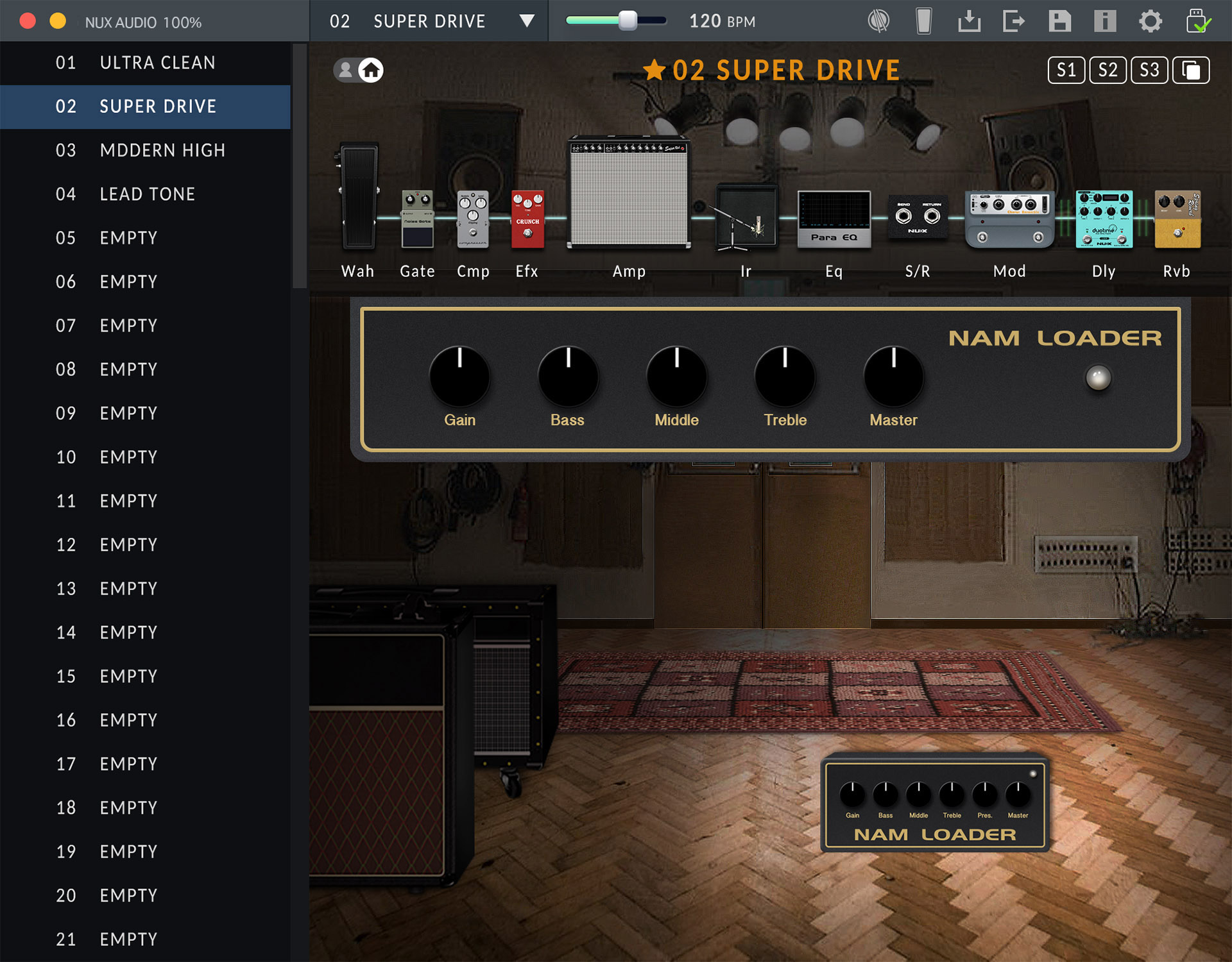

QuickTone Software Support
Edit presets and manage tones with ease. Native NAM A2 Nano support with simultaneous NAM and 3rd IR processing.

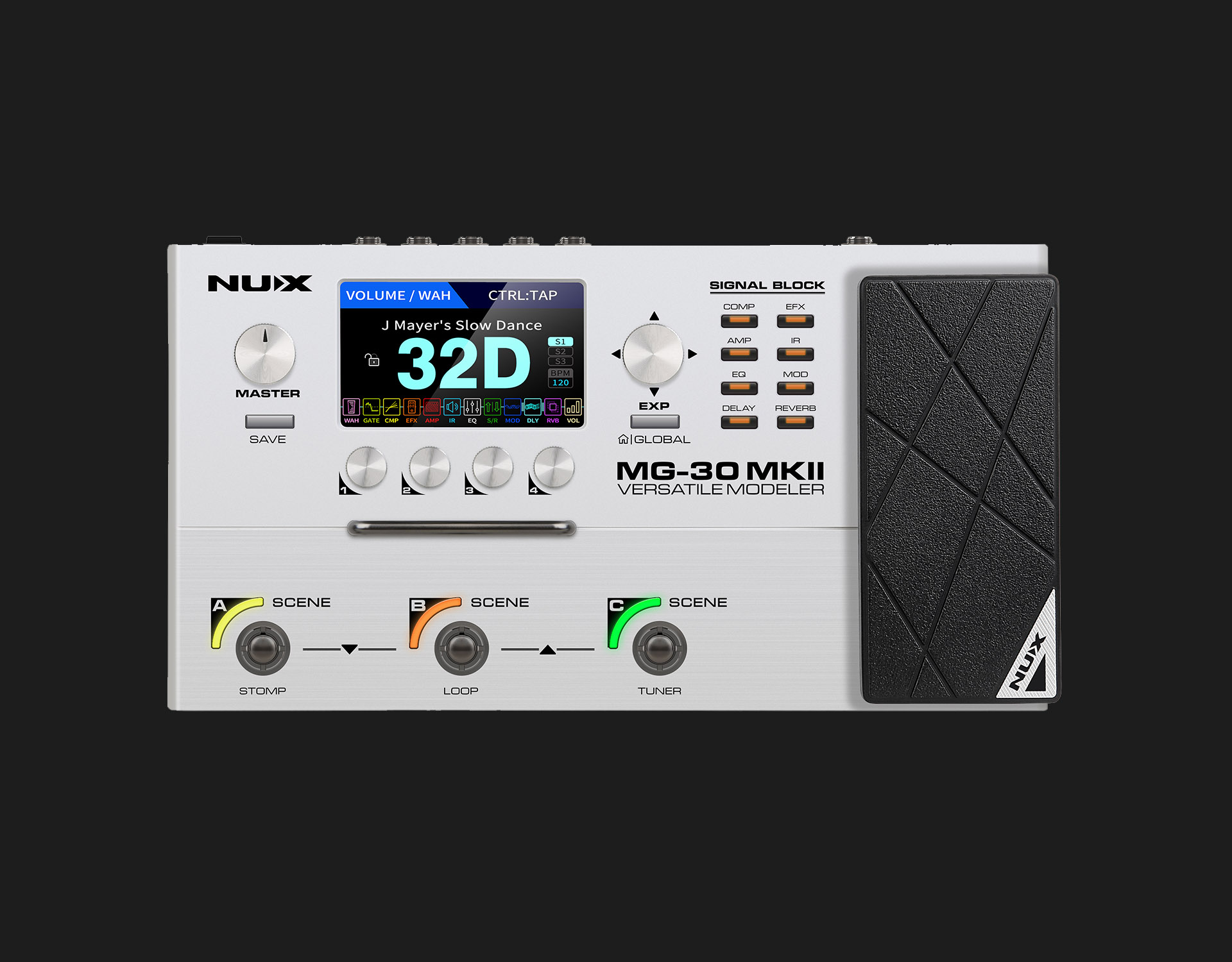

New White Finish Design
A fresh white finish with a modern visual identity.
Comparison
What’s New in MG-30 MKII ?
Feature
MG-30 MKII
MG-30
DSP Resources
200%
100%
Output
Balanced TRS
Unbalanced TS
AUX to USB Routing
✅
❌
Expression Pedal
Redesigned
Original Design
Finish
Metallic White
Metallic Blue
Send / Return
✅
✅
Sample Rates / Bit Rates
48 kHz / 32-bit
48 kHz / 32-bit
Amp Models
35 x TS/AC-2K Amp Models, 10 User Slots for IMAGE and Native NAM A2 Profiles
35 x TS/AC-2K Amp Models, 10 User Slots for IMAGE and Native NAM A2 Profiles
IR
1024 Sample Points, Supports 24 slots for 3rd IRs
1024 Sample Points, Supports 24 slots for 3rd IRs
Display
4-inch Color Display
4-inch Color Display
EXP / FS
Includes NMP-2 LITE and supports up to 5 footswitches for enhanced live control
Includes NMP-2 LITE and supports up to 5 footswitches for enhanced live control
Module
12 Independent Signal Blocks with Flexible Routing
12 Independent Signal Blocks with Flexible Routing
In the Box
MG-30 MKII x 1
NMP-2 LITE Dual Footswitch x 1
Power Adapter x 1
Patch Cable x 1
USB Cable x 1

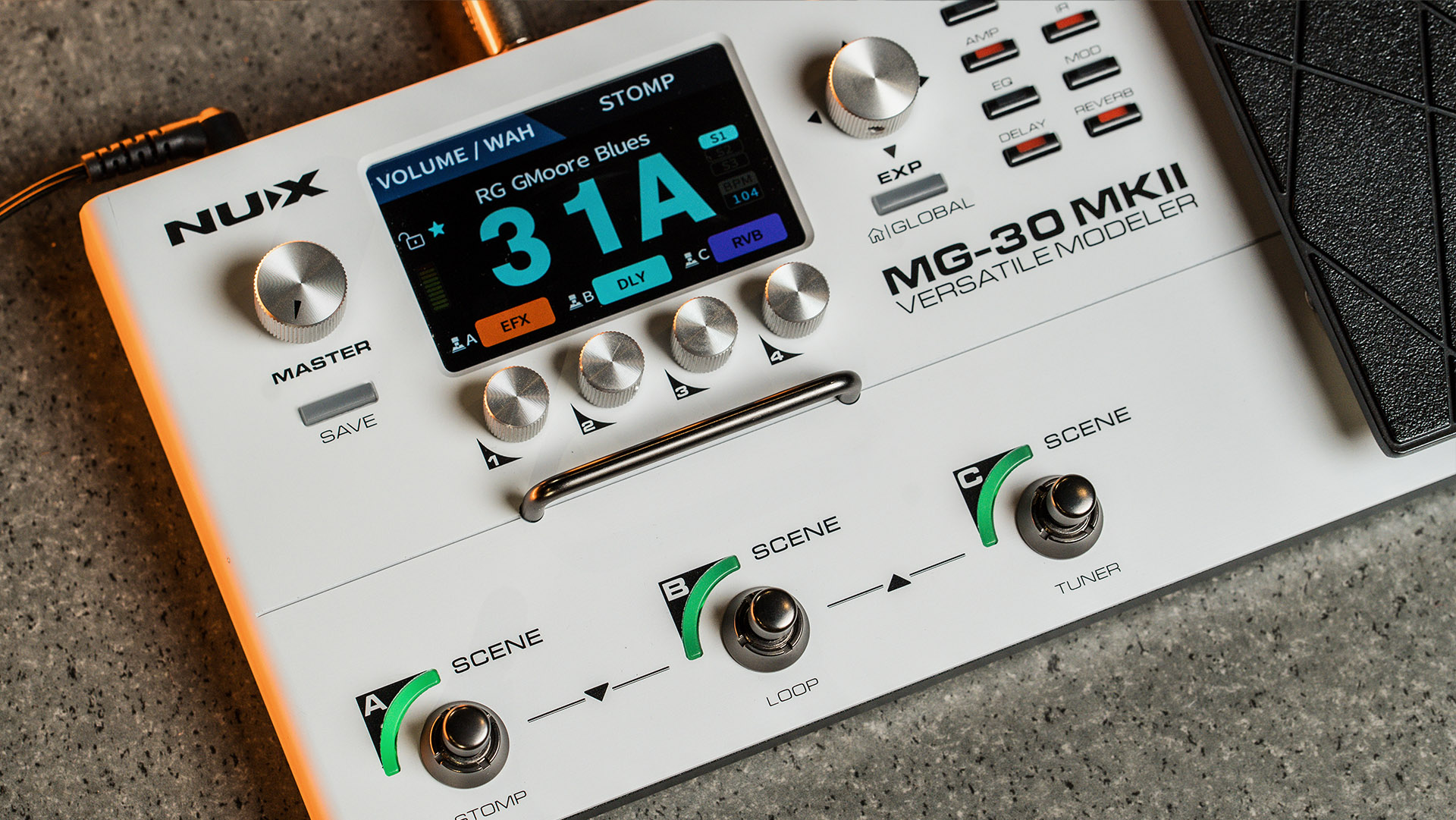

– 4″ 800 x 400 color LCD with an intuitive graphical user interface.
– Dual DSP architecture delivering increased processing headroom for Gen 2 firmware.
– 12 independent, movable signal blocks (WAH, CMP, GATE, EFX, AMP, IR, EQ, S/R, MOD, DLY, RVB, VOL) with flexible routing and optional parallel post-effects.
– NUX TS/AC-2K White-Box amp modeling with enhanced processing performance.
– Supports NUX Image and NAM (Neural Amp Modeler) profile import, with 10 user slots.
– 1024-sample IR resolution with dedicated third-party IR loader slots per user patch.
– Wide range of electric guitar amp models, bass amp models, and acoustic simulation IRs with matched amp models.
– Balanced 1/4″ TRS outputs for improved compatibility in live and studio environments.
– 32-bit high-resolution ADC and DAC for improved dynamic range and signal accuracy.
– Send/Return loop interface for connecting external effects pedals, with freely re-orderable placement within the signal chain.
– Supports external footswitch expansion into a 5-footswitch multi-effects processor; also supports expression pedal input with fully assignable parameter control.
– USB audio interface for recording, firmware updates, and integration with QuickTone editing software.
– Input Impedance:
- Input: 1 MΩ
- Return: 220 kΩ
– Output Impedance:
- Output: 1 kΩ
- Send: 1 kΩ
– A/D Converter: 32-bit
– Sampling Frequency: 48 kHz
– Frequency Response Range: 20 Hz—20 kHz
– Dynamic Range: 110 dB
– Current Draw: < 400 mA
– Power: 9V DC negative center
– Dimensions: 313 mm (L) x 166 mm (W) x 55 mm (H)
– Weight: 1.5 kg
