B-3RC
NUX B-3RC 2.4GHz Wireless Microphone System
The NUX B-3RC, 2.4GHz microphone system, frees you from the annoying cables, and enjoy the wireless world with non-complicated functions and setups. The more compact size brings better using experience.

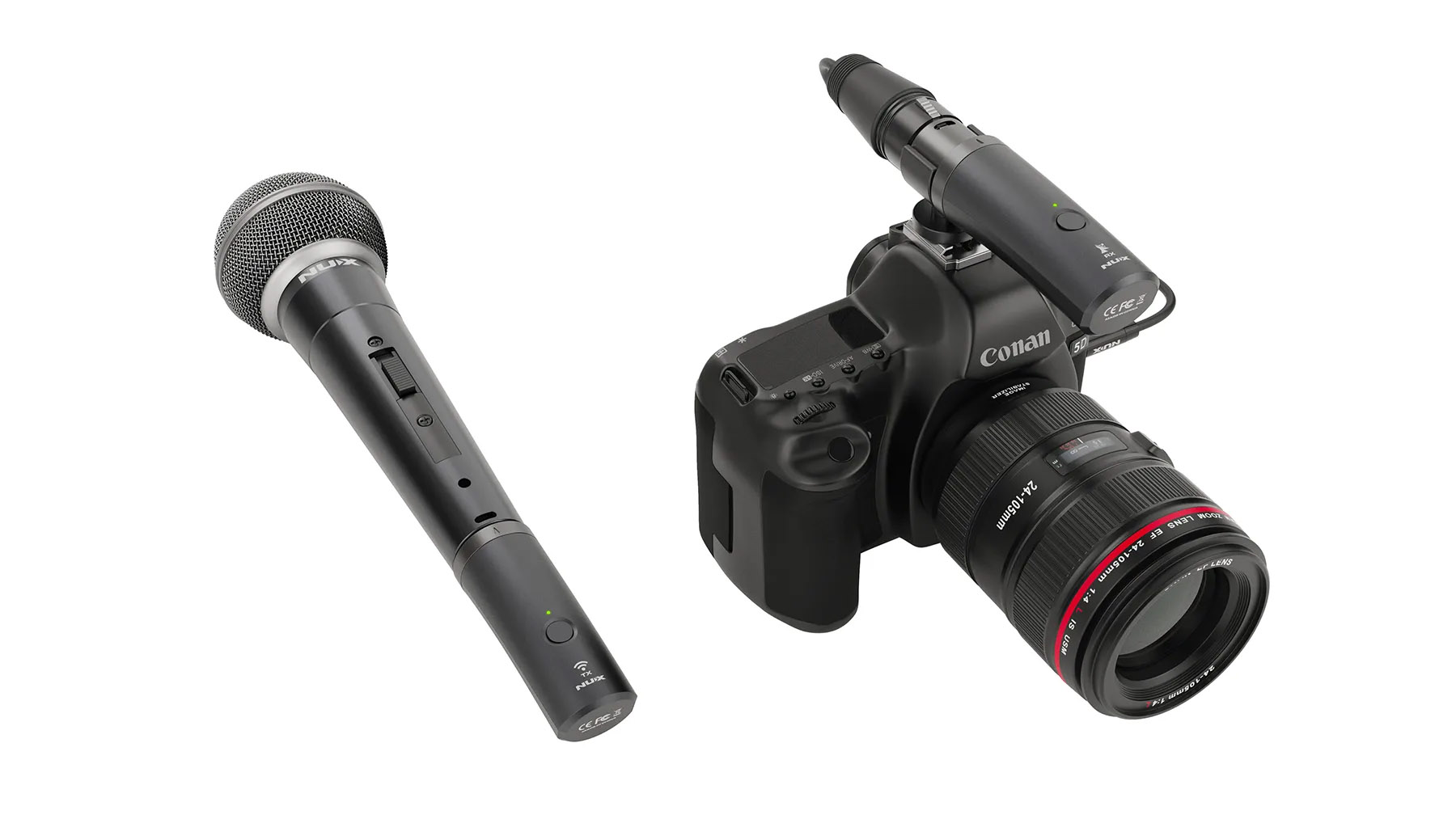

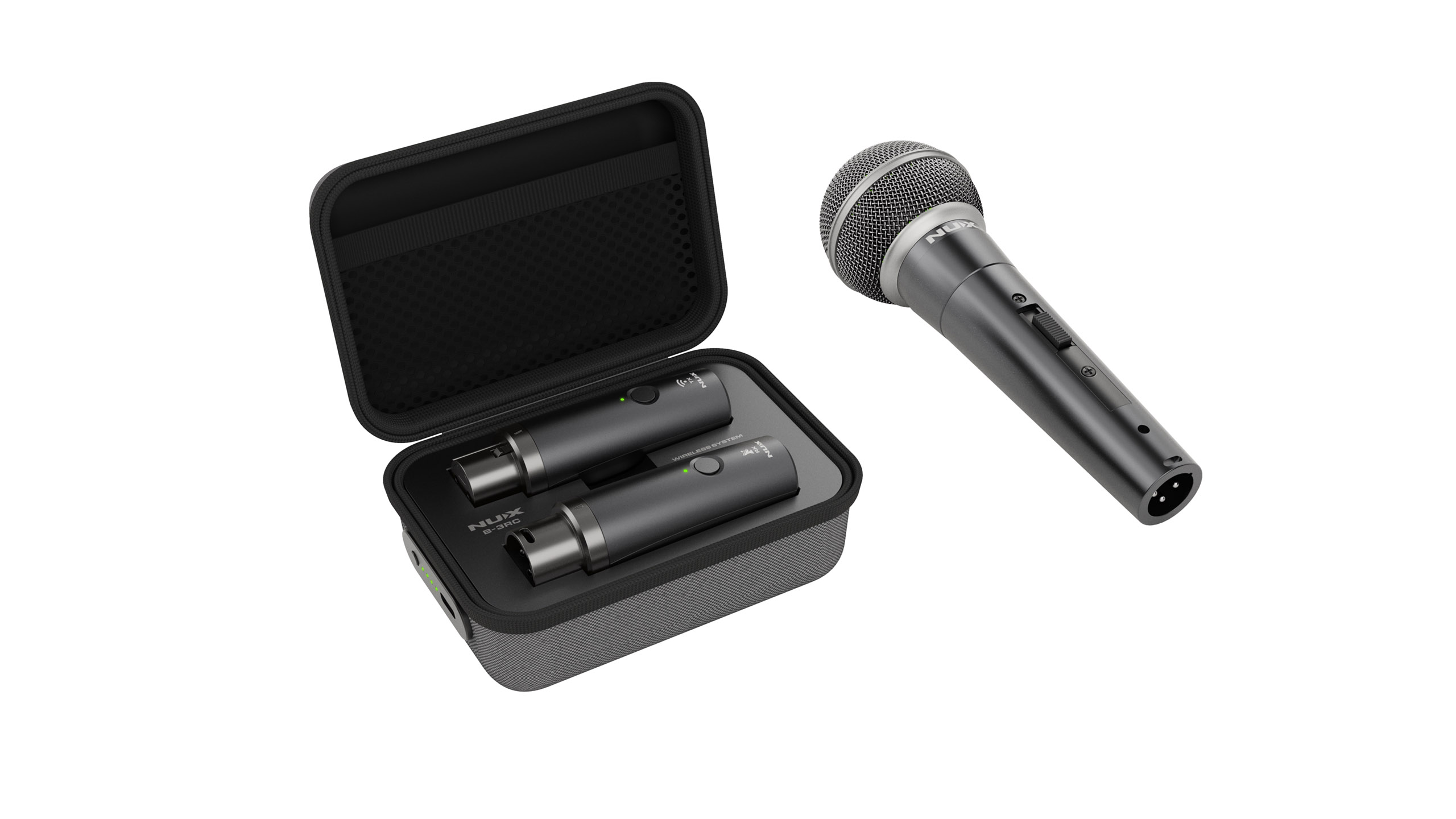

An extra dynamic microphone and charging storage box are packed into the bundle set.
Instant Setup, Easy Operation
Wireless. Effortless
B-3RC has auto pairing and channel group selection. Plug the Transmitter (TX) to your mic, Receiver (RX) to PA system, and you are good to go. The units will automatically detect each other and choose the best channel from all 6 channels.
Delivering detailed consideration for performers’ control need, B-3RC allows to swiftly mute from Transmitter (TX)’s power switch button.
Cutting-Edge Wireless Technology
Hi-Quality Audio & Long Distance Transmission
With advanced 2.4GHz wireless technology, enjoy your high-resolution audio quality of 24-bit/44.1kHz with B-3RC. The interference-free signal transmission up to 100 feet (30 meters), ensuring uninterrupted control and excellent performance.
Compact for Enhanced Portability
Ideal for Outdoor

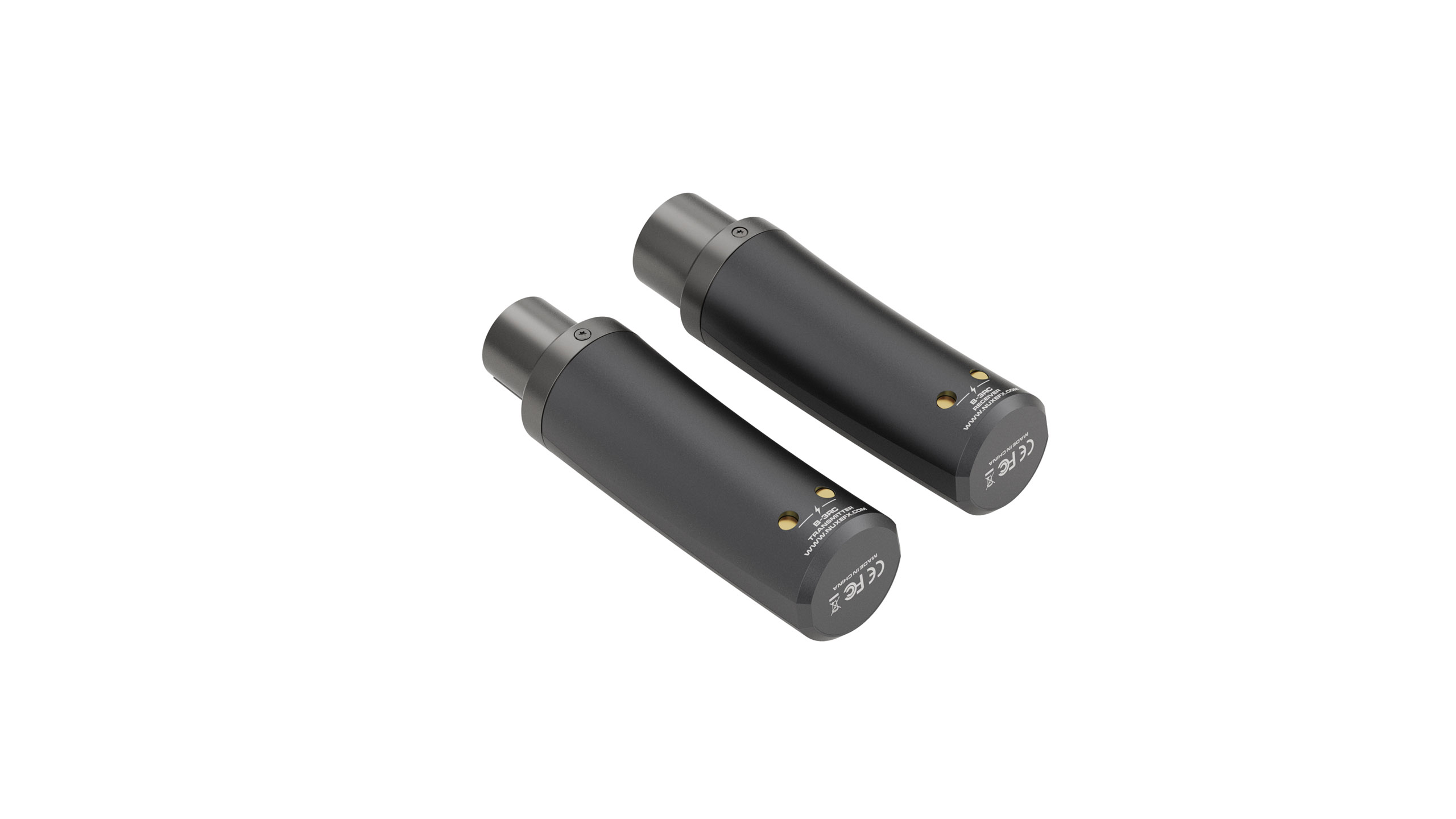

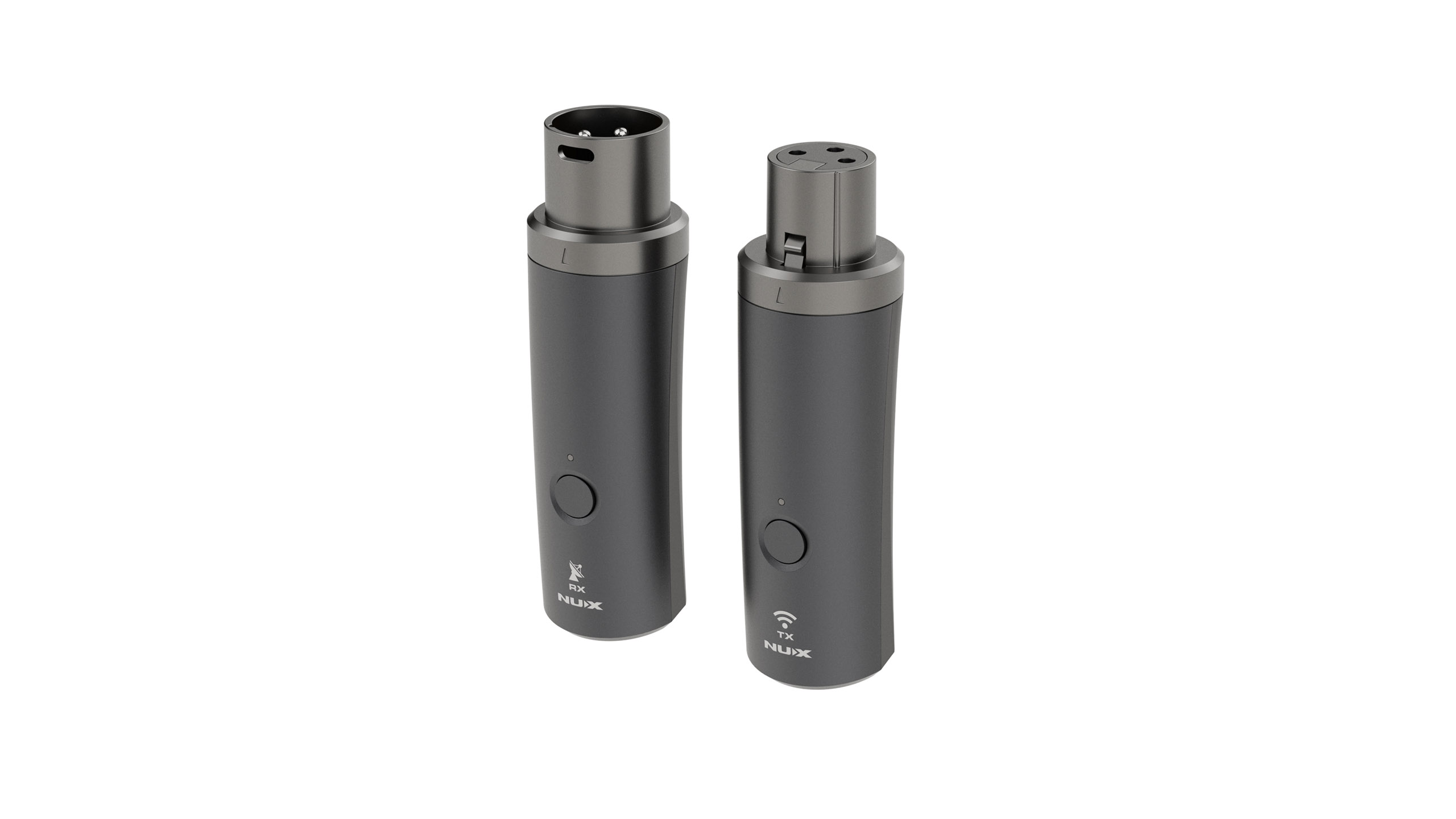

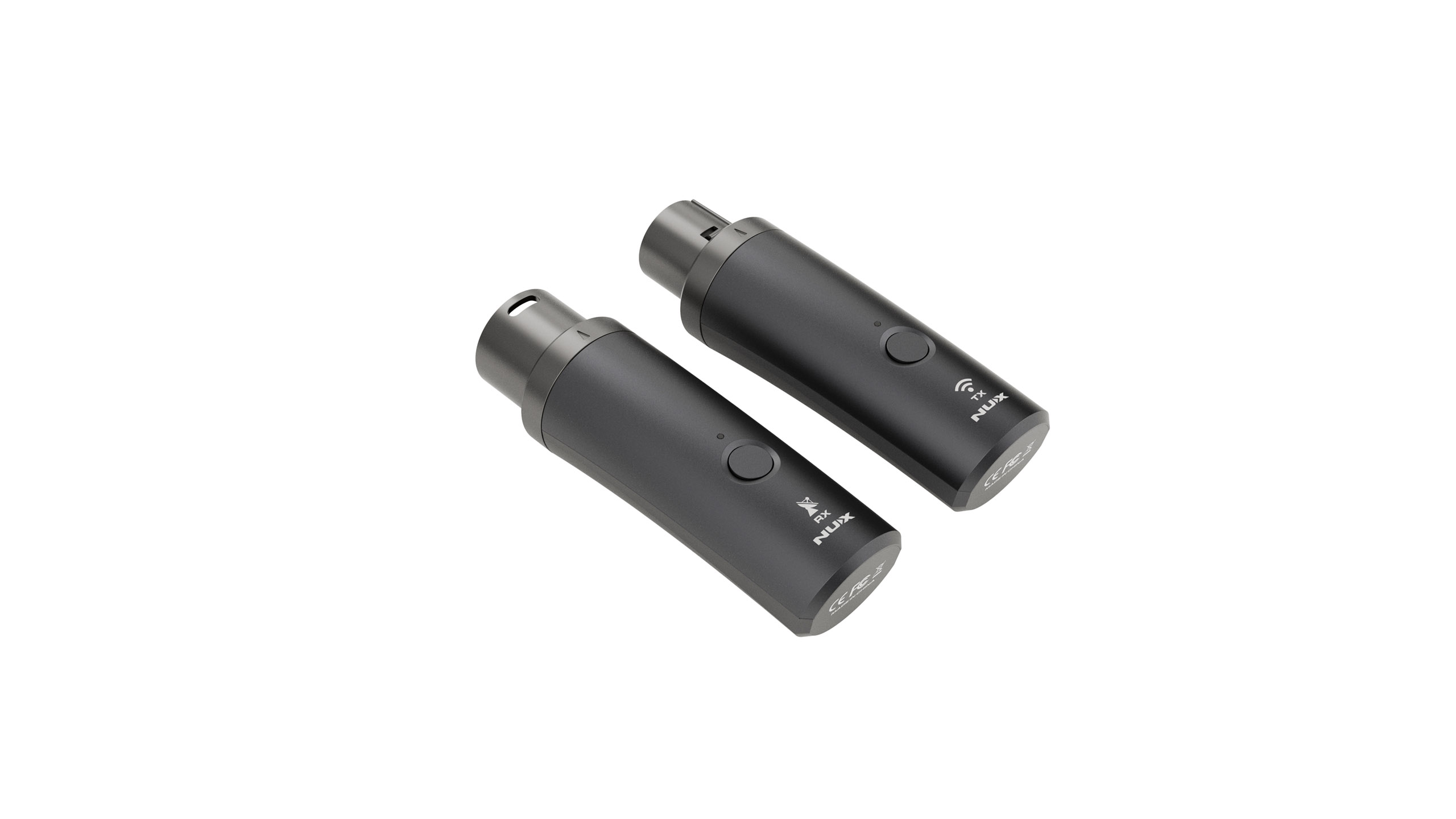

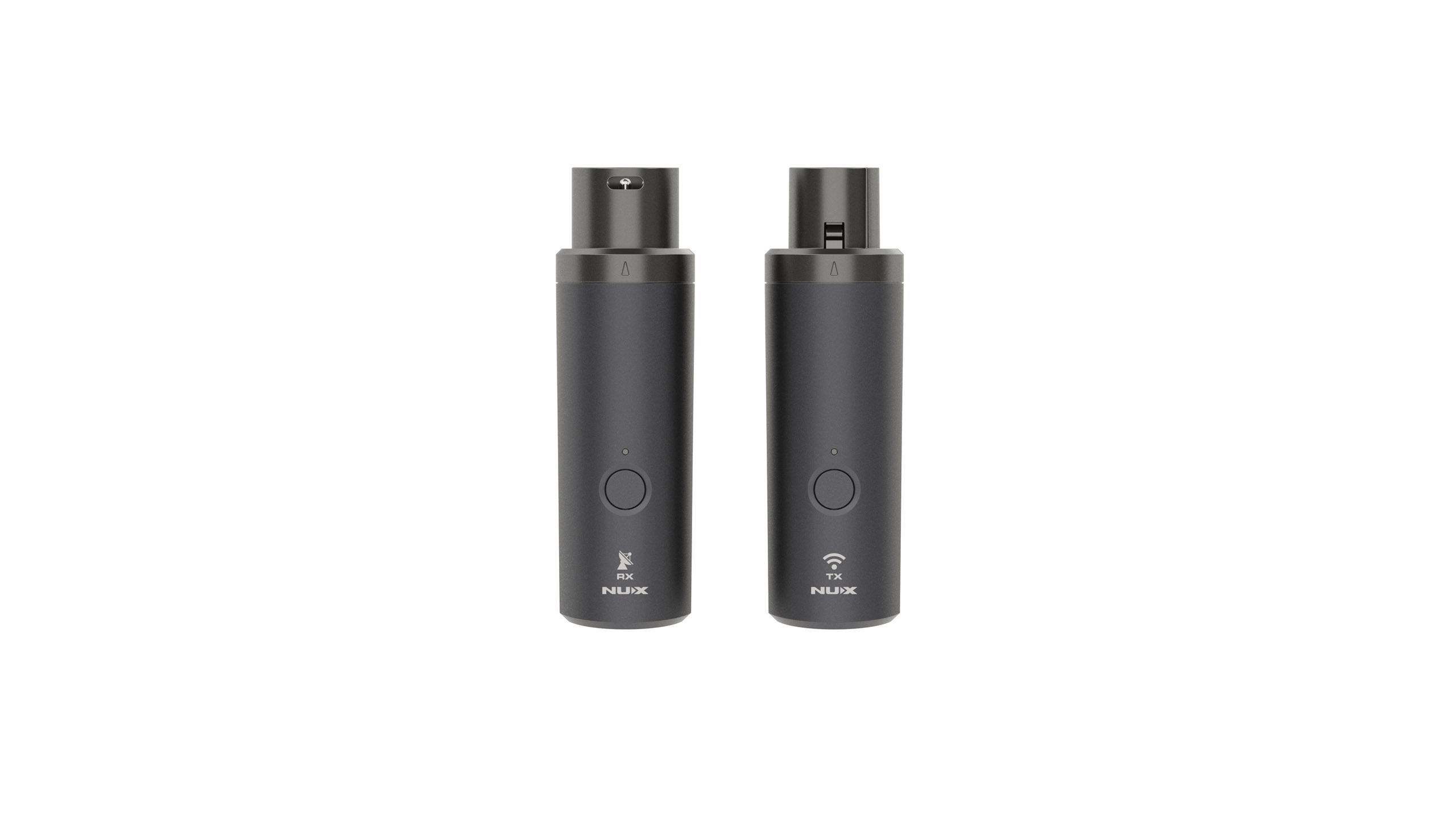

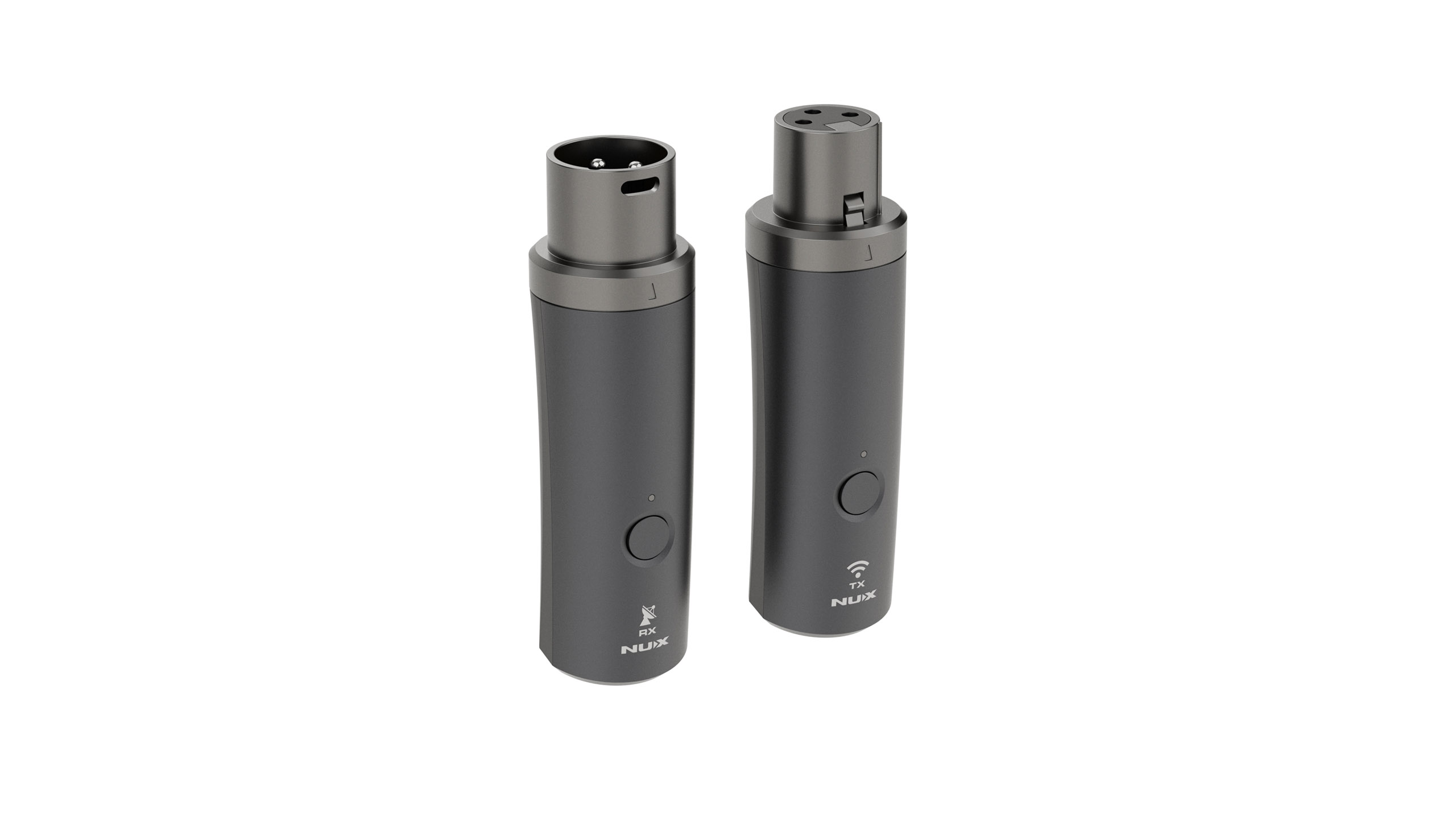

The Transmitter (TX) and Receiver (RX) measure just 80mm in length and weigh only 36g each.

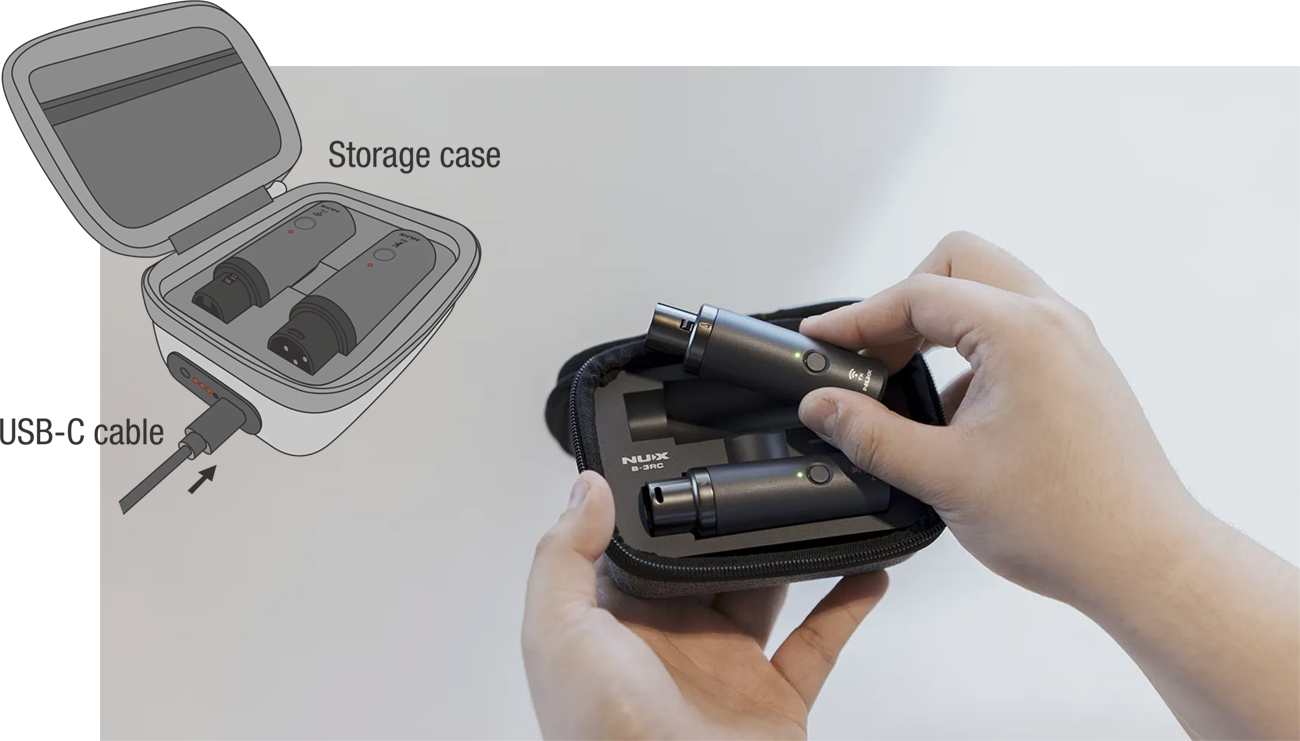

Long Lasting Battery and Power Case
Put it In, Charge it Up

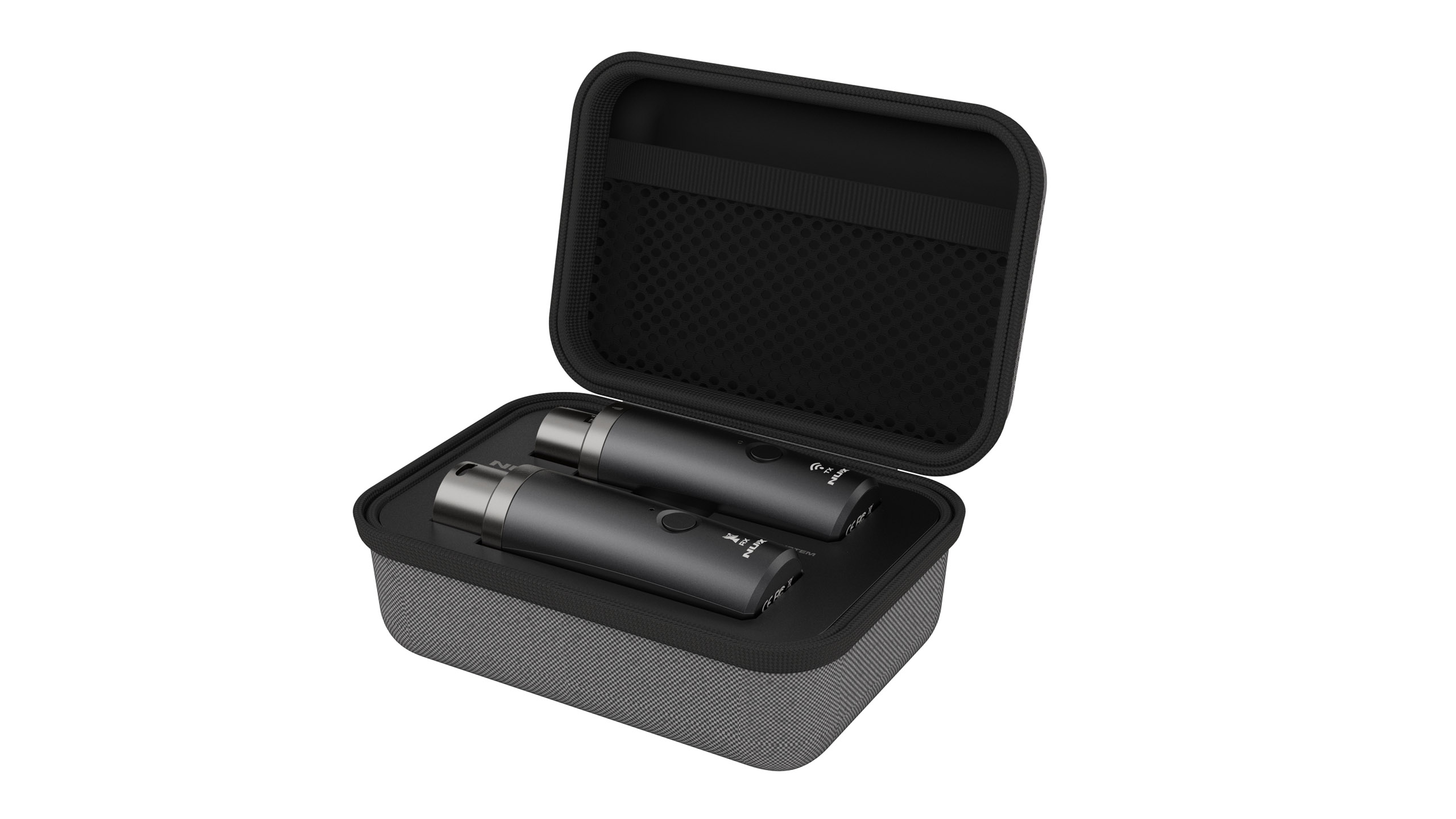

Long-lasting lithium battery brings up to 3.5 hours of using time on one charge. With the charging case, charging could never be easier. And you can charge the case through the USB-C port.

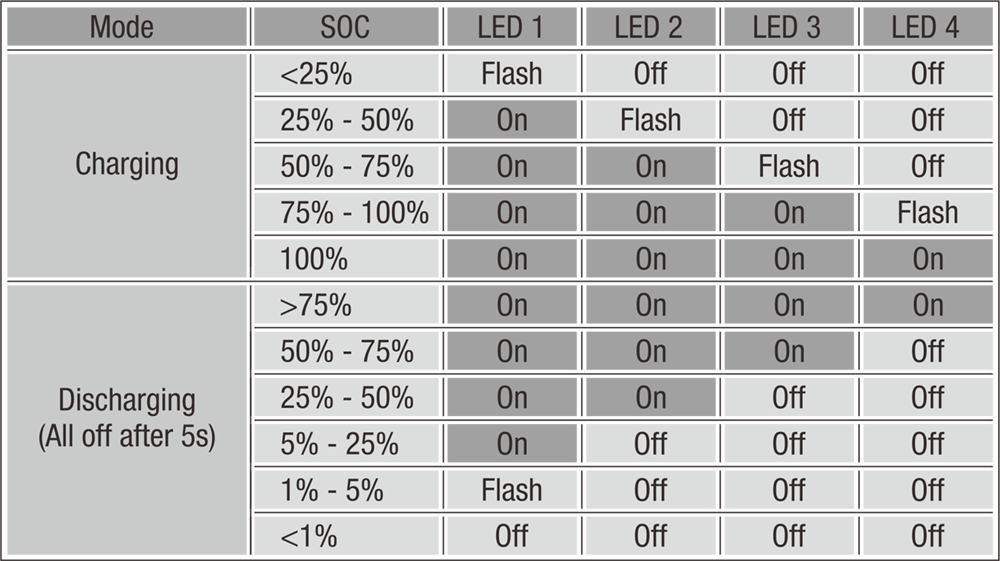

The LED indicators on the TX, RX, and charging case allow you to intuitively monitor the battery state.
Application Scenario

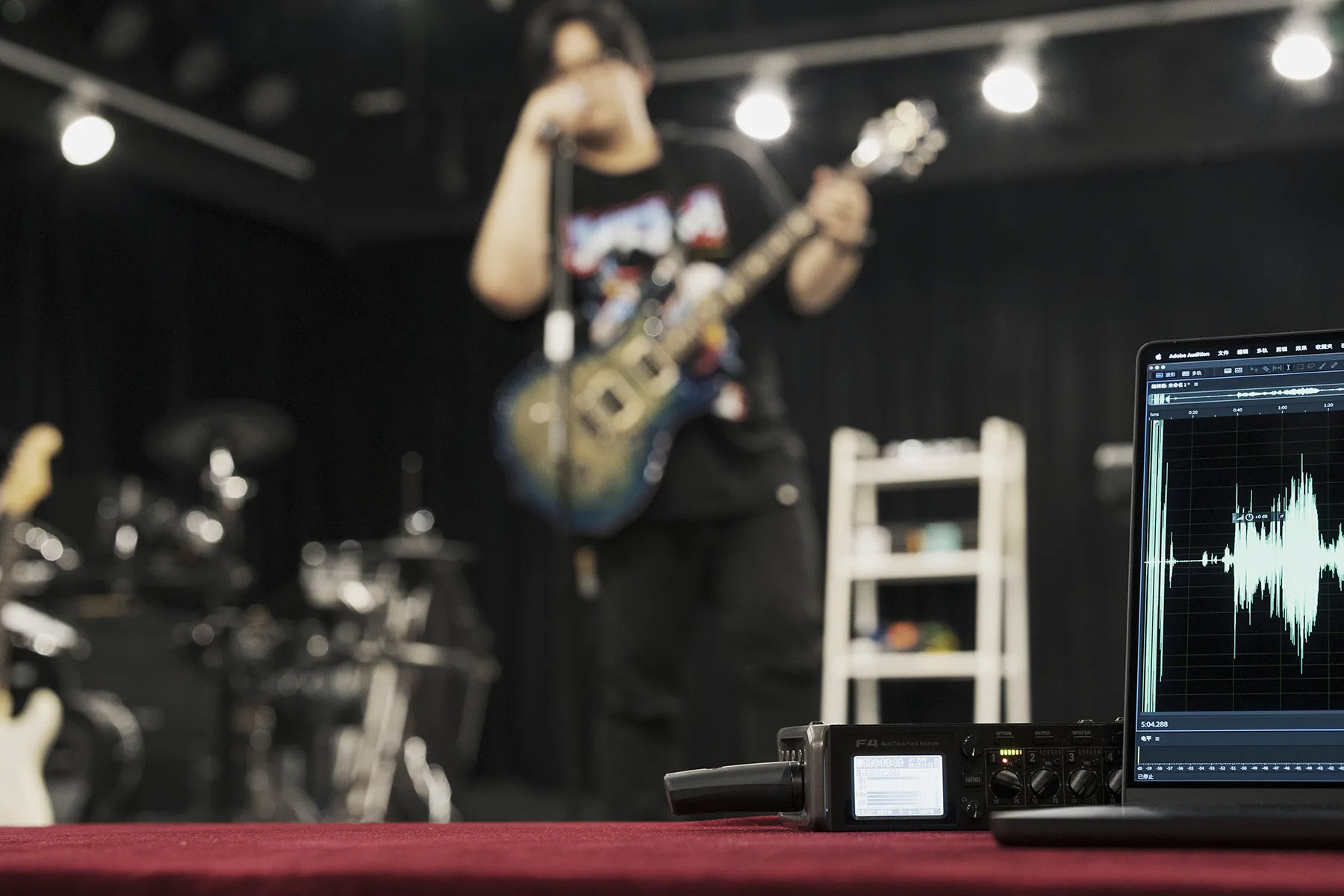

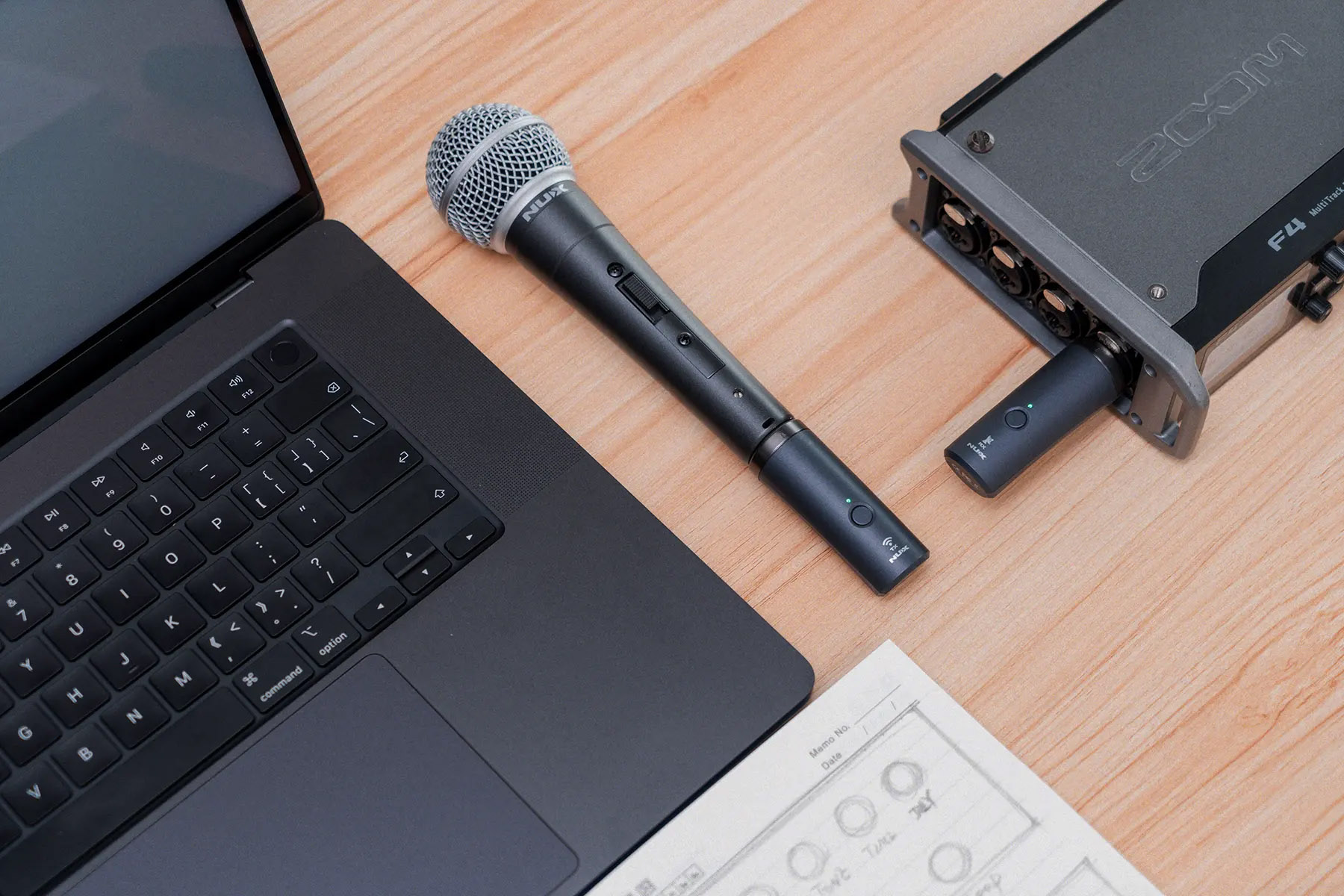

1. Wireless Recording

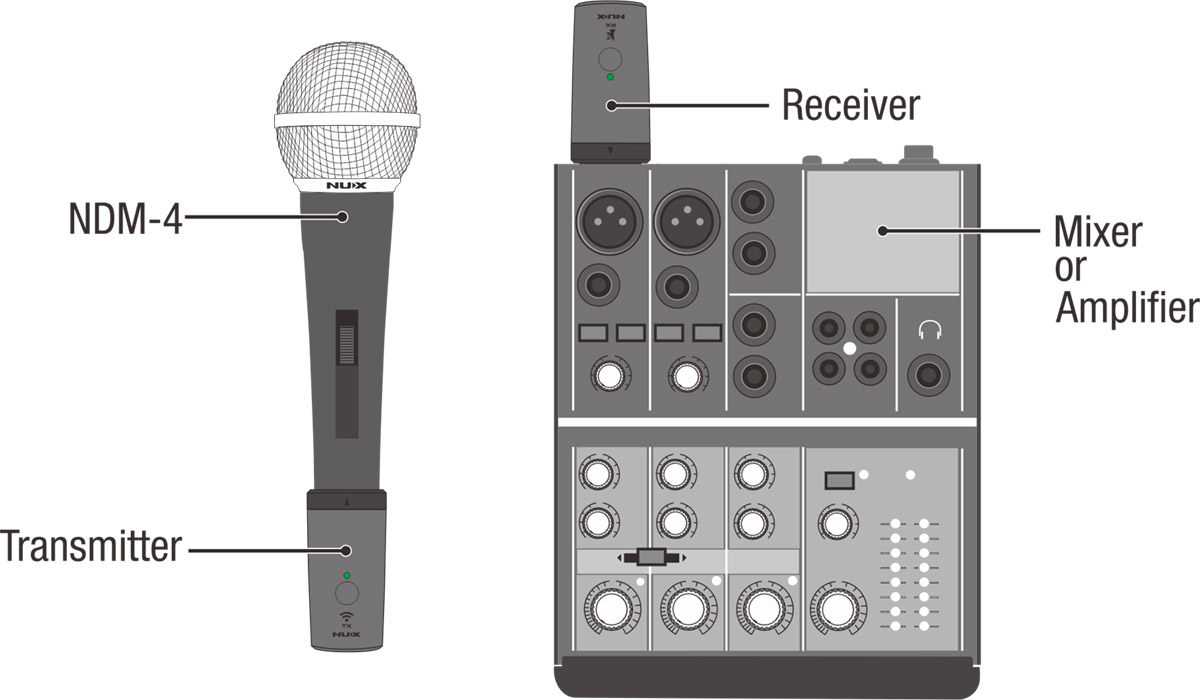

2. Conventional Use 1
3. Conventional Use 2
NDM-4 Dynamic Microphone
Response Curve
Pickup Pattern

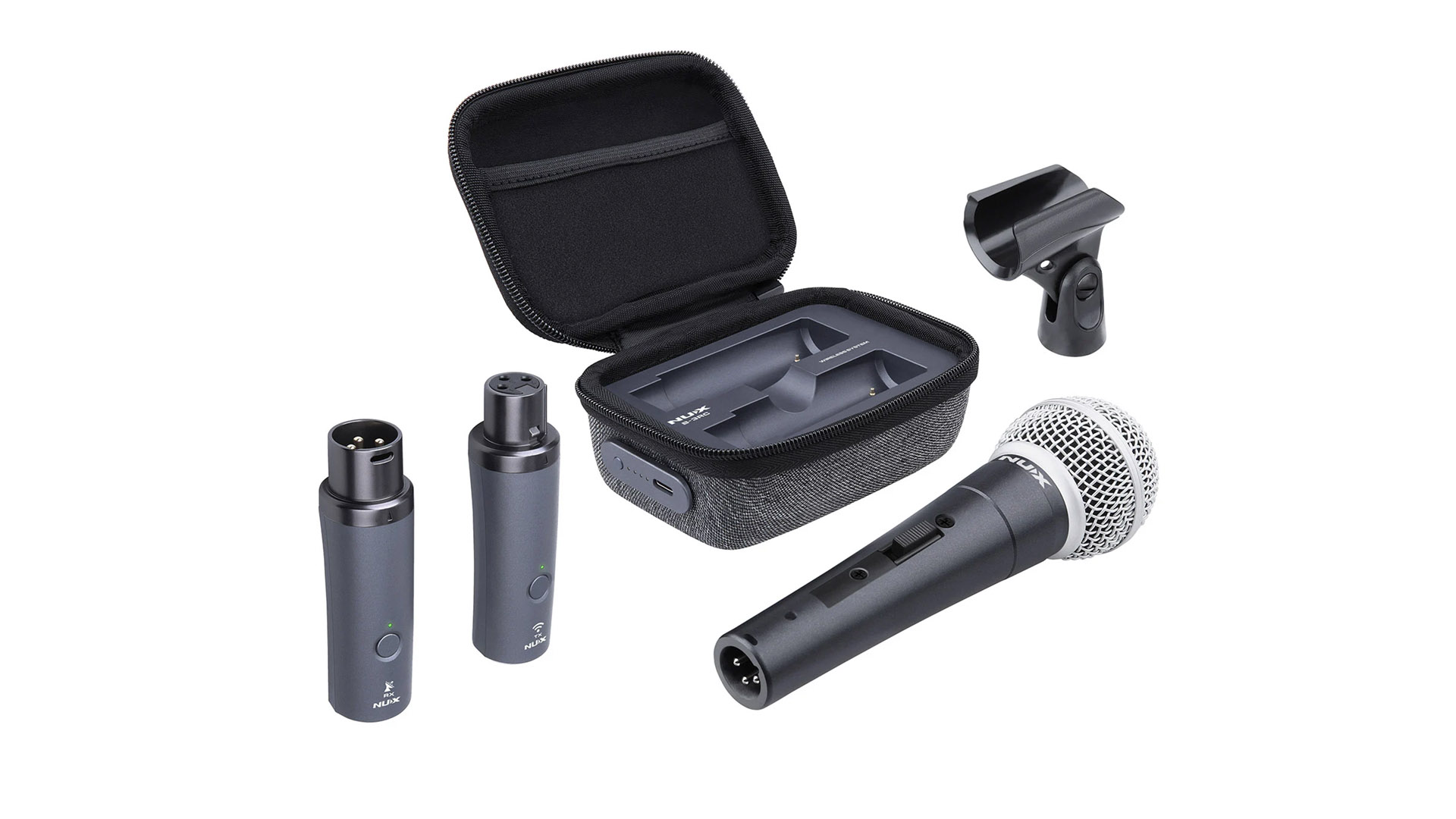

What's in the package?
• Transmitter x 1 • Receiver x 1 • NDM-4 x1 • Mic Pouch x 1 • Charging Cable x 1 • User Manual x 1 • Warranty card x 1
– Easy-to-use 2.4GHz wireless microphone system
– 24-bit high-resolution audio quality
– Ultra-low latency (<4.8 ms)
– Auto pairing and automatic channel selection
– Long-lasting built-in lithium battery (up to 3.5 hours working time)
Wireless System Specifications
– Operating Frequency: 2.4 GHz
– Transmission Power: <10 mW EIRP
– Sampling Accuracy: 24-bit
– Latency: <4.8 ms
– Transmission Range: Up to 100 ft (line-of-sight)
– THD + Noise: <0.1% @ 1 kHz
– Built-in Battery Capacity (TX & RX): 330 mAh / 3.7 V
– TX/RX Operating Time: Approx. 3.5 hours
– TX/RX Charging Time: Approx. 2.5 hours
– Storage Box Battery Capacity: 3000 mAh / 3.7 V
– Storage Box Charging Time: Approx. 4 hours
– Transmitter Dimensions: 80 (L) × 24 (W) × 24 (H) mm
– Receiver Dimensions: 80 (L) × 24 (W) × 24 (H) mm
– Transmitter Weight: 36 g
– Receiver Weight: 36 g
NDM-4 Dynamic Microphone Specifications
– Type: Dynamic
– Impedance: 600 Ω ±15% @ 1 kHz
– Sensitivity: -48.4 ±3 dB (0 dB = 1 V/Pa)
– Frequency Response: 50 Hz – 15 kHz
– Directivity: Uni-directional (Cardioid)
– Operating Temperature: -30 ℃ – 60 ℃
– Construction: Sponge Ref-shock Type
– Dimensions: 164 (L) × 50 (W) × 50 (H) mm
– Weight: 213 g
