B-11 PRO
Where Technology Meets Elegance

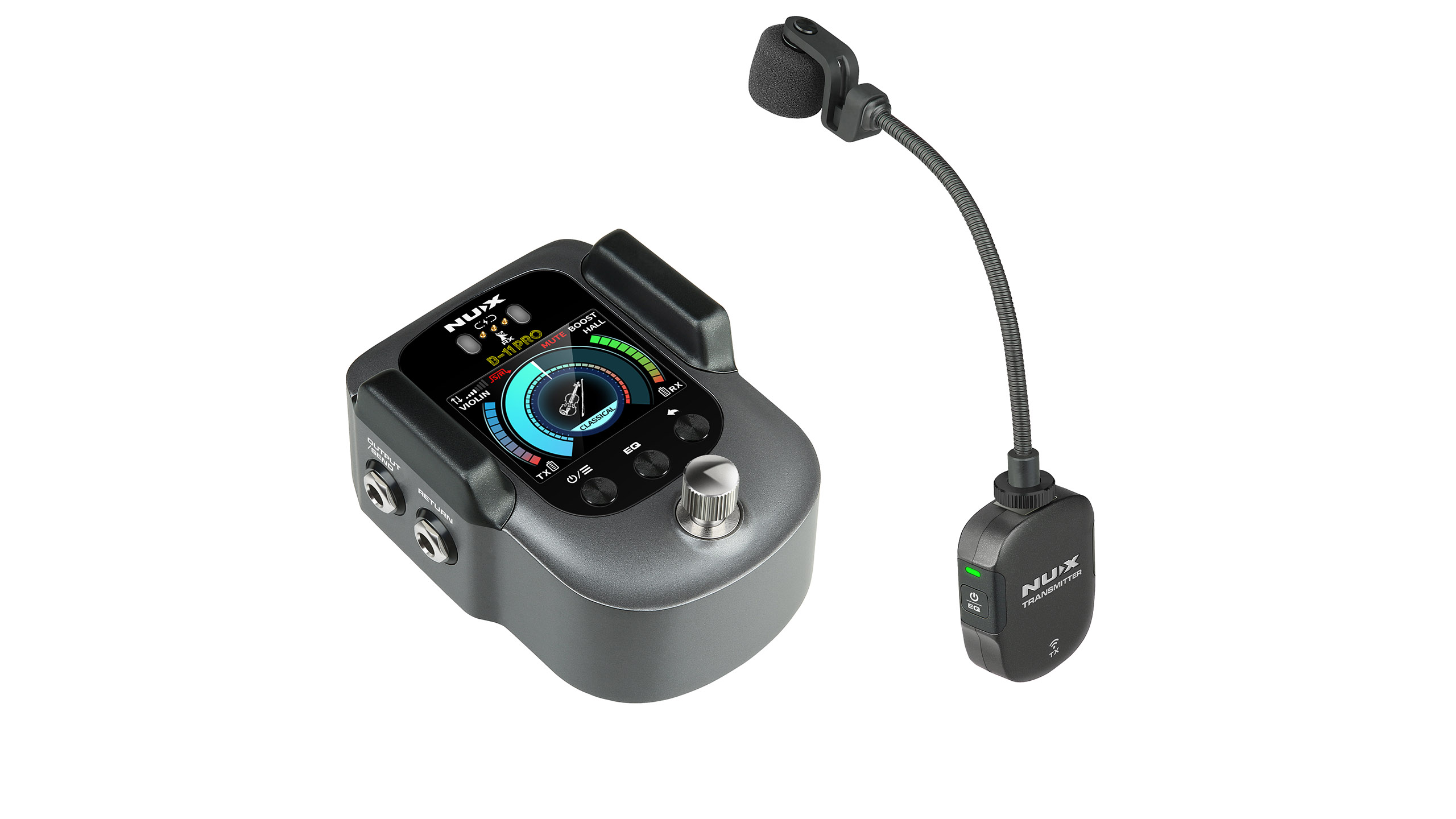

The NUX B-11 PRO Wireless System is a perfect fusion of advanced technology and refined elegance, designed specifically for violin and viola.
It frees you completely from the limitations of traditional wired pickups. Powered by NUX’s advanced wireless technology, it delivers professional-grade 24-bit / 48 kHz high-quality audio transmission.
With an ultra-low latency of just 3.6 ms and a transmission range of up to 165 feet, you gain complete freedom of movement on stage—letting the music flow effortlessly.
Automatic Pairing + Intelligent Frequency Hopping
Simply power on the transmitter and receiver, and they will automatically pair within seconds.
During operation, the system continuously scans the surrounding wireless environment. When interference is detected, it instantly switches to a cleaner channel, ensuring a stable connection and clear, uninterrupted audio.
Longer Range, Lower Latency
Powered by NUX’s advanced 2.4 GHz wireless technology, the system delivers outstanding transmission performance and sound quality.
During use, the transmission mode can be adjusted between Low Latency and Stable according to the surrounding environment.
Latency can be as low as 3.6 ms, with a transmission range of up to 50 meters (165 feet).
Upgraded Microphone Assembly
Equipped with a cardioid condenser instrument microphone, capturing a natural, full-bodied tone rich in detail.
A newly designed shock-absorbing structure significantly reduces vibration while further minimizing the size and weight of the microphone assembly—greatly enhancing the overall playing experience.
Quick Installation, Stable and Reliable
Designed specifically for violin and viola, the transmitter features a magnetic design that allows quick attachment to the transmitter mount during performance breaks, or easy removal for charging. (The transmitter mount is fixed to the edge of the instrument body.)
High-Capacity Lithium Battery + Magnetic Charging
Both the transmitter and receiver are equipped with high-capacity lithium batteries. A fully charged transmitter provides up to 6.5 hours of operation.
During breaks, the transmitter can be conveniently placed on top of the receiver for charging.
Built-in Reverb Effect
Features a professional-grade built-in reverb effect, activated with a single press of the button on the right side of the transmitter.
Detailed reverb parameters can be adjusted through the receiver’s UI menu.
Professionally Tuned Tone Presets

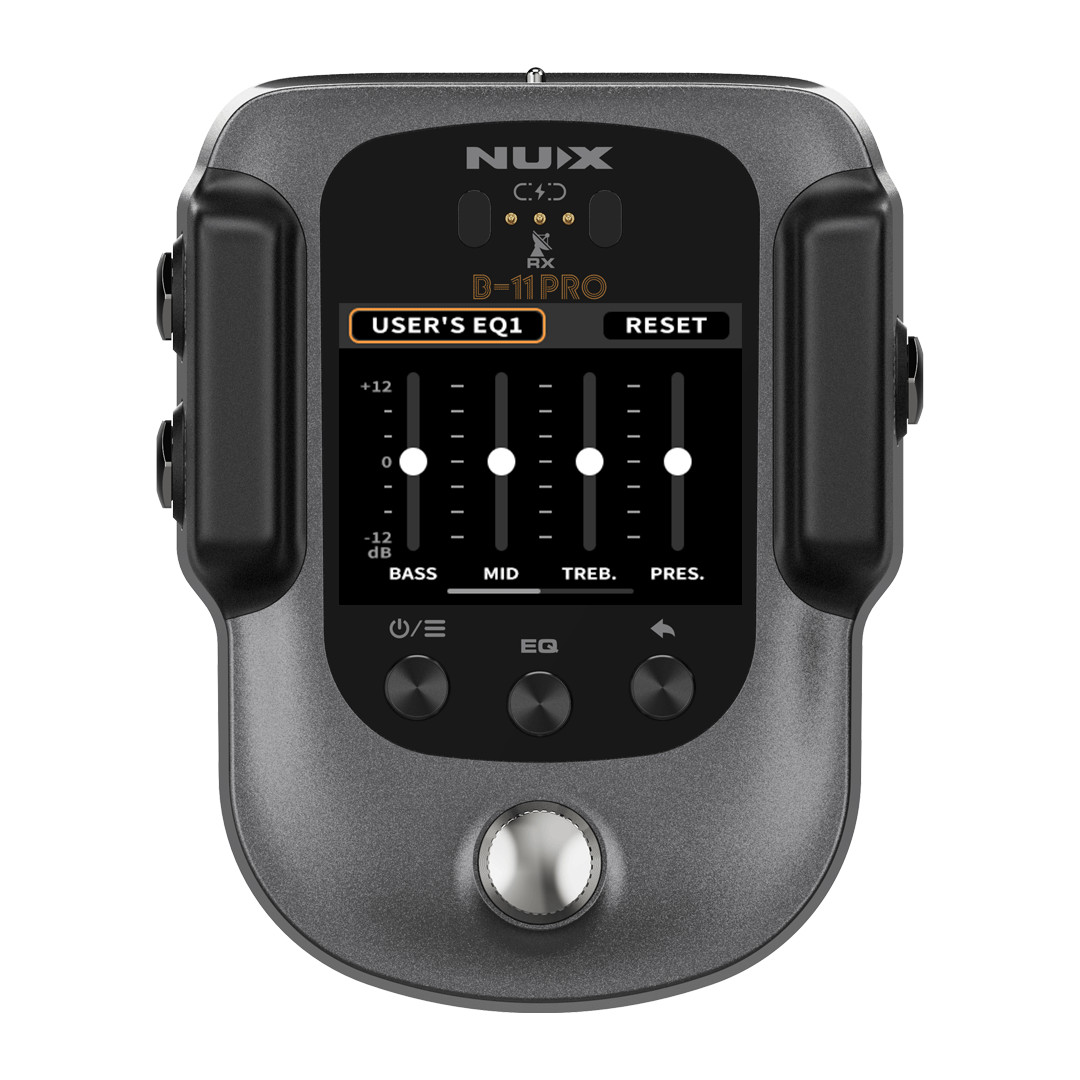

Includes multiple professionally calibrated tone curves optimized for violin and viola.
Presets cover Classical, Modern, Warm, and Custom styles, allowing instant switching with a single button.
Multiple Footswitch Functions
After configuration in the receiver’s menu, different functions can be triggered via short press or long press of the footswitch.
Footswitch functions include: Boost, Mute, Tuner, S/R Bypass, and Reverb.
USB Audio
You can connect the B-11 PRO to a mobile phone via the USB-C port for digital audio recording.
*Tips: Some mobile devices may require an OTG adapter to connect with the B-11 PRO.

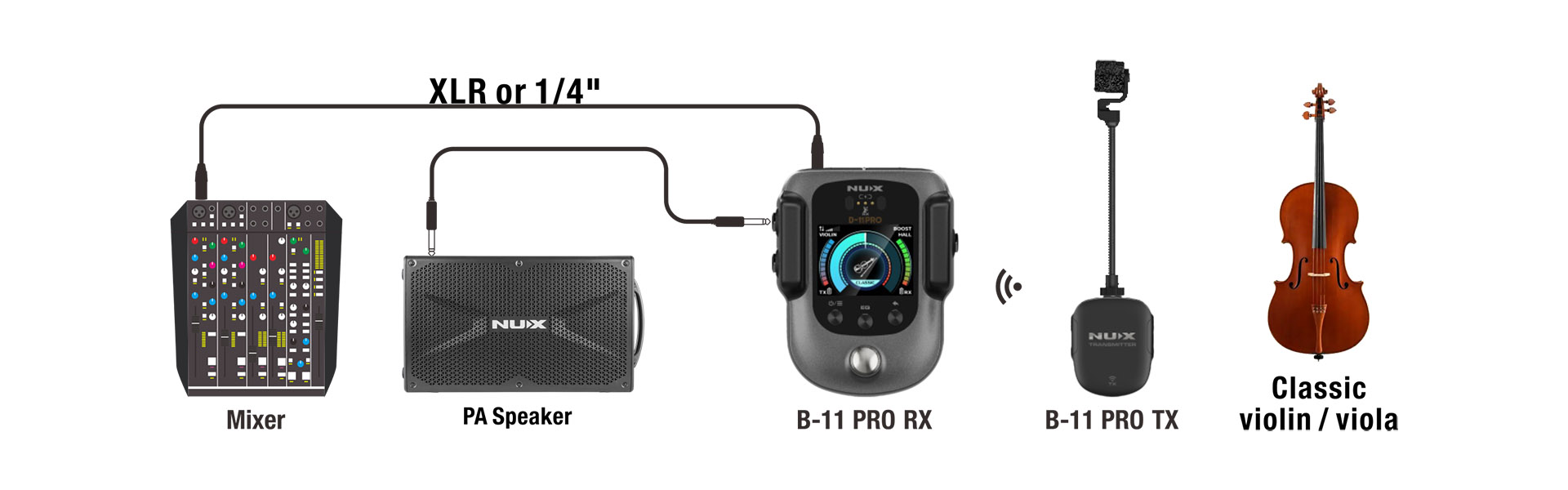

Connections
Connect the receive to an amplifier or mixing console.

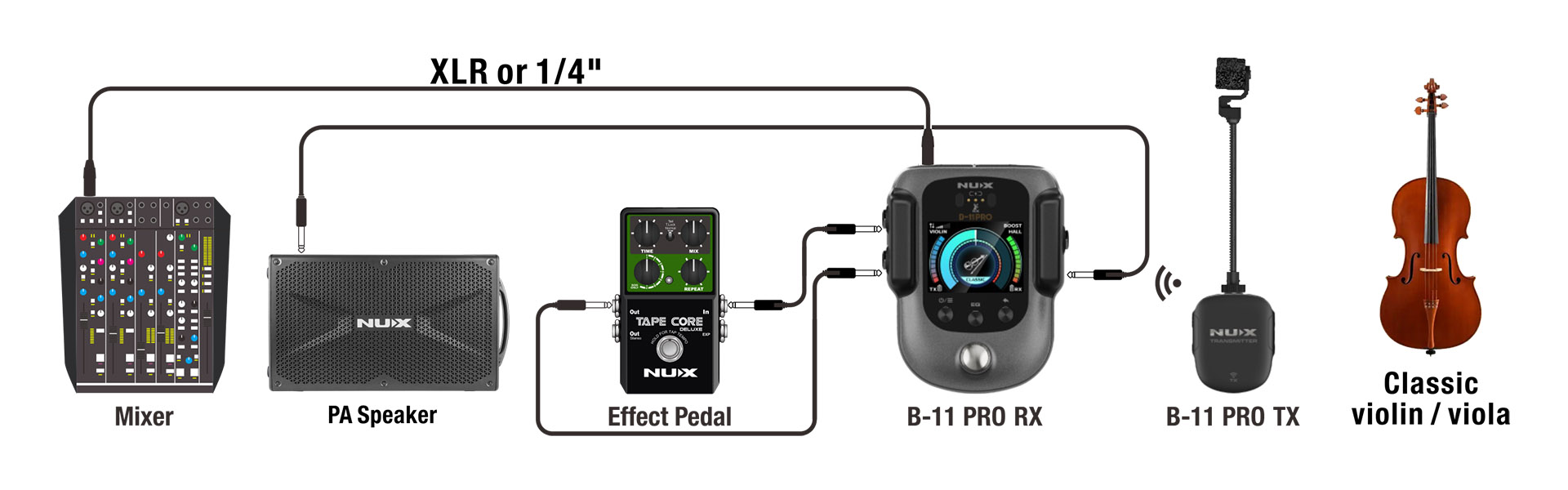

Connect the receive to an amplifier or mixing console. You can also integrate your effects loop into the receiver by using the send/return ports.
Customize your own Boot-up picture
B-11 PRO allows you to customize GIF boot-up animations! Follow these steps to set it up:
1. Download the “NUX B-11 PRO GIF Customizer” software from the Support section below and install it.

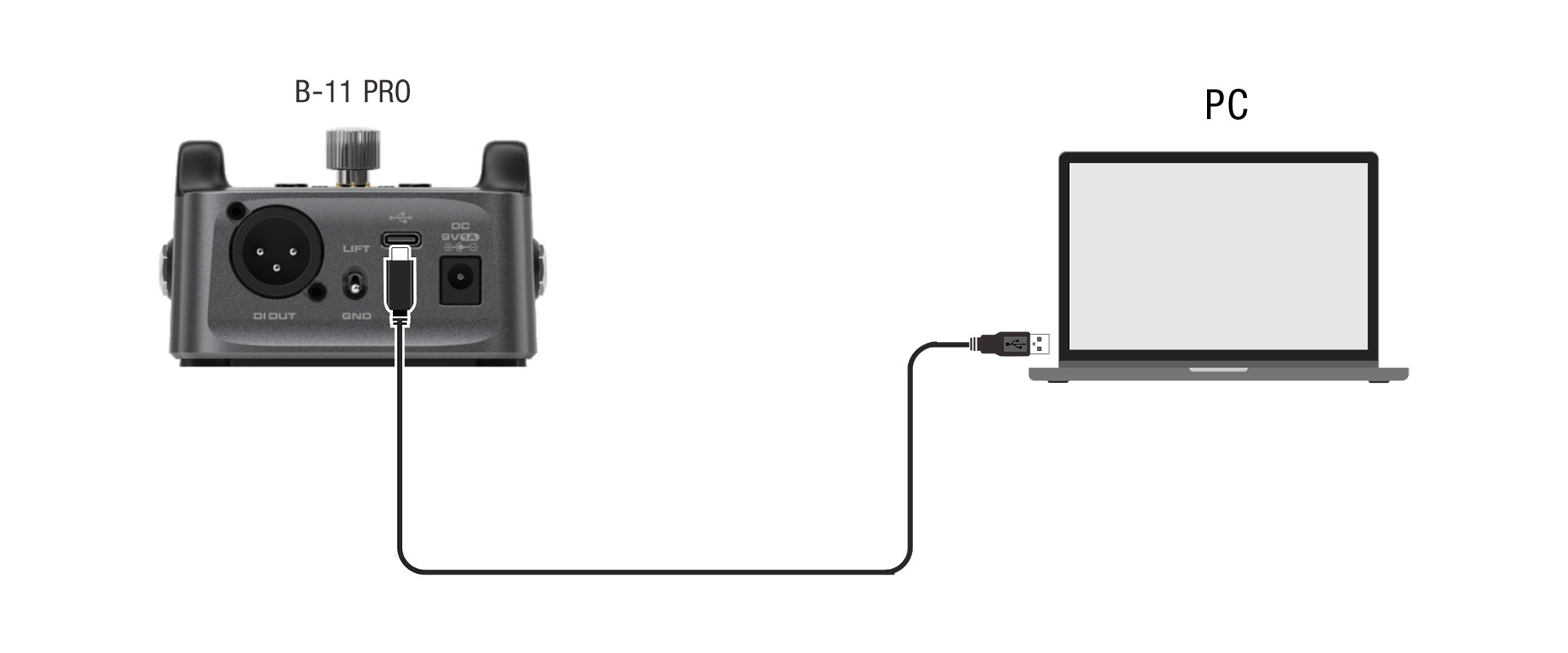

2. Use the included USB cable to connect the B-11 PRO RX (Receiver) to your computer. Launch the GIF Customizer software and follow the prompts to upload and save your GIF to the device.
3. Disconnect the USB cable and restart the RX. Navigate to Menu > Display Settings > Boot-up Animation and select “User Image”. Now your B-11 PRO will greet you with your favorite animation every time you turn it on!
– Operating Frequency Band：2.4 GHz ISM (2.4 GHz-2.4835 GHZ)
– Operation Range：Up to 50 m (165 ft)
– Latency：>3.6 ms
– Audio Quality：24 bit / 48 kHz
– Frequency Response：20 Hz – 20 kHz
– OUTPUT Dynamic Range：112dBA (SEND/OUTPUT)
– Transmitter Battery Life Time：Up to 6.5 hours
– Receiver Battery Life Time：Up to 11 hours
– Wireless Frequency-hopping
– Reverb effects
– Boost effects
– Send/Return circuit
– Multiple EQ for violin/viola
– Digital tuner for violin/viola
– Condenser instrument Microphone
Microphone
– Microphone Type: Condenser
– Polar Patterns: Cardioid
– Microphone Sensitivity: -46 dB
Transmitter / Receiver
– Operating Frequency Band: 2.4 GHz ISM (2.4 GHz–2.4835 GHz)
– Transmission Power: < 10 mW EIRP
– Operation Range: Up to 50 m (165 ft)
– Latency: 3.6 ms (Low Latency), 6.1 ms (Default), 9.9 ms (Stable)
– Sampling Depth / Sampling Rate: 24 bit/48 kHz
– Frequency Response: 20 Hz–20 kHz
– Maximum Audio Signal Output: 6.4 dBV (SEND/OUTPUT)
– THD+N: < 0.01% (Typical)
– OUTPUT Dynamic Range: 112 dBA (SEND/OUTPUT)
– Battery Capacity: Transmitter (3.7 V/450 mAh), Receiver (3.7 V/3000 mAh)
– Battery Life Time: Transmitter (Up to 6.5 hours), Receiver (Up to 11 hours)
– Power Supply: DC 9 V, 1 A (not less than), positive outside, negative inside (receiver)
– Transmitter Dimensions (without microphone): 44.6 mm (L) × 55.5 mm (W) × 18.1 mm (H)
– Transmitter Weight (without microphone): Approximately 33 g
– Receiver Dimensions: 90.4 mm (L) × 115.3 mm (W) × 54.8 mm (H)
– Receiver Weight: Approximately 468 g
