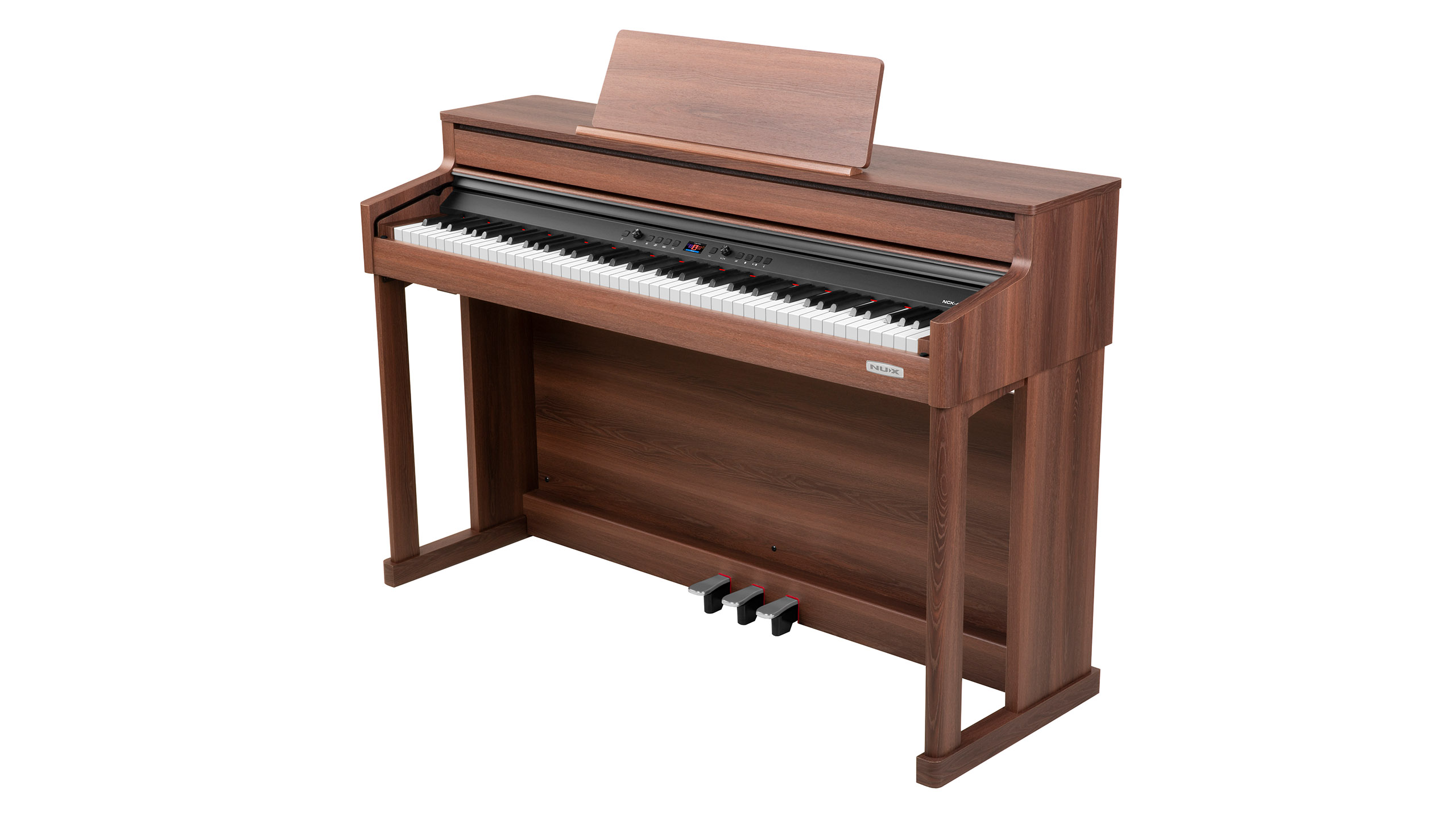

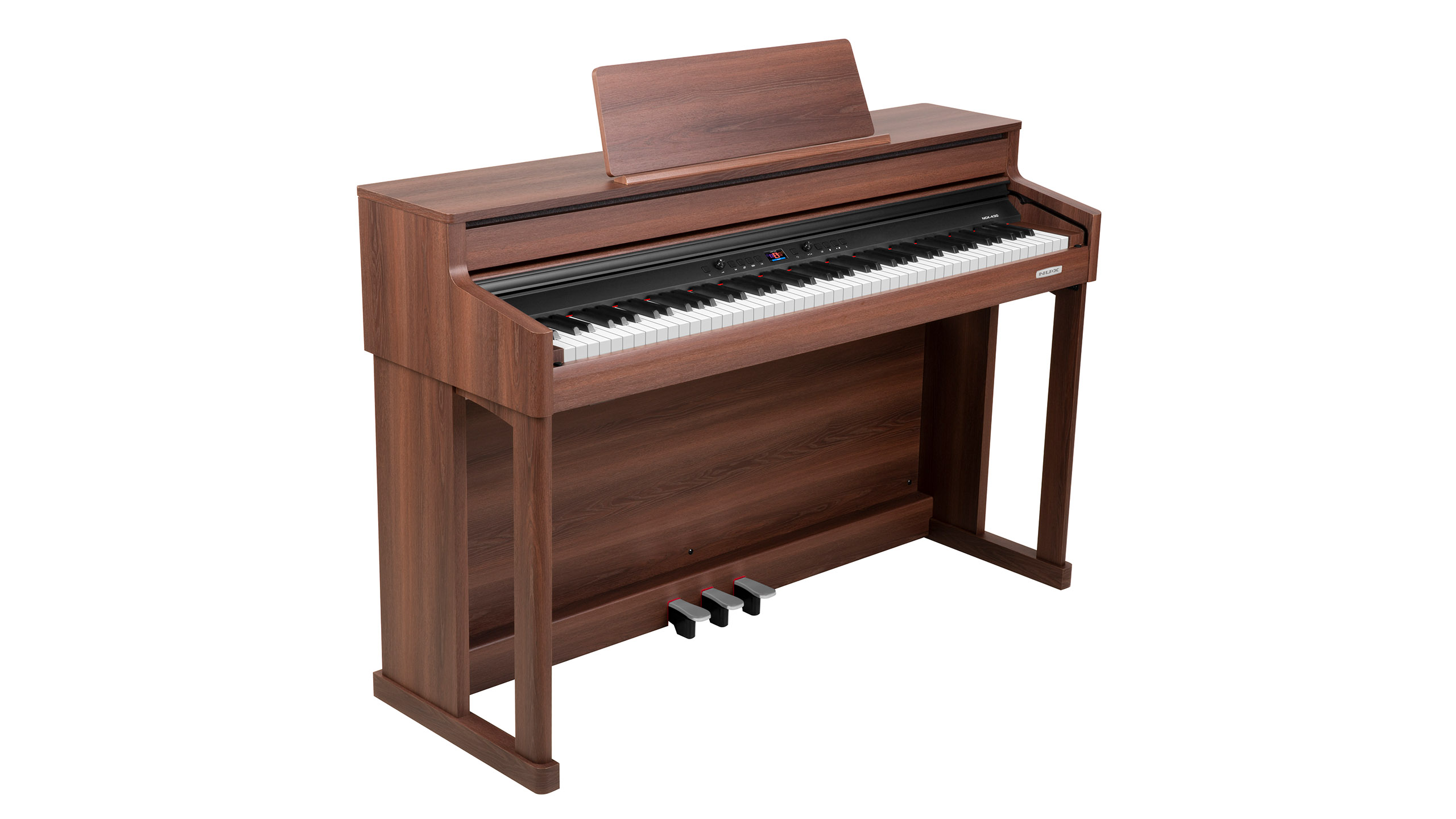

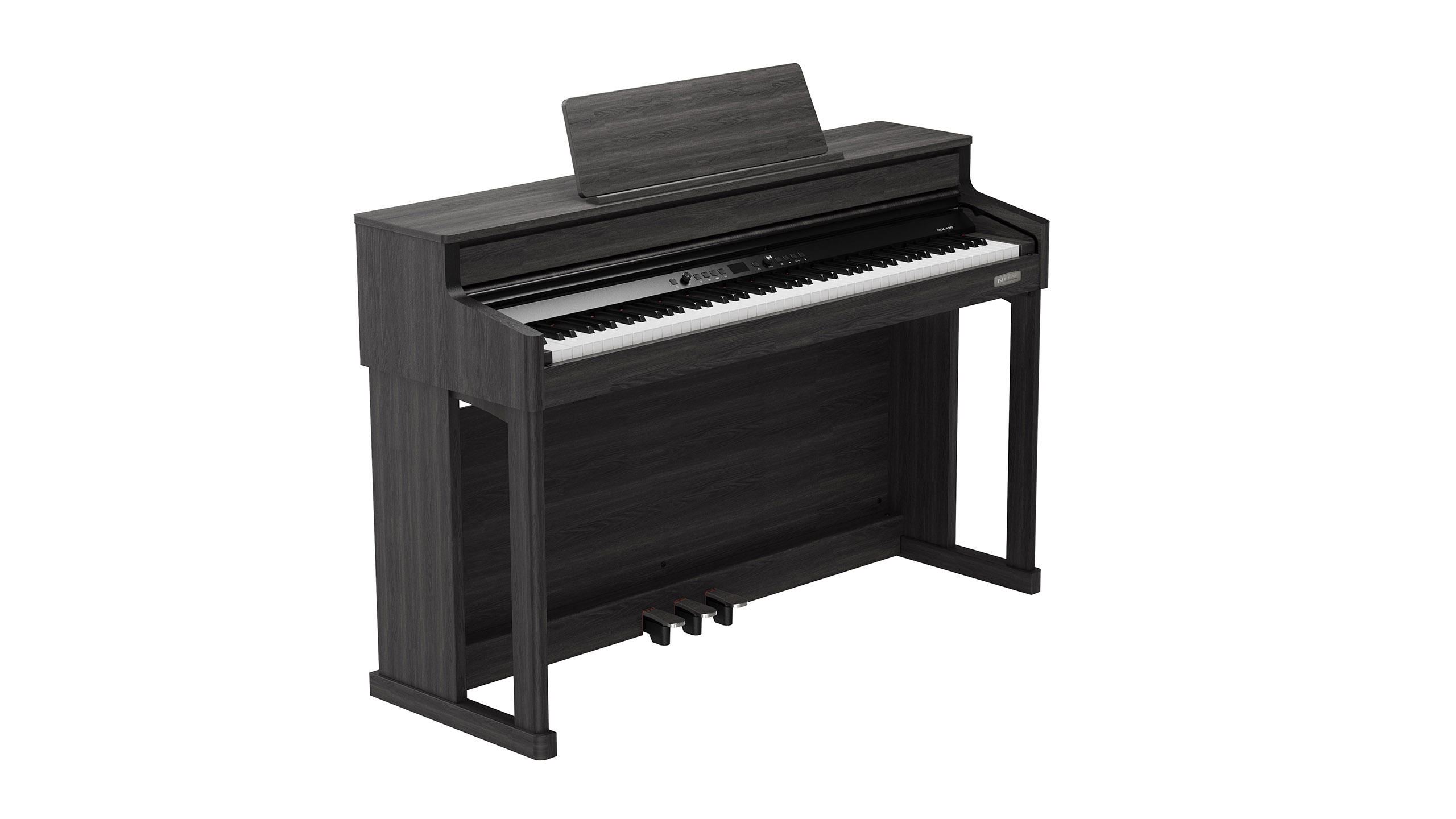

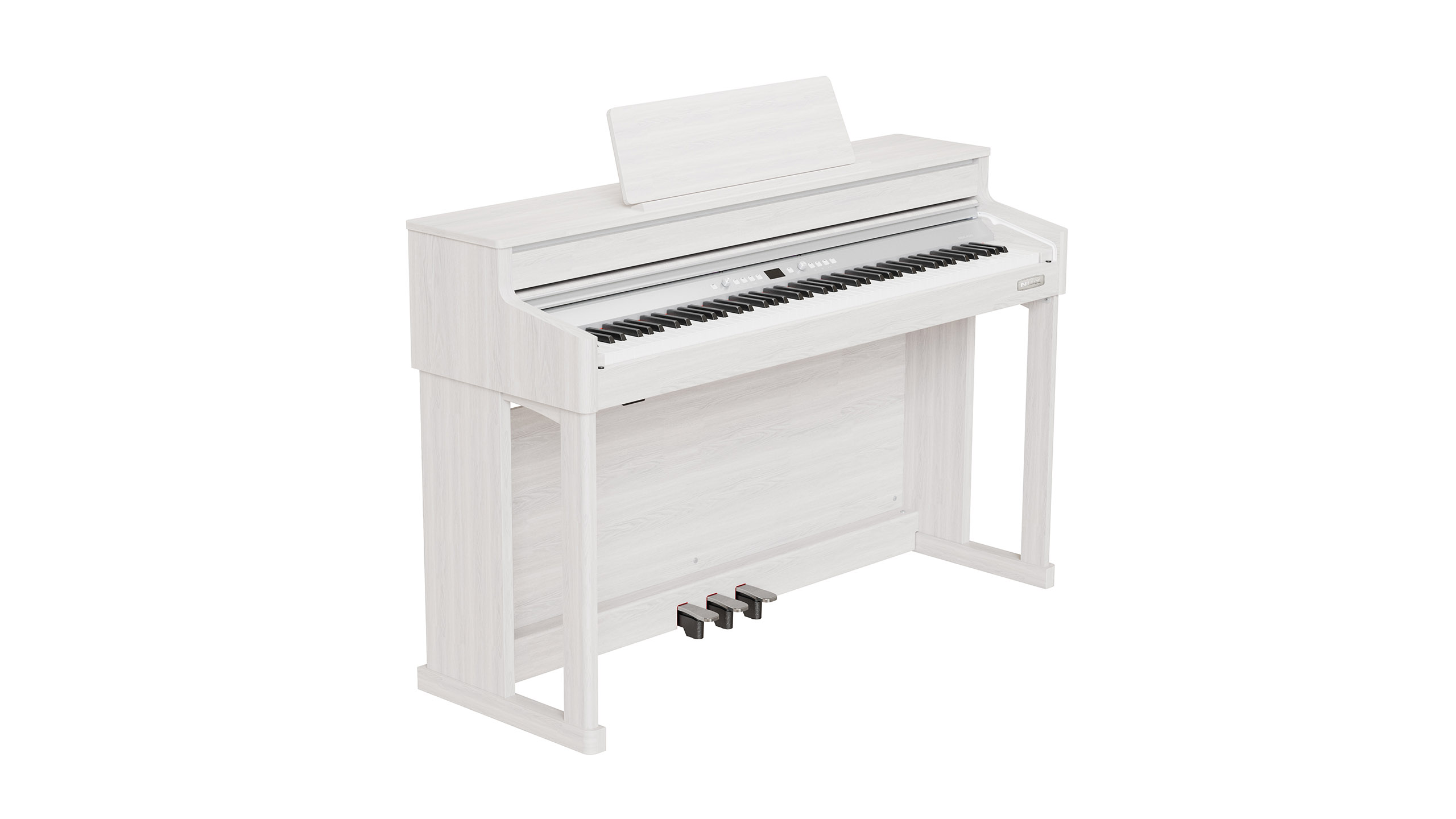

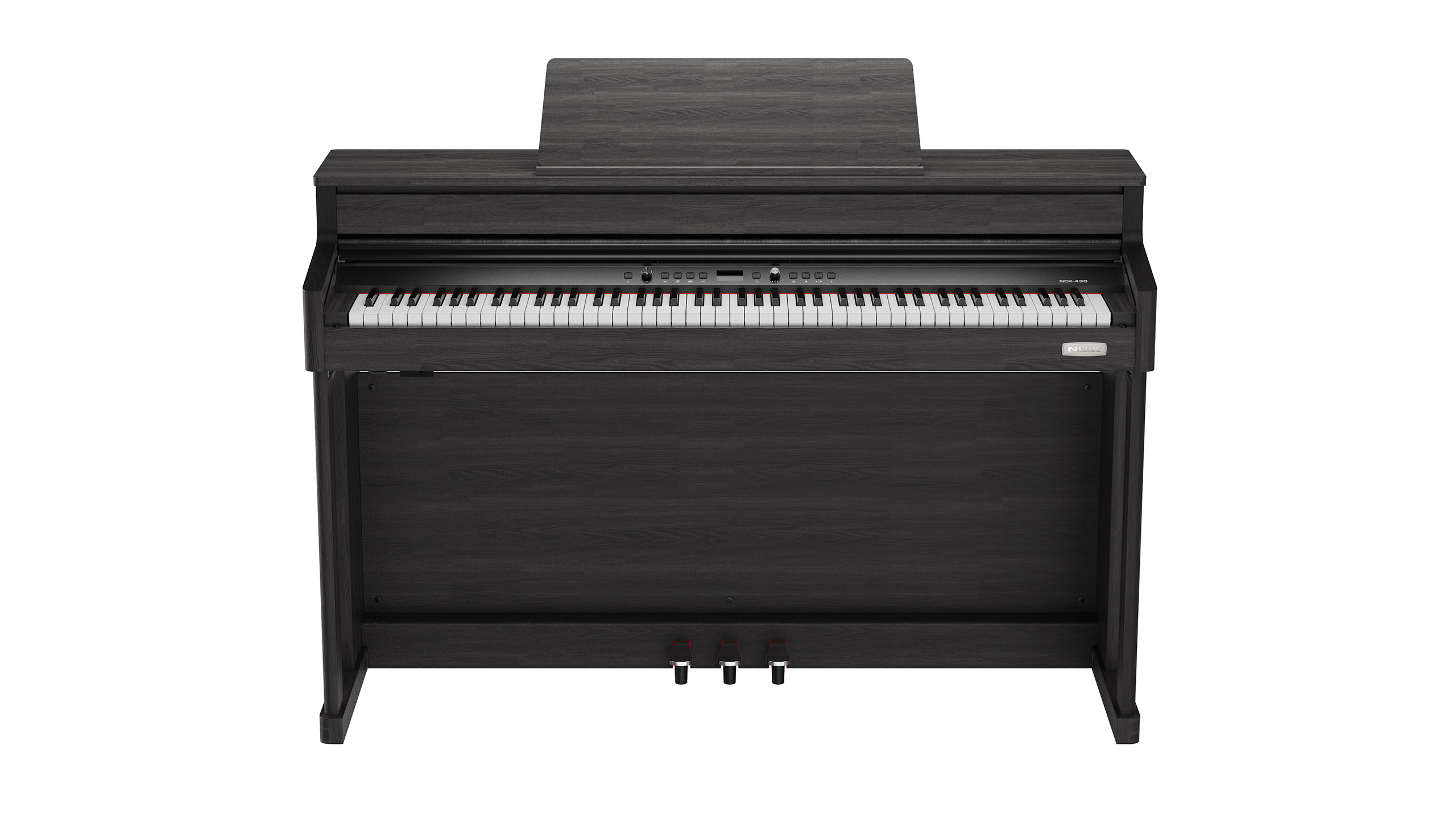

NCK-430
Refined Design, Authentic Performance

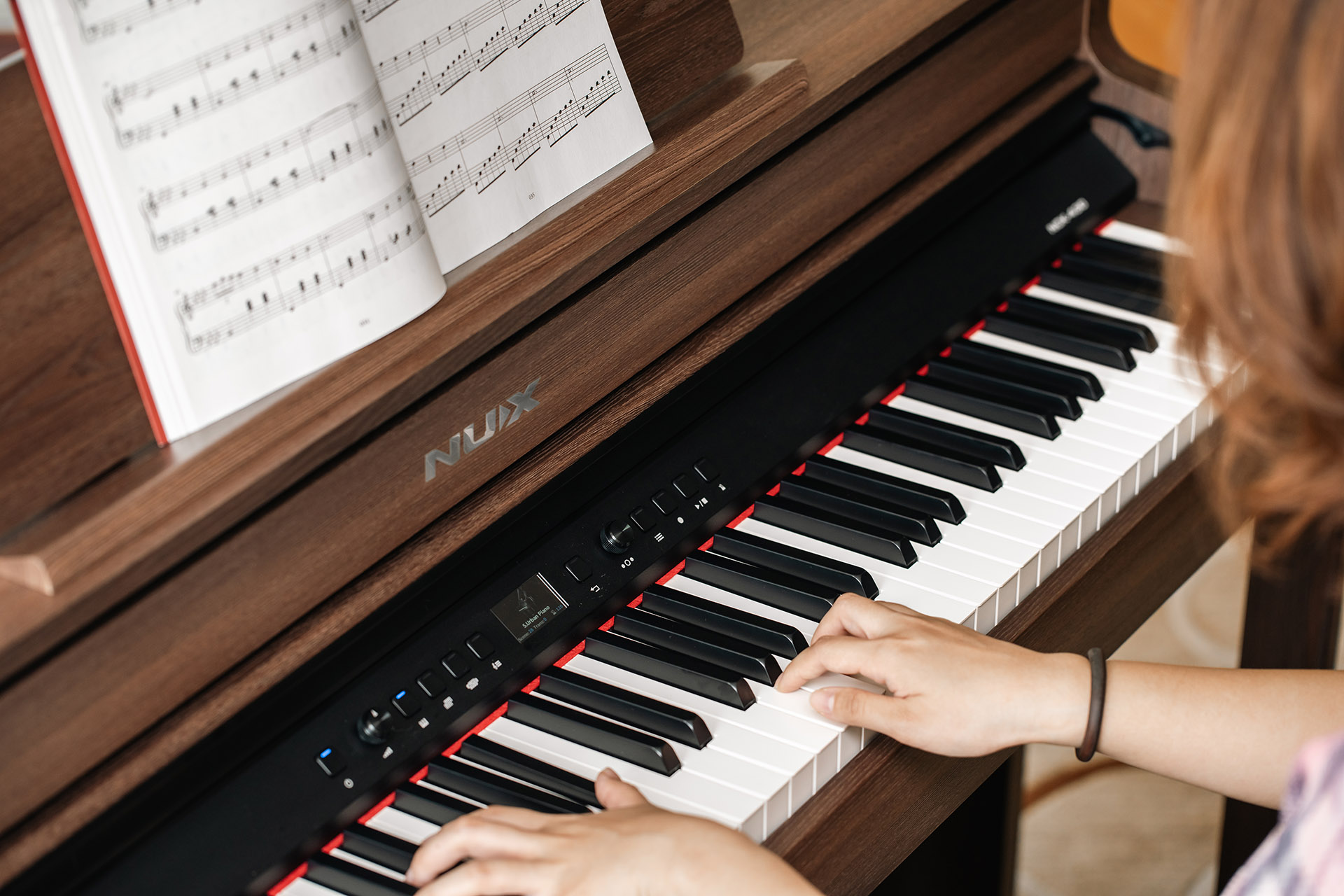

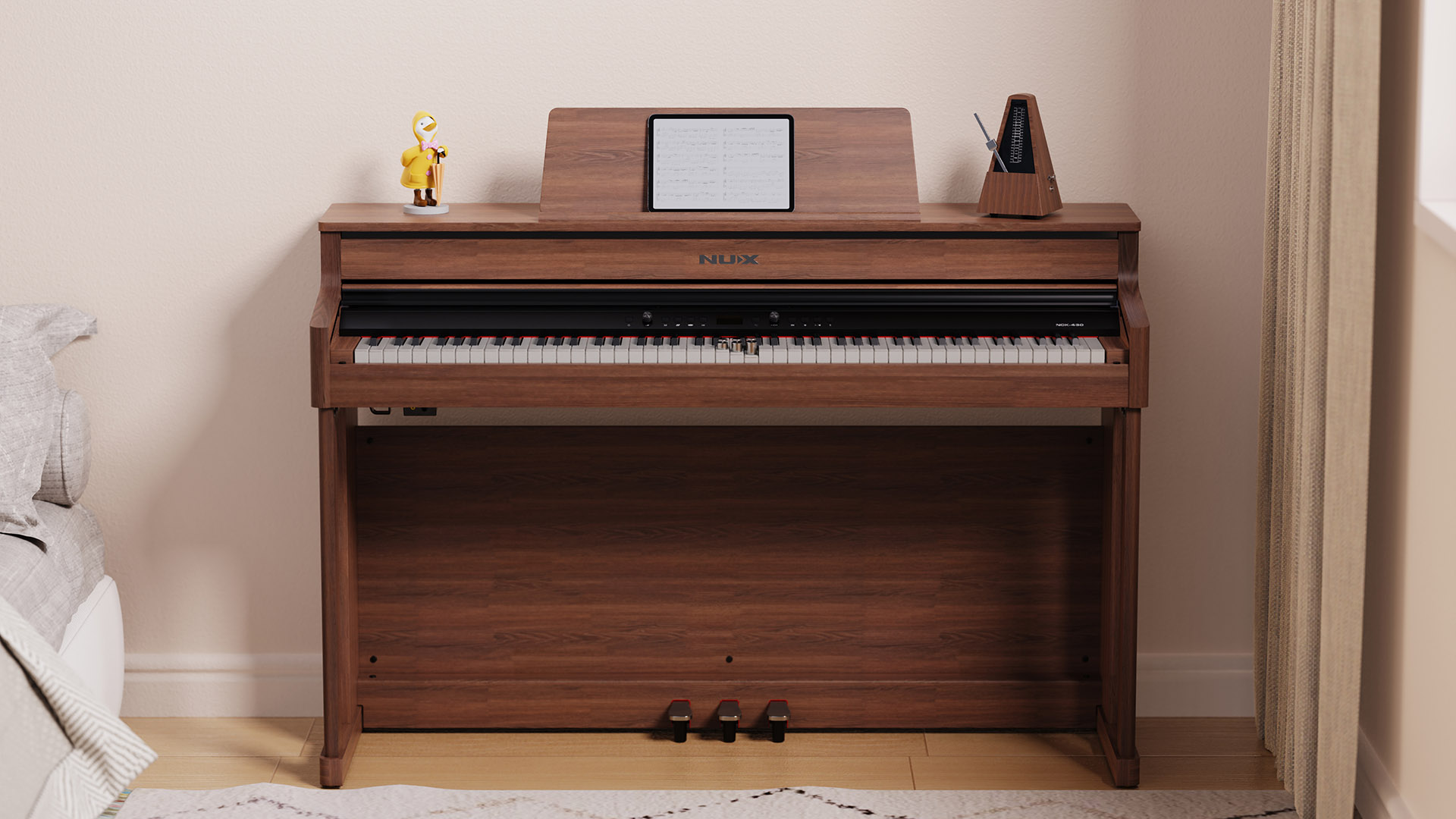

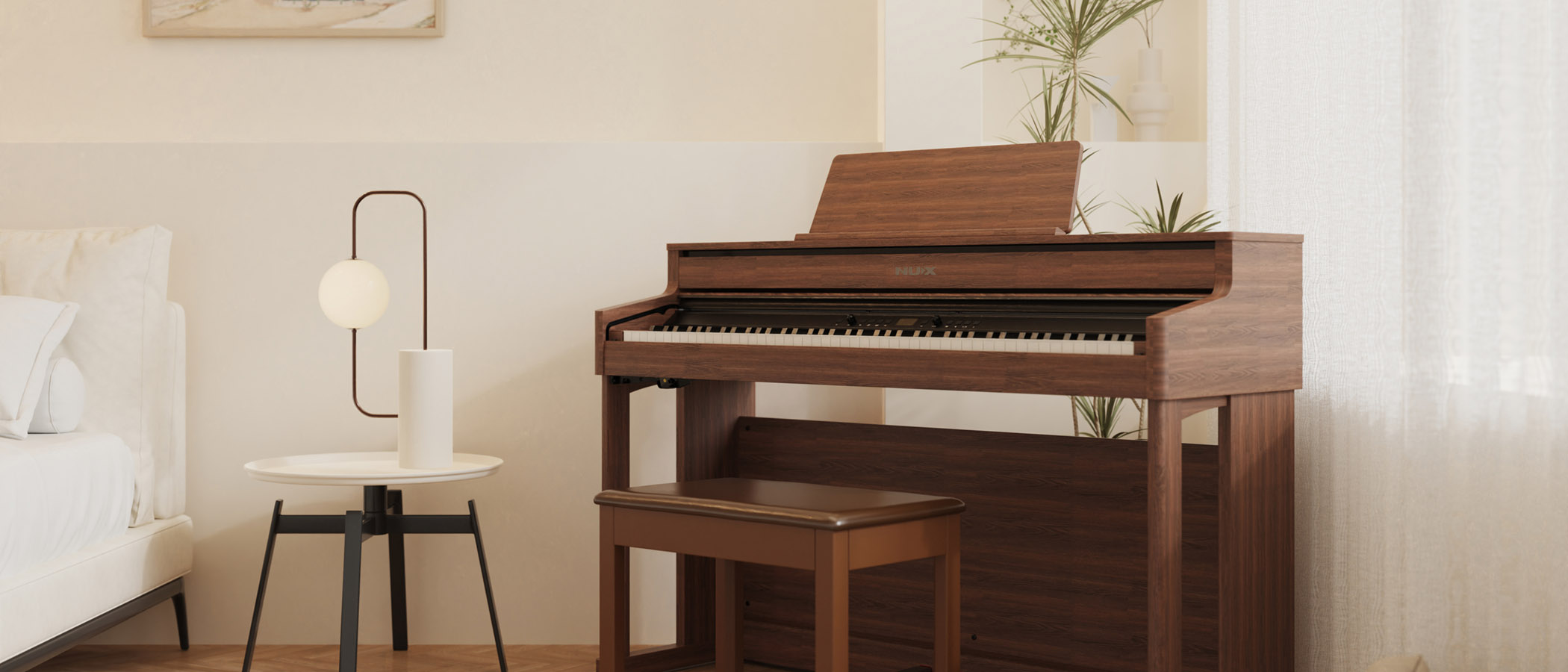

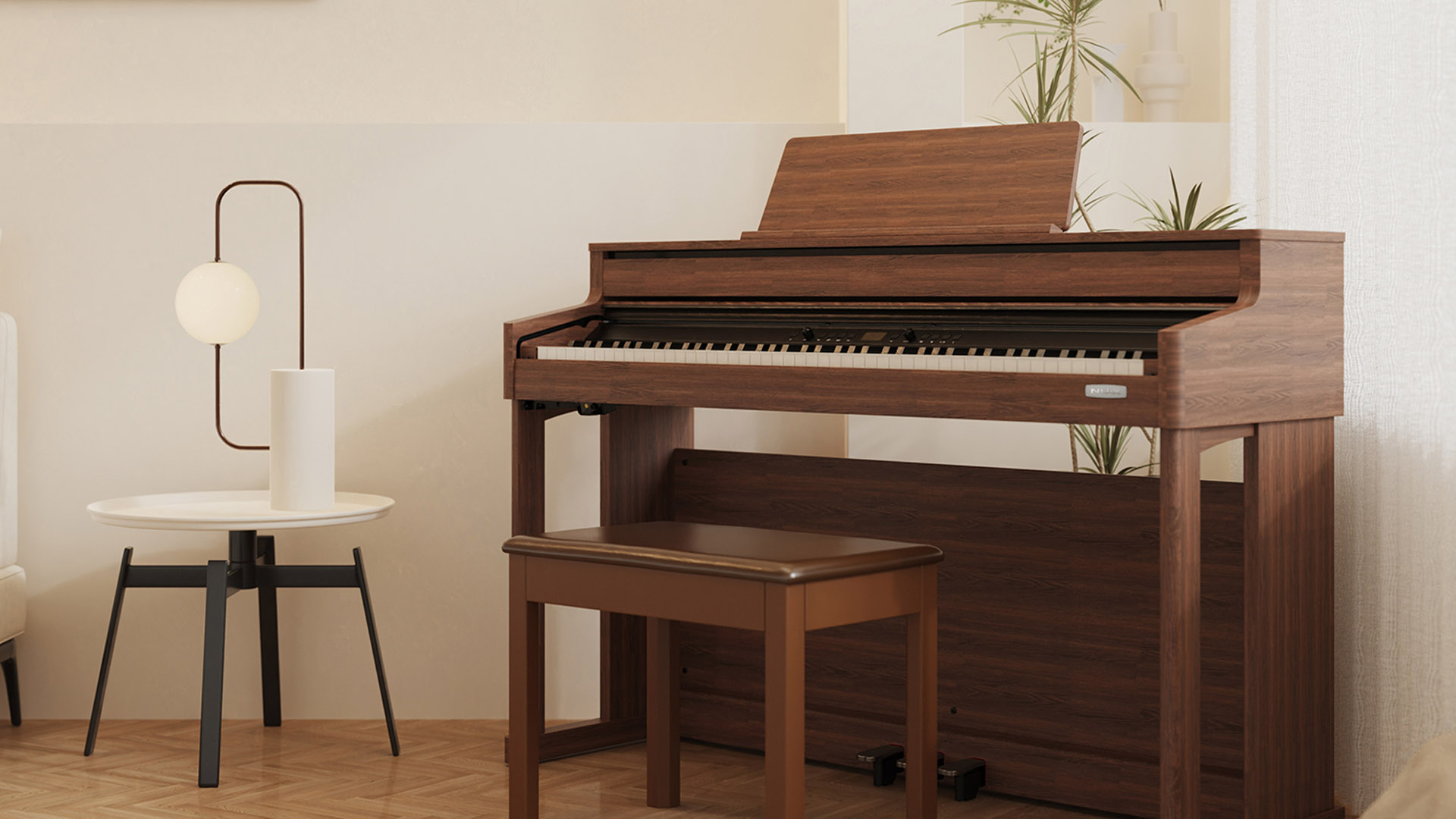

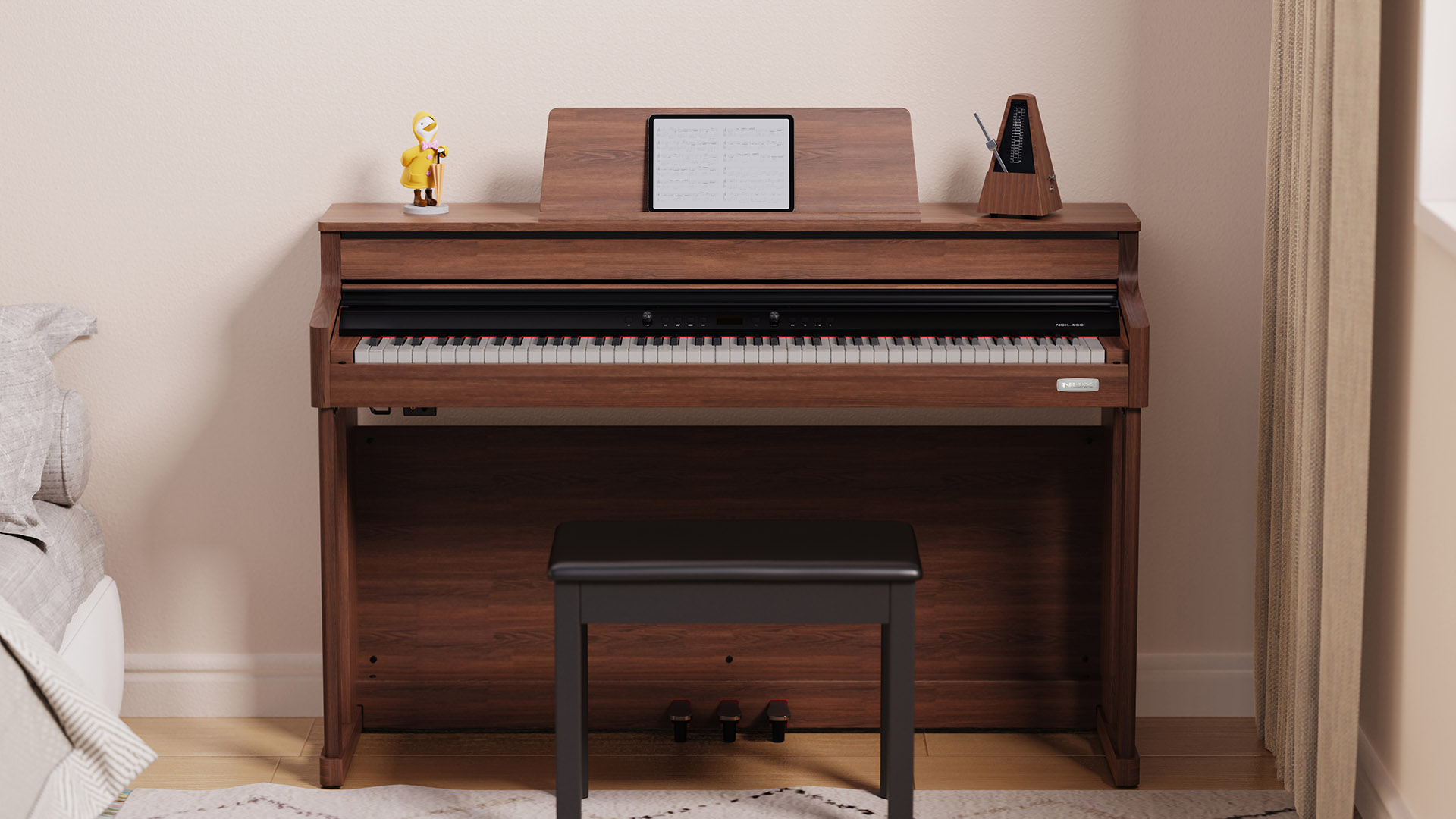

The NUX NCK-430 is built for players who want a natural piano experience in a modern instrument. Its 18-layer sampled piano tone captures expression from the softest pianissimo to the strongest fortissimo. A bi-amp, four-speaker system reproduces string resonance and pedal response with clarity, creating the feel of a real concert piano at home or in the studio.
With Bluetooth Audio & MIDI, USB Audio & MIDI recording, OTG mobile recording, and app/software integration, it’s ready for practice, performance, or content creation. The TRRS headphone/microphone jack supports both monitoring and vocal recording—ideal for lessons and livestreams—while the USB port can power mobile devices for uninterrupted play.
The Touch of a Grand Piano, Let Your Fingertips Access the Detail

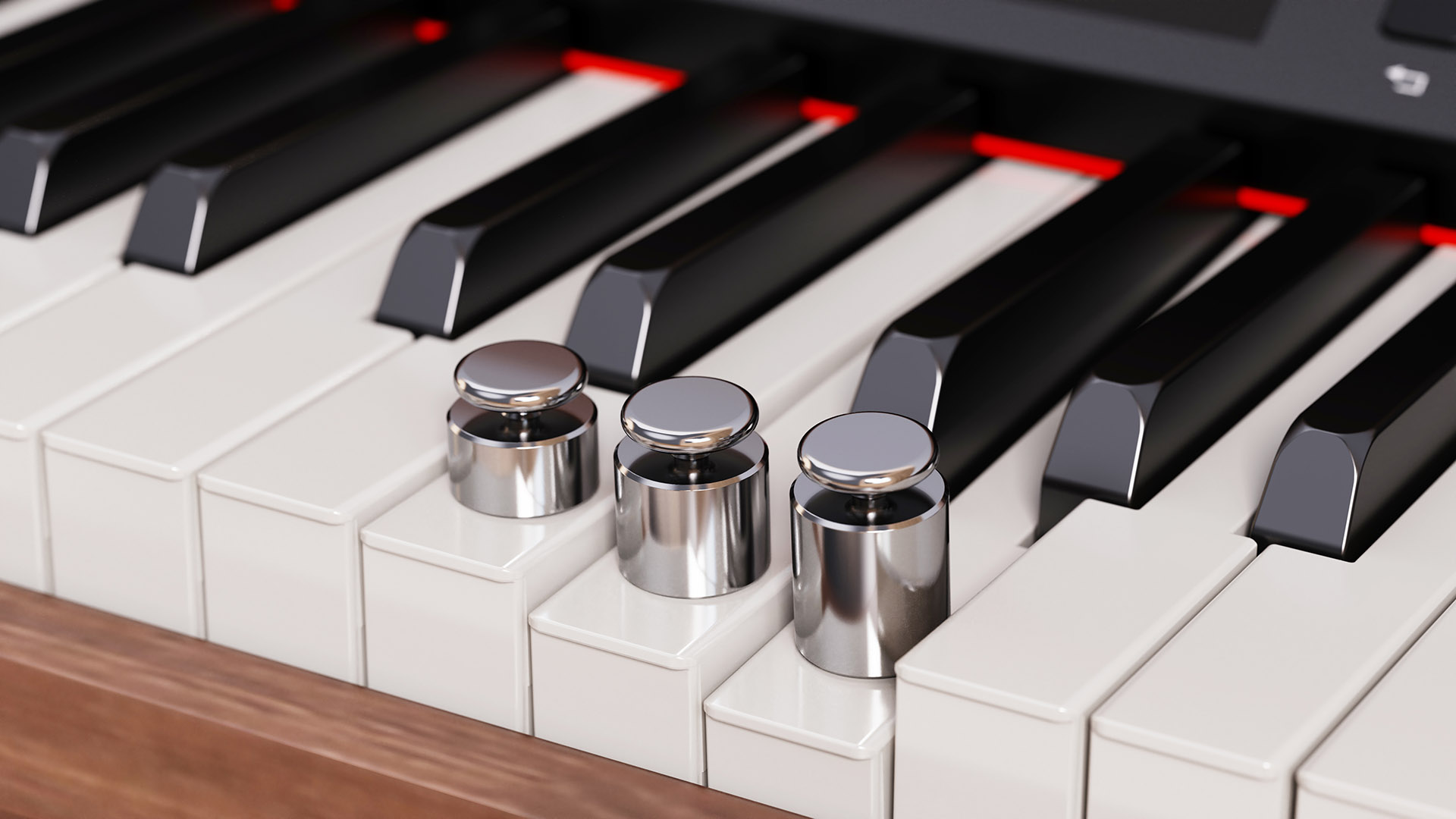

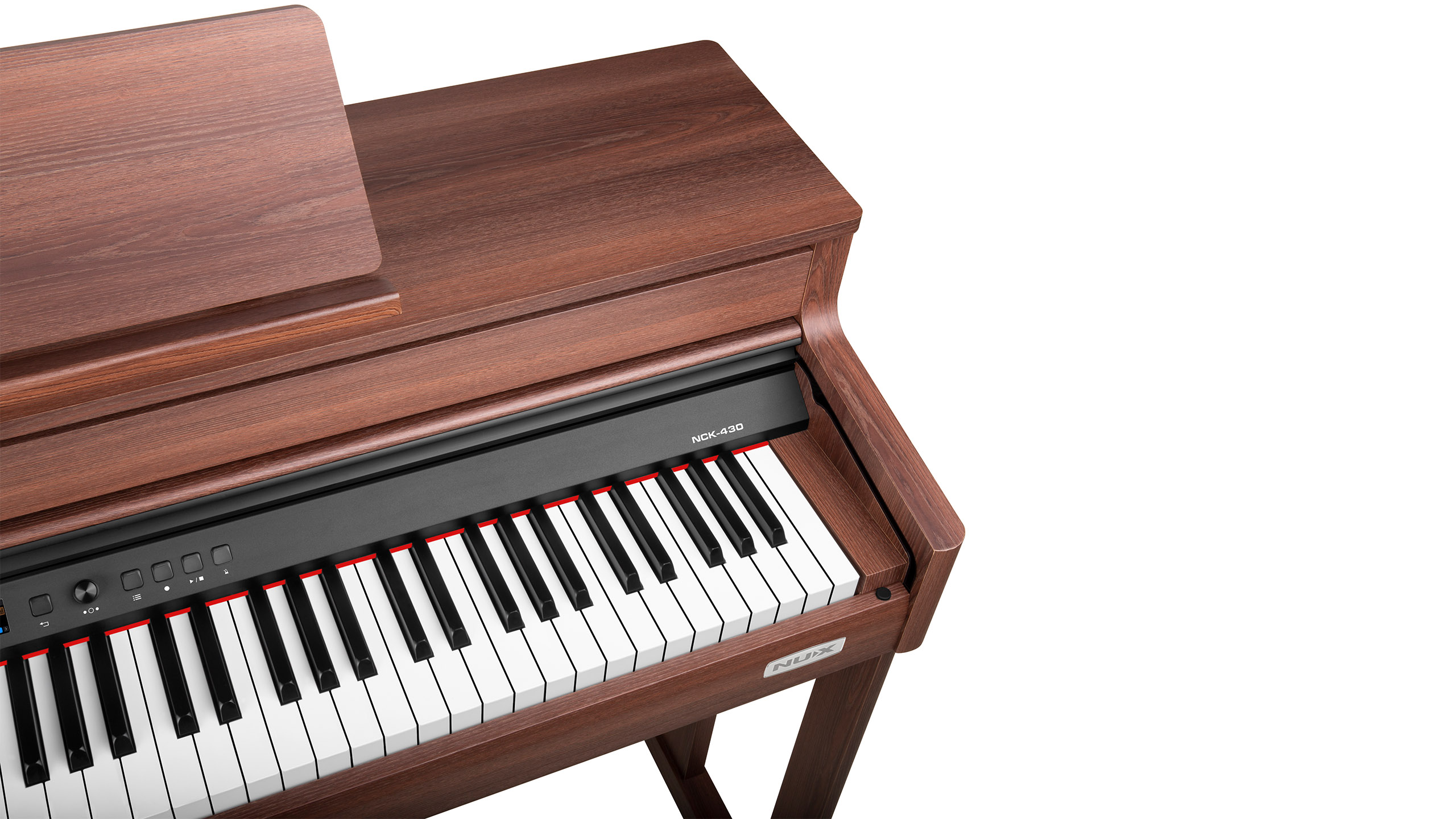

The NCK-430 features NUX’s proprietary WKJ-03 triple-sensor graded hammer-action keyboard with escapement, delivering the authentic response of an acoustic piano. Its keys are finished with simulated ivory and ebony textures for a natural feel. With seven optimized touch curves, players can choose the response that best matches their style, ensuring a truly personalized playing experience.
Pedal Resonance and String Sympathetic Vibration, Now Kicking in
With 18-layer piano sampling, the NCK-430 captures every nuance of a concert grand, from the softest touch to the most powerful chords. Enhanced with pedal and string resonance, it delivers the natural vibrations and rich harmonics of an acoustic piano, bringing digital realism to new heights.

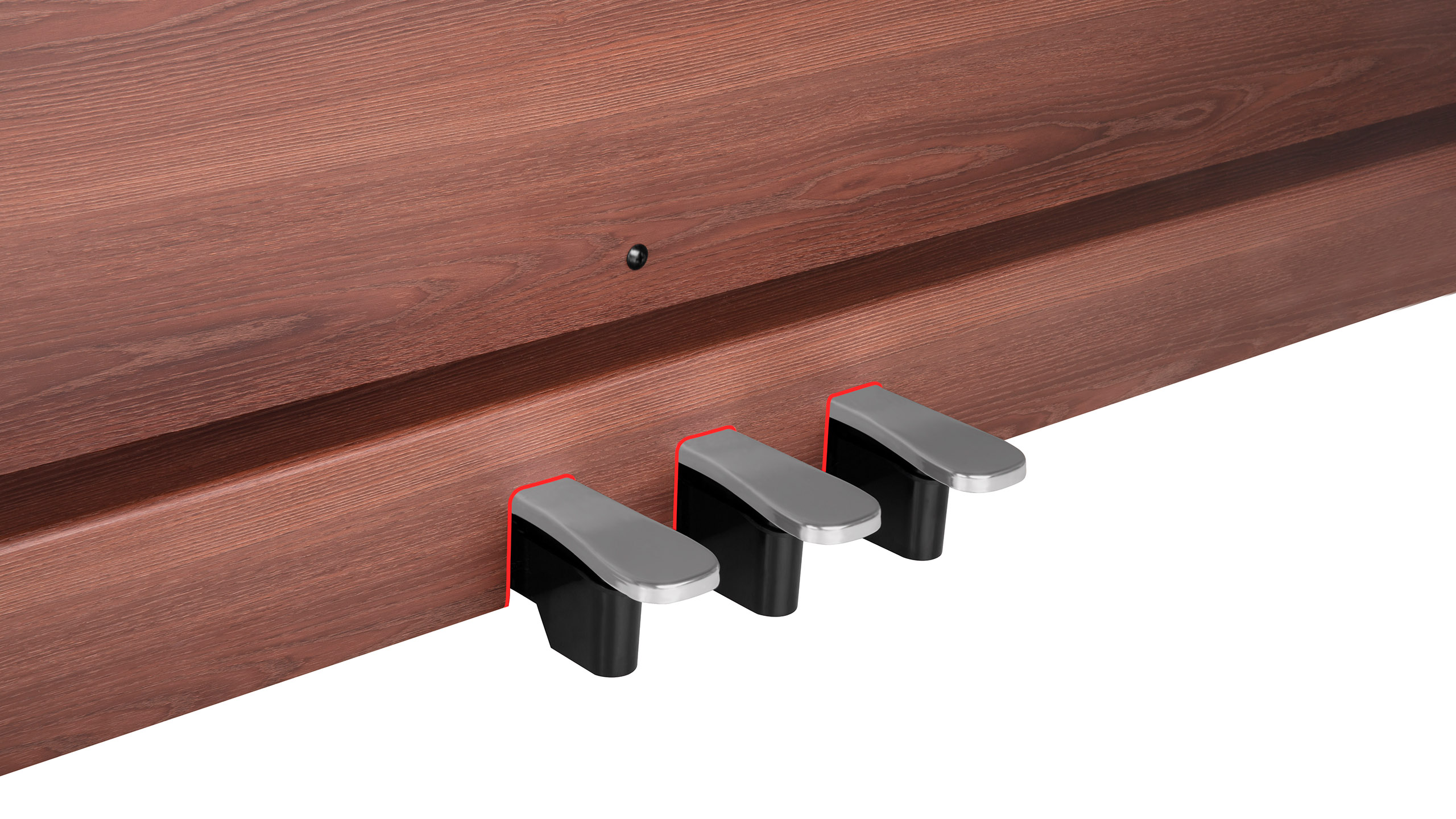

3 Customizable Pedals with Half-damper Support
On an acoustic piano, the damper pedal doesn’t simply act as an on/off switch—its depth of movement creates a wide range of tonal effects. The NCK-430 faithfully recreates this nuance with half-damper capability, capturing the subtle and expressive qualities of high-end grands and uprights.
Going further, it breaks free from the limitations of traditional pedals, allowing full customization. Players can assign functions such as sustain, soft, sostenuto, vibrato, volume, pitch up, or pitch down, tailoring the pedals to their unique performance needs.
Seamless USB Integration for Recording and Streaming

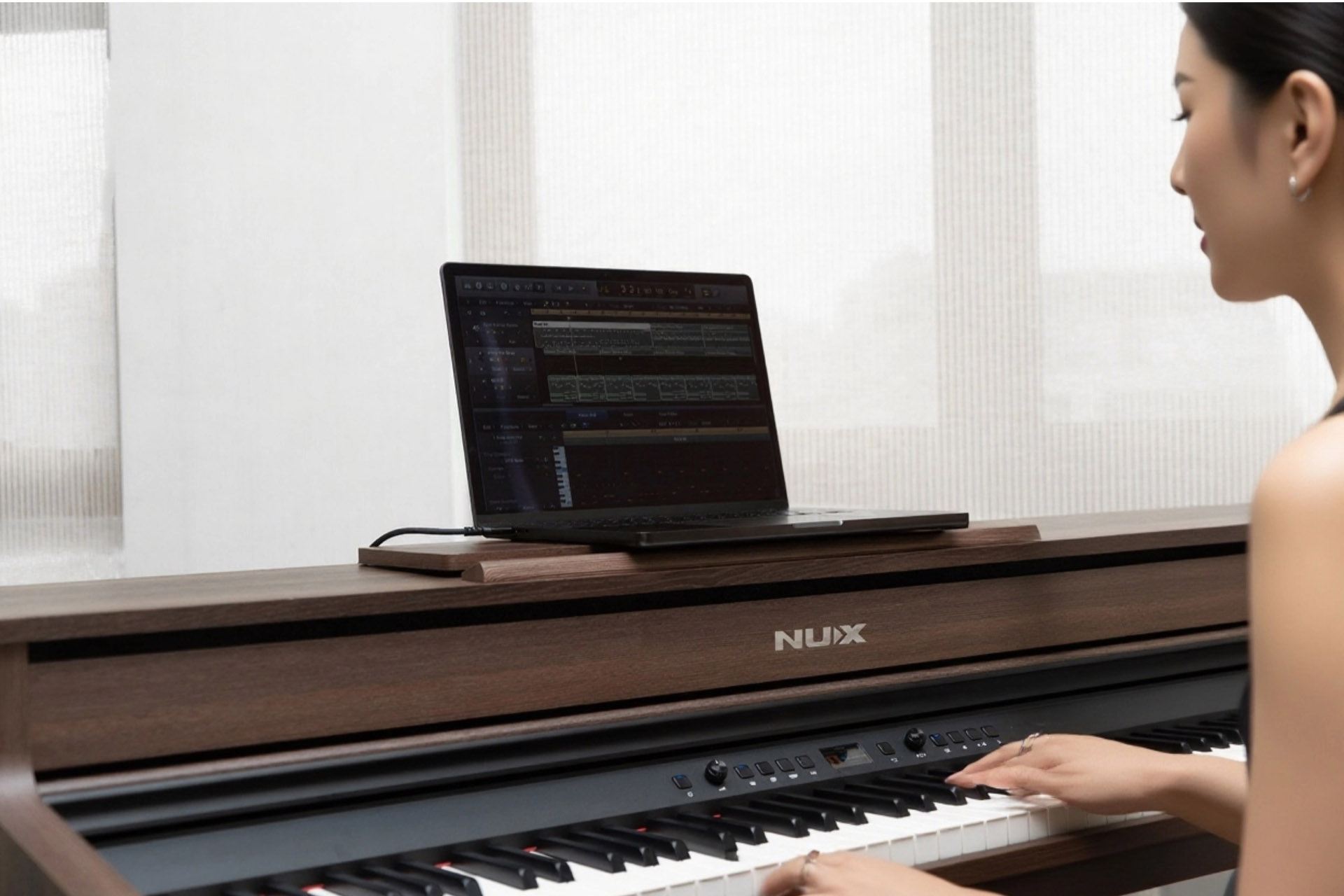

The NCK-430 connects seamlessly to external devices via USB and provides 10W power output for mobile gear. With just a single USB cable, you can capture lossless, studio-quality audio from the instrument, microphone, Bluetooth, or AUX input, and route it directly into your computer or mobile device. Perfect for recording, livestreaming, or content creation without extra interfaces.
When local sound is disabled, the NCK-430 functions as a MIDI controller to trigger virtual instruments, with playback through its built-in dual-way speaker system—ideal for modern music production setups.
A Wide Palette of Effects and Presets

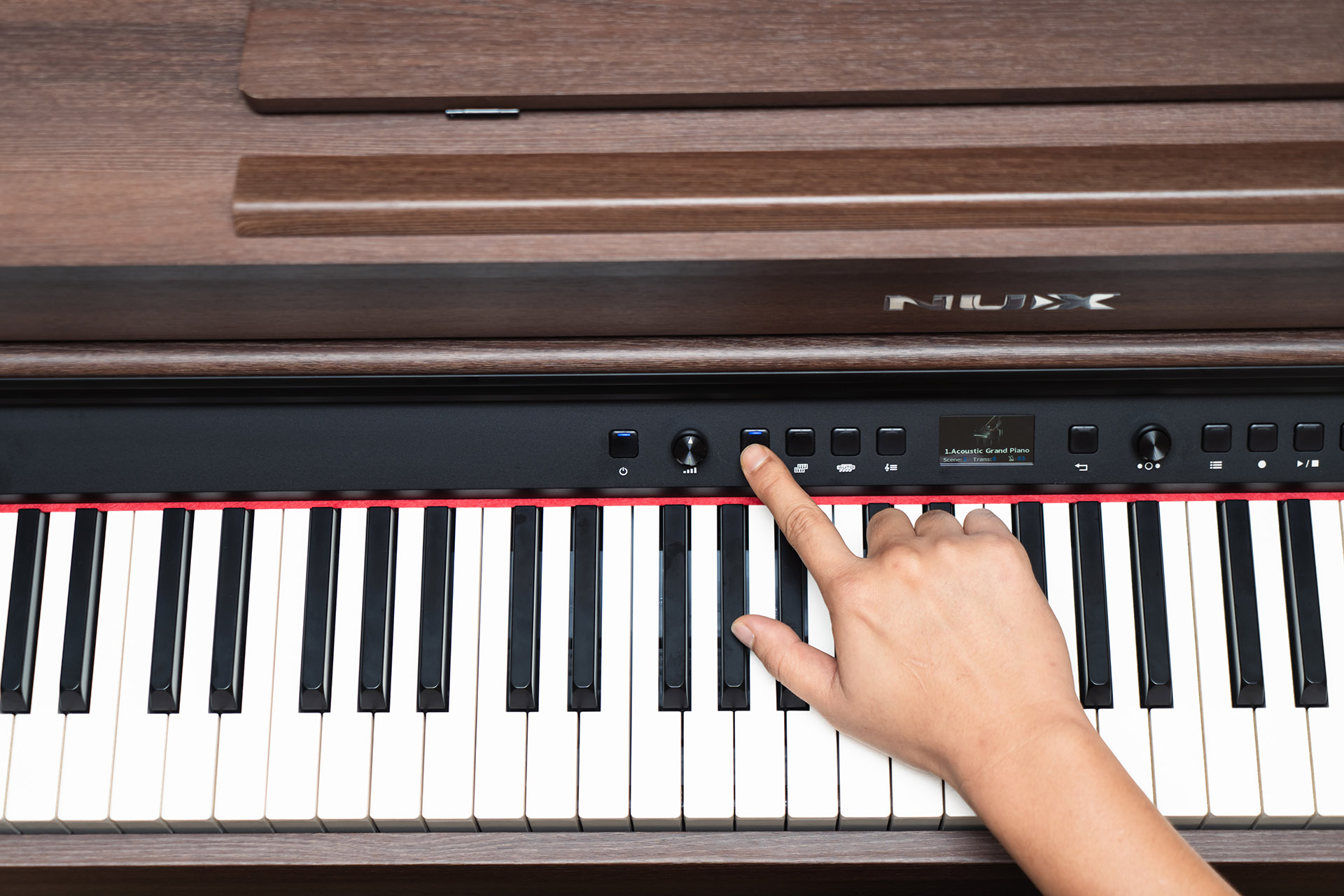

The NCK-430 comes with preset effect chains that recreate classic styles from different eras—whether it’s the majestic reverb of Vienna’s Golden Hall or the iconic electric piano tones of the 1990s. With 20 artist-designed presets, plus 20 main voices and 130 additional tones, you have endless options to shape your sound to professional standards without complicated setup.
Bluetooth Audio & MIDI

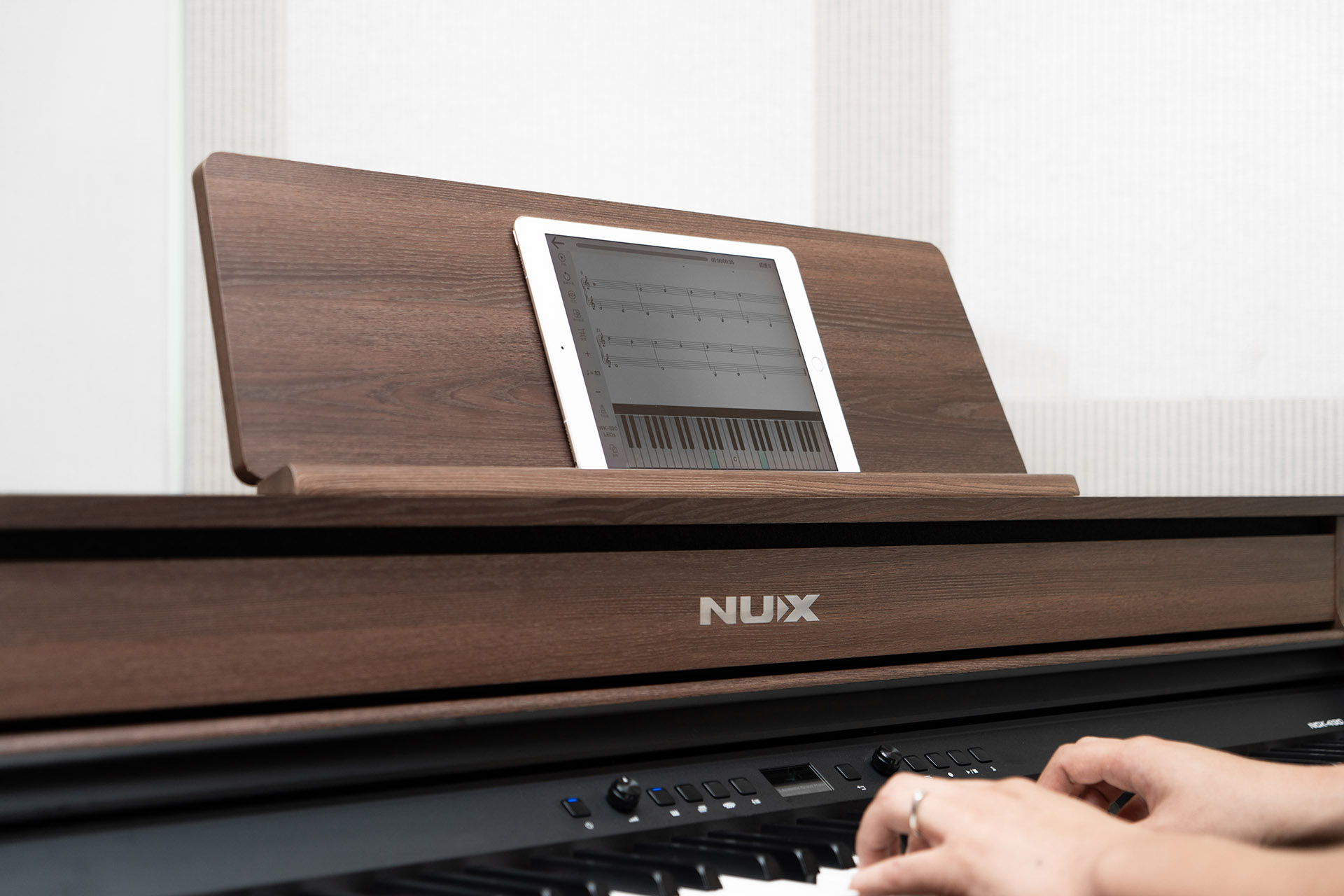

With Bluetooth Audio, the NCK-430 connects to your smartphone or tablet for seamless playback of songs and backing tracks. Meanwhile, Bluetooth MIDI enables integration with the mobile app, making your practice more interactive and convenient.
| NUX NCK Series Comparison |
 |
 |
|
| NCK-330 | NCK-430 | ||
| Cabinet | |||
| Key Cover Style | Folding | Sliding | |

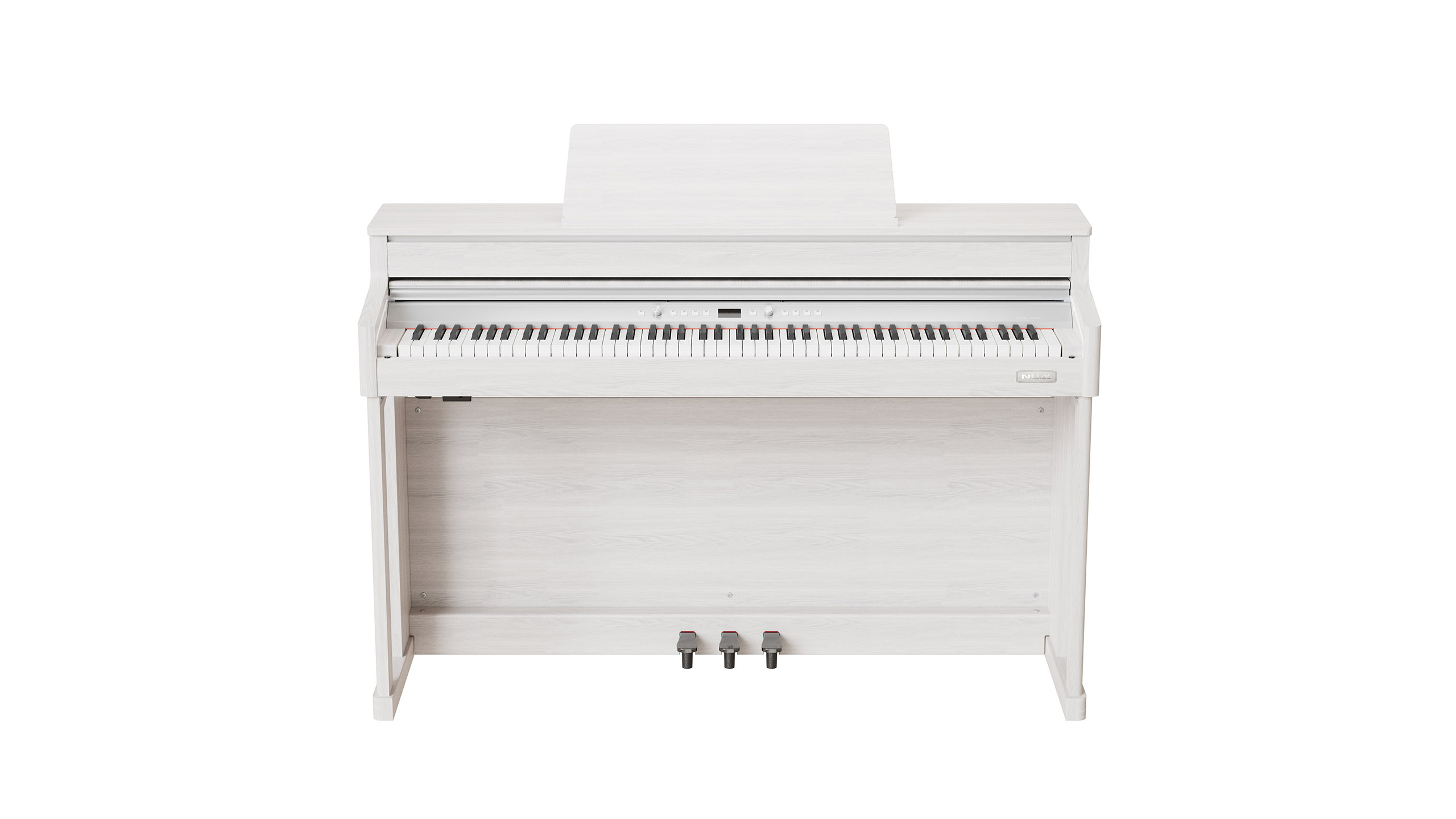

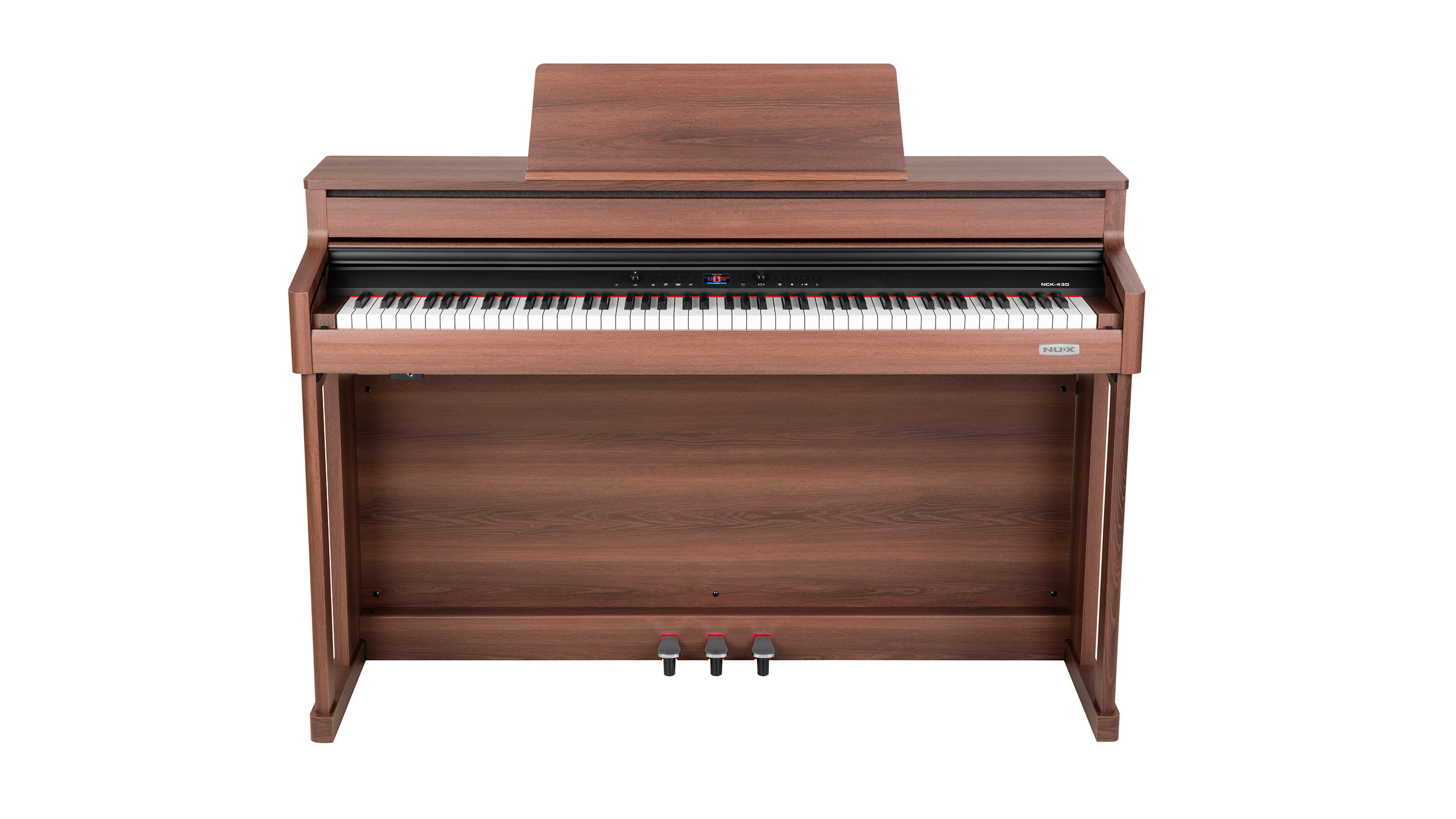

| Color | Black/White | Walnut Wood | |
| Music Rest | Yes | Yes | |
| Control Interface | |||
| Keyboard | Number of Keys | 88 | 88 |
| Type | NUX WKJ-03 triple-sensor scaled hammer-action weighted keyboard (with escapement and synthetic ebony/ivory keytops) | NUX WKJ-03 triple-sensor scaled hammer-action weighted keyboard (with escapement and synthetic ebony/ivory keytops) | |
| Touch Response | 5: Soft 2, Soft 1, Normal, Hard 1, Hard 2 | 10: Soft 6, Soft 5, Soft 4, Soft 3, Soft 2, Soft 1, Normal, Hard 1, Hard 2, Hard 3; Black and white keys can be set independently. | |

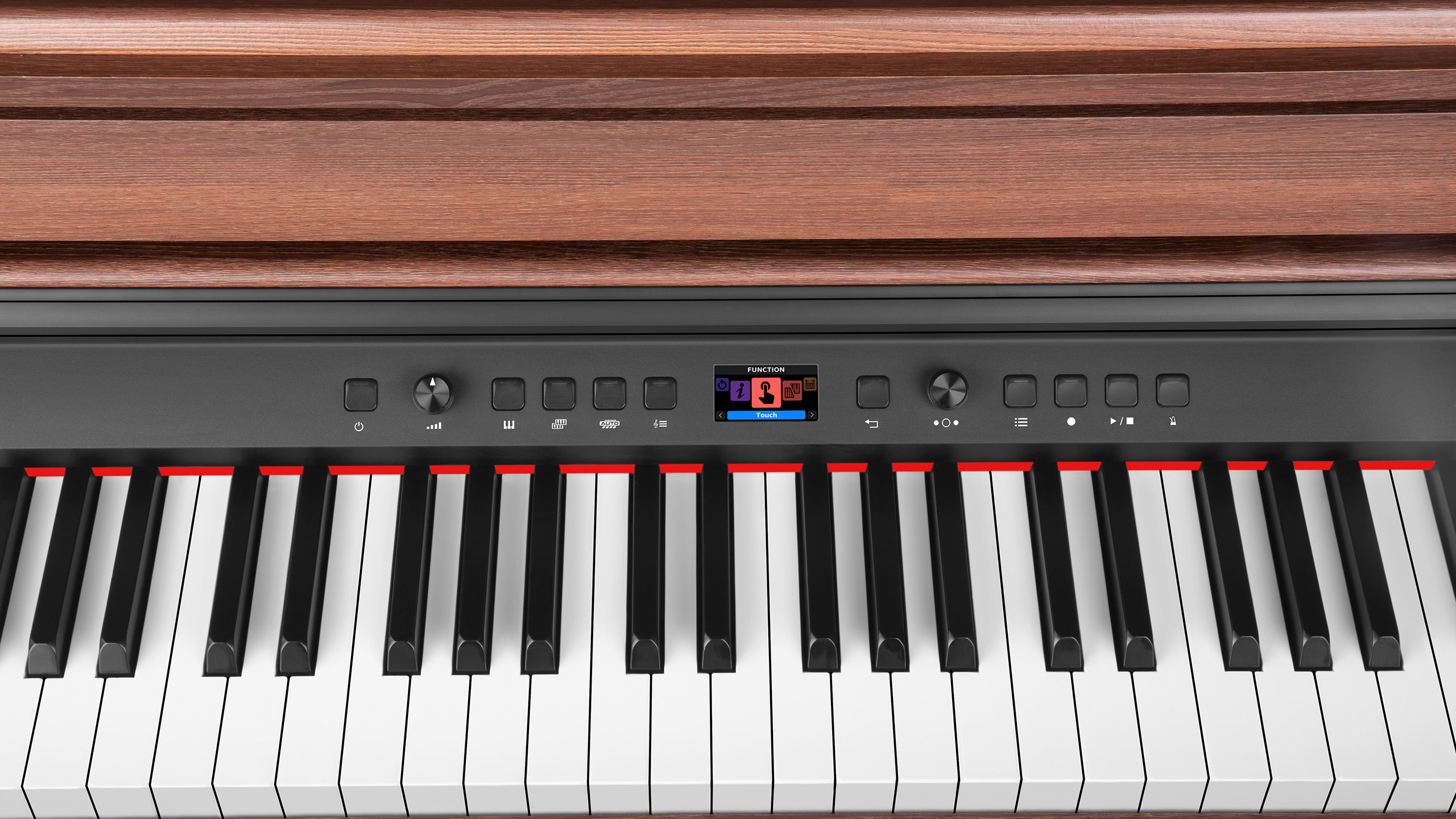

| Display | Type | Resolution 320dpi x 170dpi | Resolution 320dpi x 170dpi |
| Language | English | English | |
| Pedal | Number of Pedals | 7: Damper, Soft, Sostenuto, Modulation, volume | 7: Damper. Soft, Sostenuto, Modulation, Volume, Pitch Up, Pitch Down |
| Half Pedal | Yes (Left, Middle, Right) | Yes (Left, Middle, Right) | |
| Sounds | |||
| Sounds | Piano | 15 | 20 |
| Other | 128 | 130 | |
| Polyphony (Max.) | 256 | 256 | |
| Effect | |||
| Types | Reverb | 3: Room, Hall, Plate Adjustable level (0-100) | 8 Reverb types: 3 Room, 3 Hall, 2 Plate. Adjustable Level and Reverb Time |
| Chorus | Adjustable level (0-100) | Adjustable level, depth and rate | |
| Other Effects | Brightness adjustable (Level 0-100); Speaker EQ (Bright/Normal/Dark) | Brightness adjustable (Level 0-100); Modulation: Vibrato, Tremolo, Flanger, Phaser; 2 Delay types; Speaker EQ (Bright2/Bright1/Normal/Mellow 1/Mellow 2) | |
| Accompaniment & Demo Songs | |||
| Accompaniment | Number of Styles | 50 | 50 |
| Fingering | Single/Multi | Single/Multi | |
| Sync Start | Yes | Yes | |
| Other Functions | Adjustable volume; Tempo | Adjustable volume; Tempo | |
| Demo Song | Number of Songs | 100 (Adjustable volume) | 100 |
| Functions | |||
| Master Control | Metronome | Yes (4 sounds, 9 beats types) | Yes (4 sounds, 9 beats types) |
| Tempo Range | 40~240 BPM | 40～240 BPM | |
| Transpose | ±12 | ±12 | |
| A4 Tuning | 425 Hz ~ 455Hz | 425Hz ~ 455Hz | |
| Performance Mode | Dual / Layer Voice | Supports Dual Voice (Volume balance adjustable) | Supports Dual Voice (Volume balance adjustable) |
| Split | Split point adjustable; Individual octave shift, volume and tone selection for each zone | Split point adjustable; Individual octave shift; Volume and tone selection | |
| Record | Number of Tracks | 5 | 5 |
| Playback | Yes | Yes | |
| Other Functions | Adjustable ACC volume; Single/multi fingering; Sync on/off | Compander | |
| Presets | 5 user presets to save and recall complete performance settings | 5 user presets to save and recall complete performance settings | |
| Other Functions | - | ||
| Sound System | |||
| Amplifiers | 10W *2 | 34W (10W *2，7W *2) | |
| Speakers | 5" *2 | 2-way speaker system 5" *2; 2.5" *2 | |
| Connectivity | |||
| Connectors | Headphones | 3.5mm stereo jack; 6.35mm stereo jack; with headphone hook | 3.5mm stereo jack, with vocal output to mobile devices via USB OTG function; 6.35mm stereo jack; |
| AUX IN | 3.5mm stereo jack | 3.5mm stereo jack | |
| LINE OUT | 6.35mm (L/MONO, R) jacks | 6.35mm (L/MONO, R) jacks | |
| Pedal | Pedal unit jack | Pedal unit jack | |
| USB | USB MIDI, USB Audio (Recording level adjustable) | USB MIDI, USB Audio (Recording level adjustable). 10W power supply to external devices | |
| DC IN | 12V | 15V ⎓ 2.4A（37.5W） | |
| Bluetooth | Bluetooth MIDI, Bluetooth Audio | Bluetooth MIDI, Bluetooth Audio | |
| Other Connectors | - | USB supports OTG recording with mobile devices | |
| Power | |||
| Power Consumption | 20W | 37.5W | |
| Auto Off | 30 mins (adjustable) | Yes, automatically load the last selected tone | |
| Size / Weight | |||
| Dimensions | Length | 1366mm | 1395mm |
| Width | 361mm | 486mm | |
| Height | 791mm | 950mm | |
| Weight | 37.9kg | 56.6kg | |
| Included Accessories | |||
| Included Accessories | NBT-1 Bluetooth Module; AC Adaptor; User Manual | NBT-1 Bluetooth Module; AC Adaptor; User Manual | |
Keyboard
– Model: NUX WKJ-03 triple-sensor, scaled hammer-action weighted keyboard (with escapement)
– Touch Response: 10 levels; black and white keys can be set independently
Sounds
– Piano Sounds: 20 sounds
– Other Sounds: 130 sounds
– Max Polyphony: 256
– Artist Presets: Featuring classic effect presets crafted in collaboration with artists. These include effect chains such as equalizer, chorus, vibrato, delay, reverb, and more, allowing one-click loading for various music styles from different eras.
Pedals
– Pedal Unit: Triple pedal unit with half-pedal support
– Functions: Damper, Soft, Sostenuto, Modulation, Volume, Pitch Up, Pitch Down
Accompaniment & Demo Songs
– Accompaniment: 50 pianist accompaniment styles (single-/multi-fingering, sync start)
– Demo Songs: 100 classic piano pieces
Functions

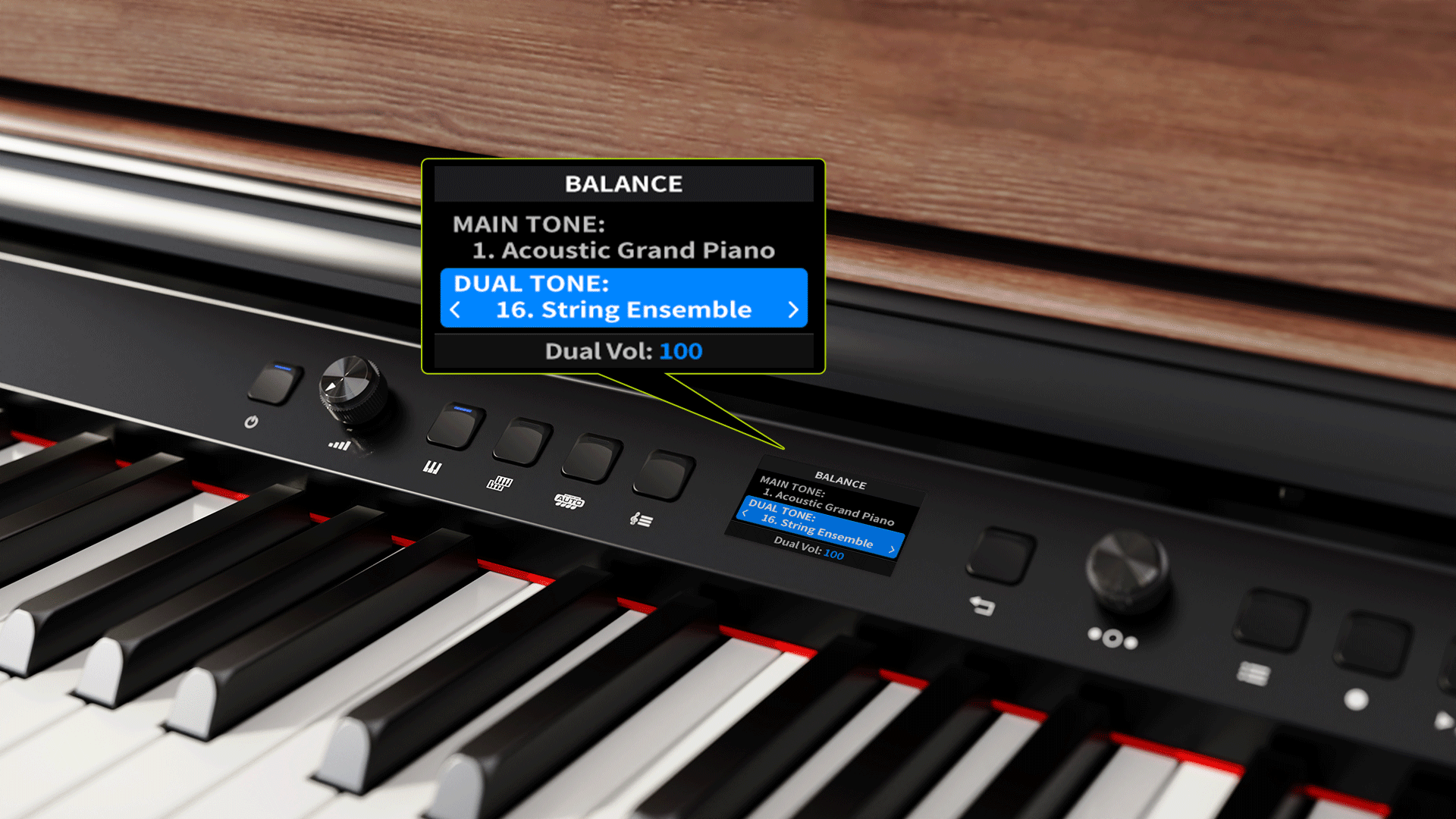

– Layered Sounds: Volume balance adjustable
– Split Keyboard: Split point adjustable; individual octave shift, volume and tone selection
– Transpose: ±12
– A4 Tuning: 425 Hz-455 Hz
– Metronome: 4 sounds, 9 beat types, tempo range 40-240 bpm
– Recording: 5 tracks
– Auto Off: Yes
– Bluetooth: Bluetooth Audio, Bluetooth MlDl
– USB: USB Audio (recording level adjustable), USB MIDI
– Speaker Setting (Room EQ): Five types of speaker effects tailored for rooms with different standing-wave characteristics in high and low frequencies
– Compander: Provide a limiter to enhance the volume during ensemble performances
– Keyboard: NUX WKJ-03 Triple-Sensor Scaled Hammer-Action Weighted Keyboard (with Escapement and Synthetic Ebony/lvory Keytops)
– Bluetooth: Bluetooth Audio, Bluetooth MlDl
– USB: USB Audio (Recording Level Adjustable), USB MIDI
– Display: Resolution 320 x170 dpi

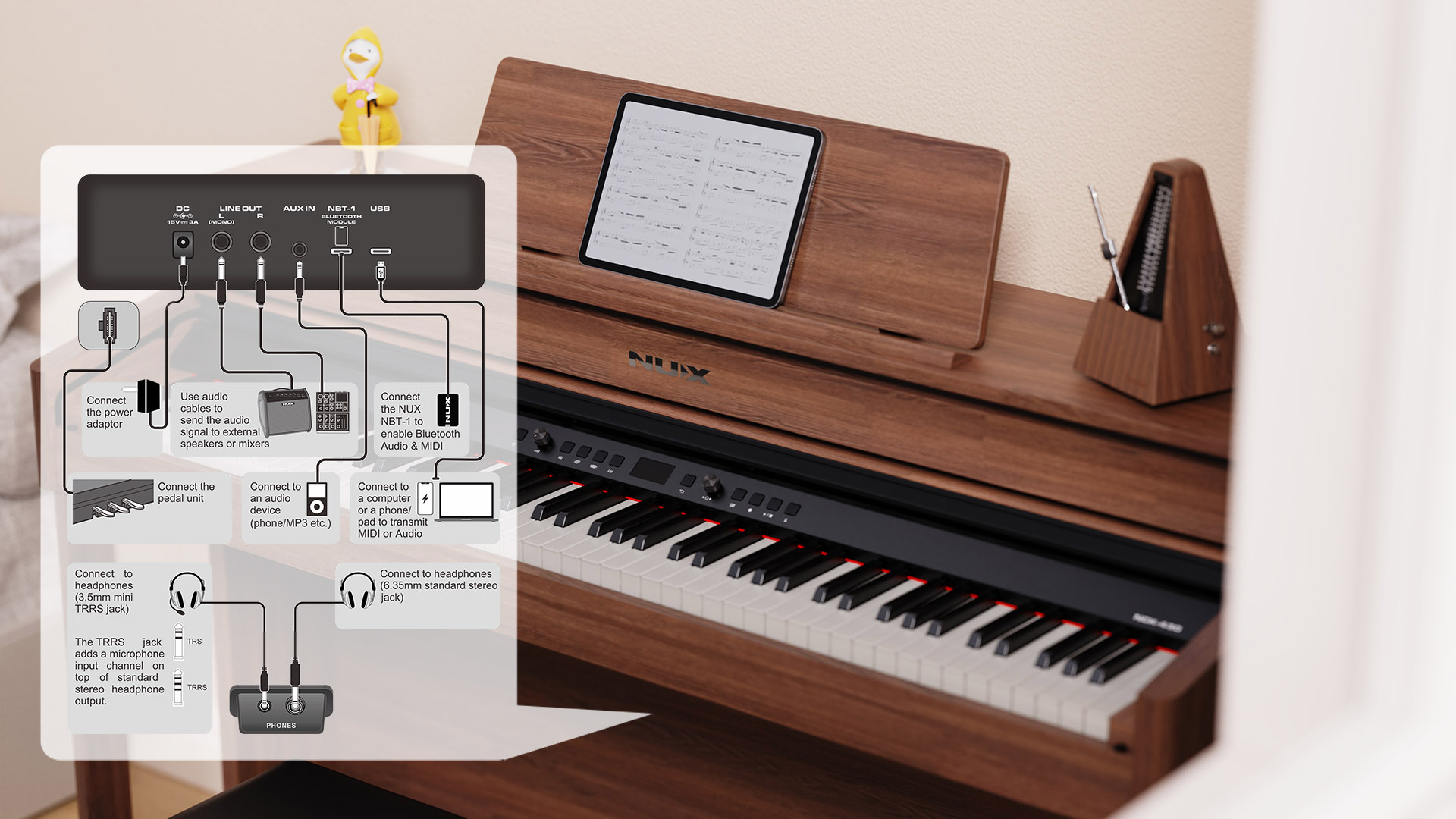

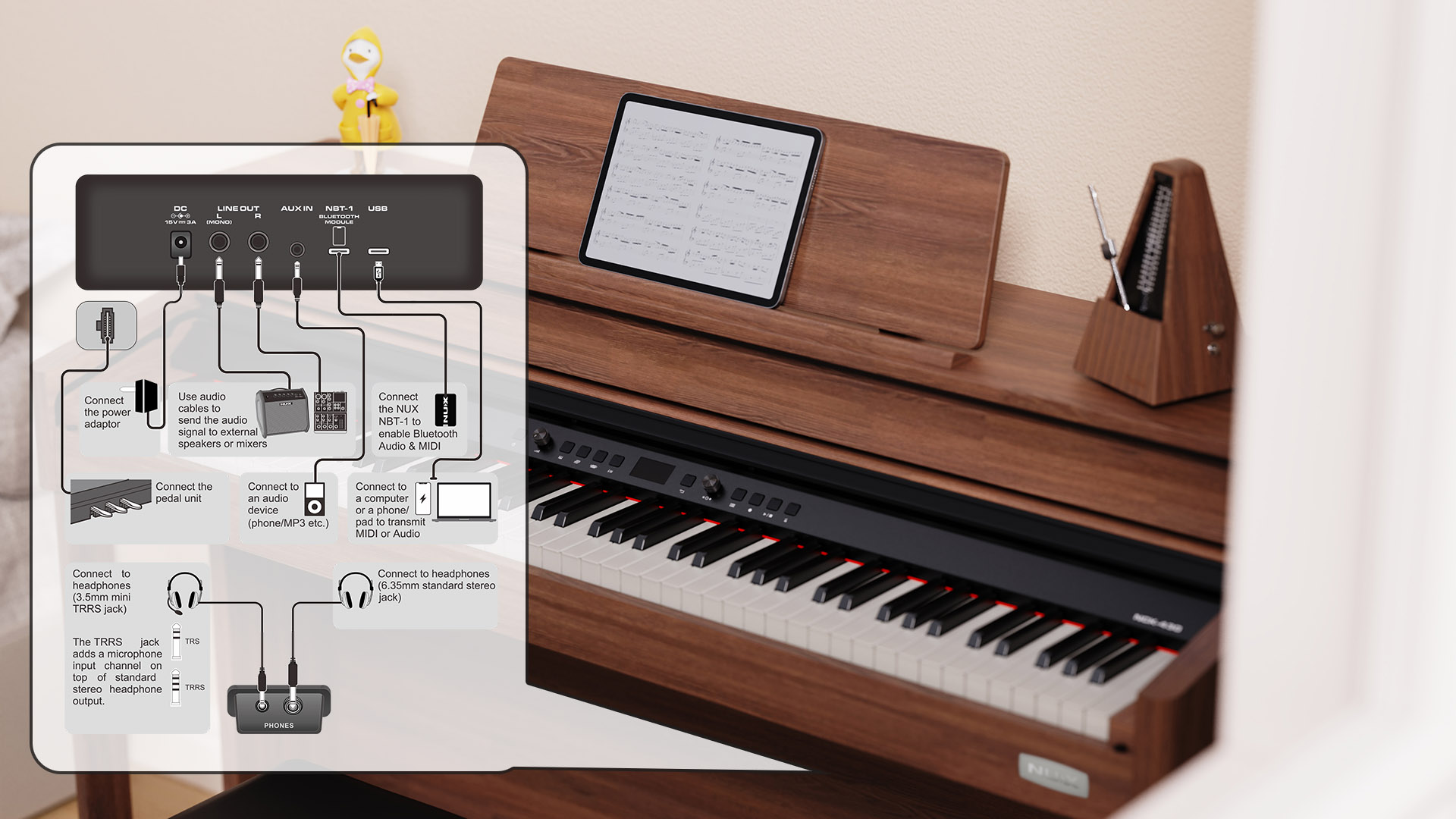

– Connectivity:
DC 15V 3A (Center Positive) Jack
6.35mm Line Out (L/MONO, R) Jacks
3.5mm Stereo Aux In Jack
Type-C NBT-1 Bluetooth Module Jack
USB Type-C port with 10W power output for mobile devices
3.5mm Phones Jack & Microphone Input Jack
6.35mm Phones Jack
Pedal Jack
– Speakers: 5″ x 2, 2.5″ x 2
– Amplifier: 10W x 2, 7W x 2
– Dimensions: 1395 (L) x 486 (W) x 950 (H) mm
– Weight: 56.6 kg
– Included Accessories: NBT-1 Bluetooth Module, Power Adaptor, Owner’s Manual
