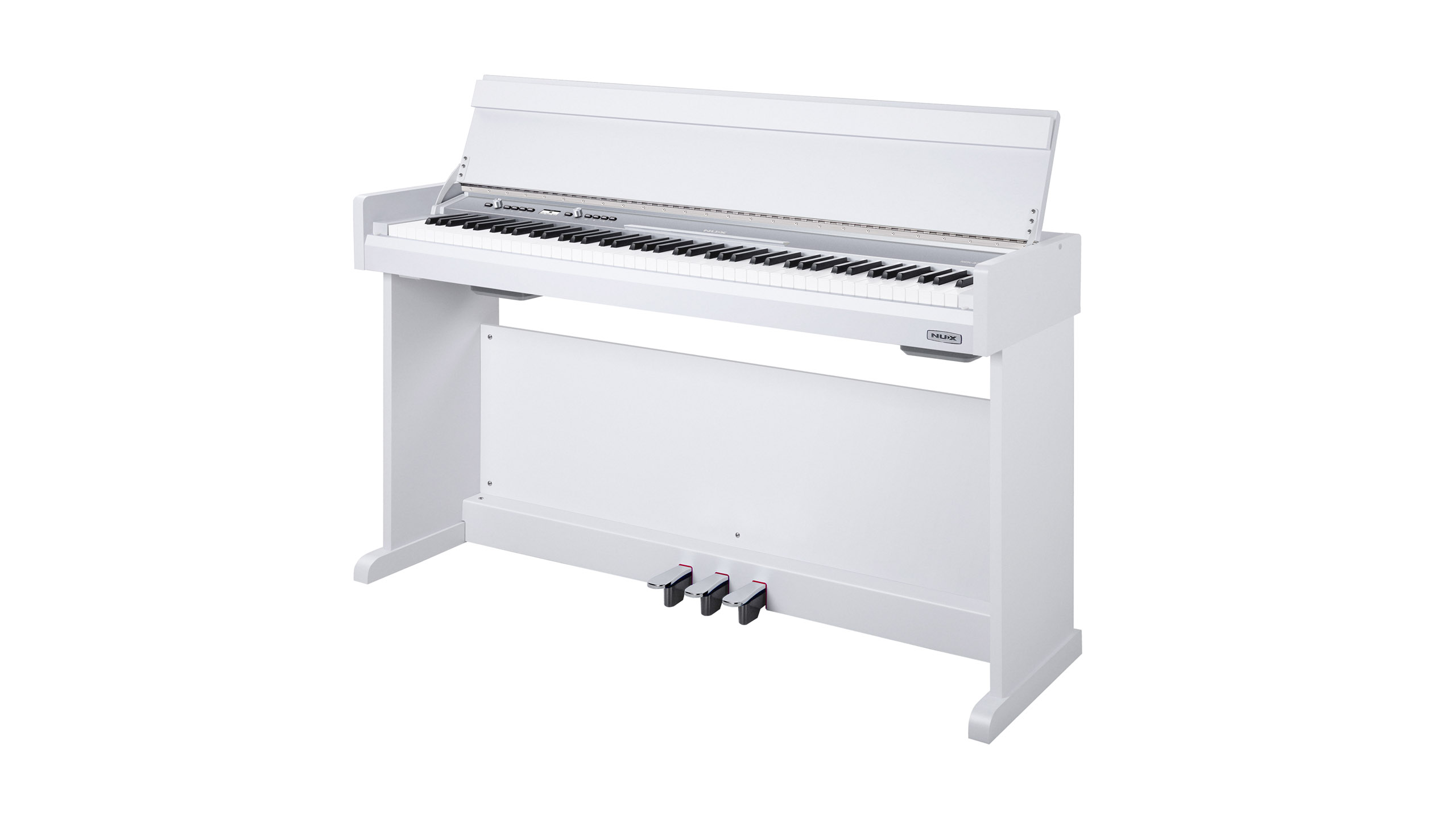

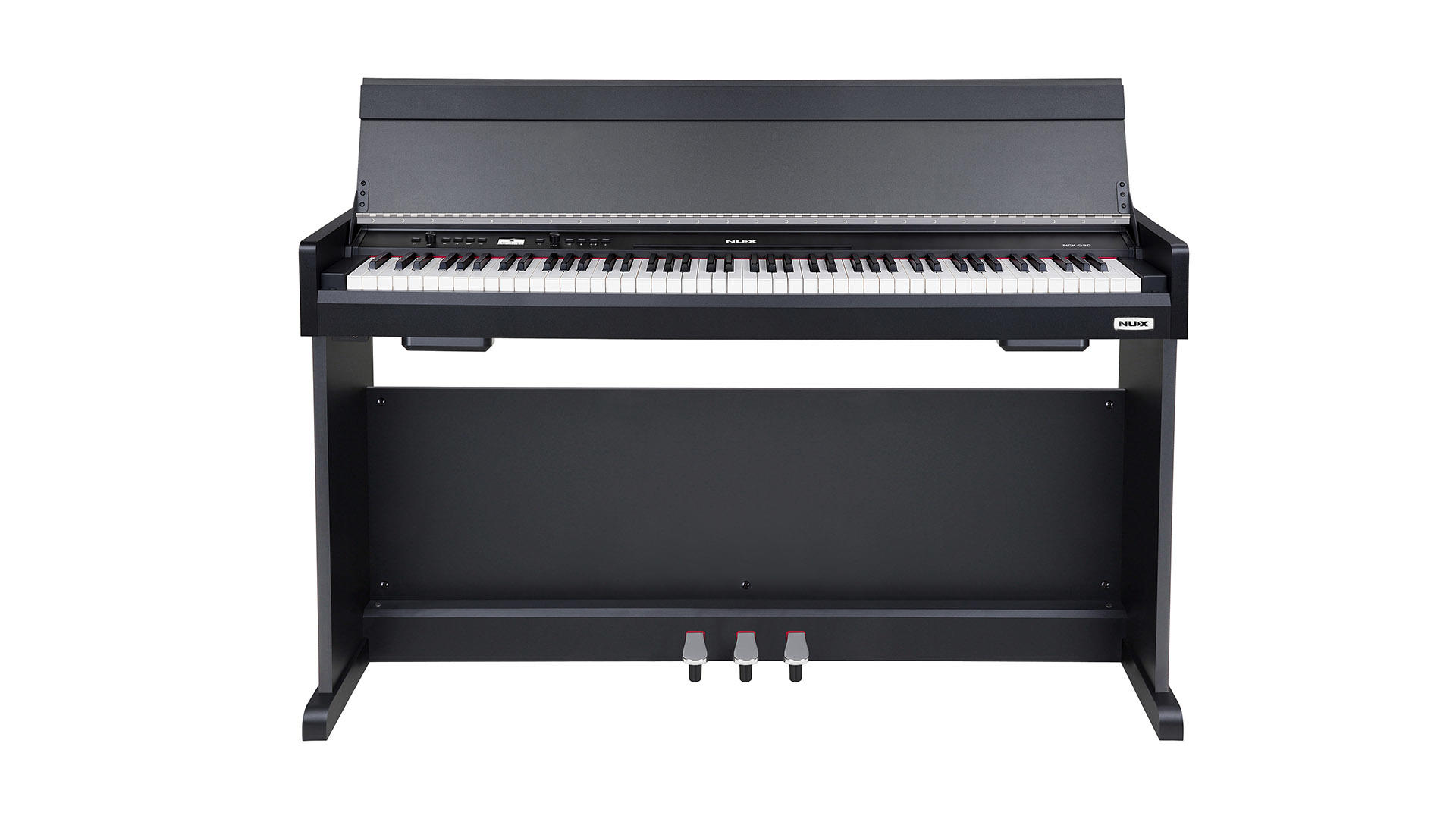

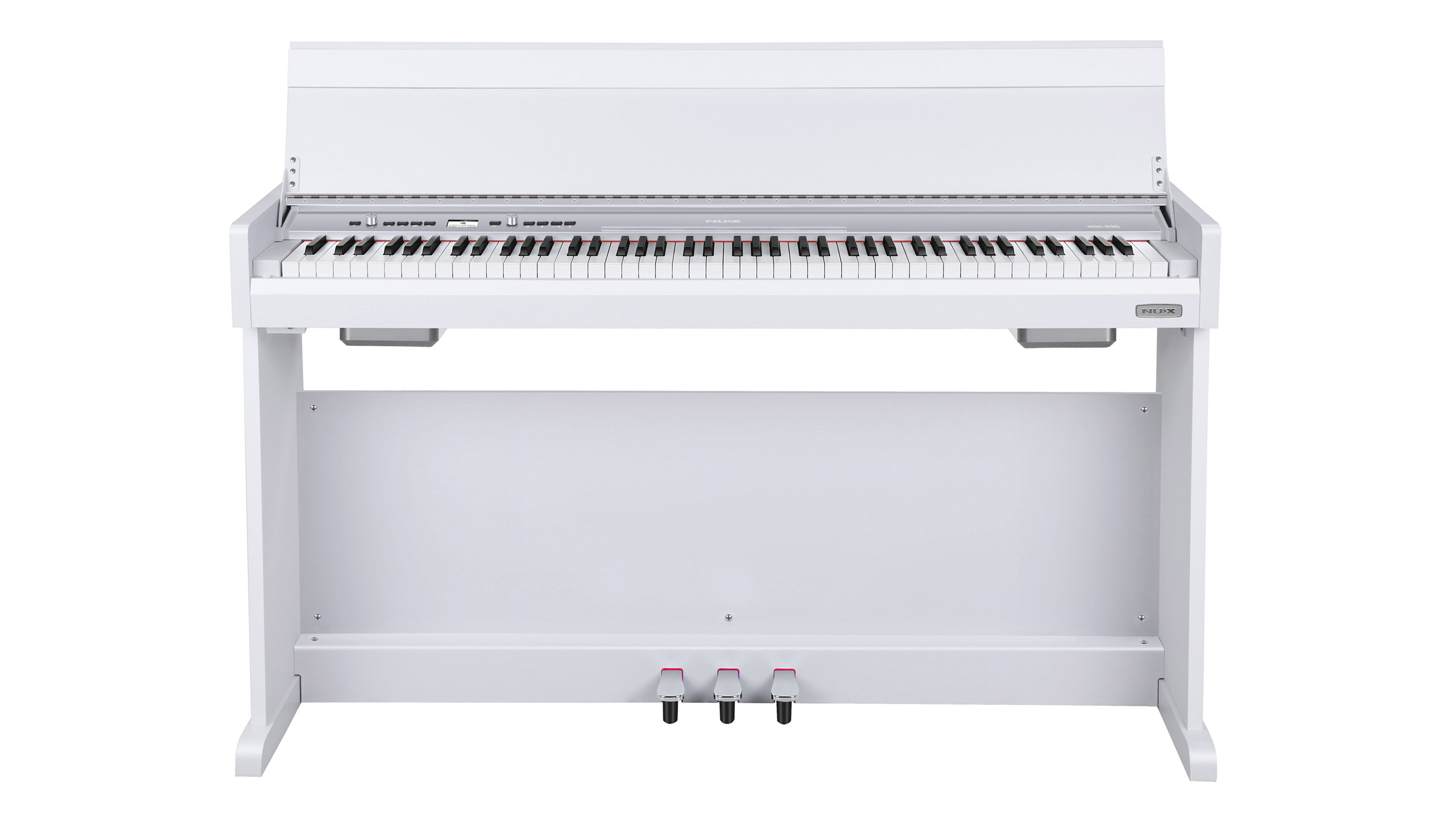

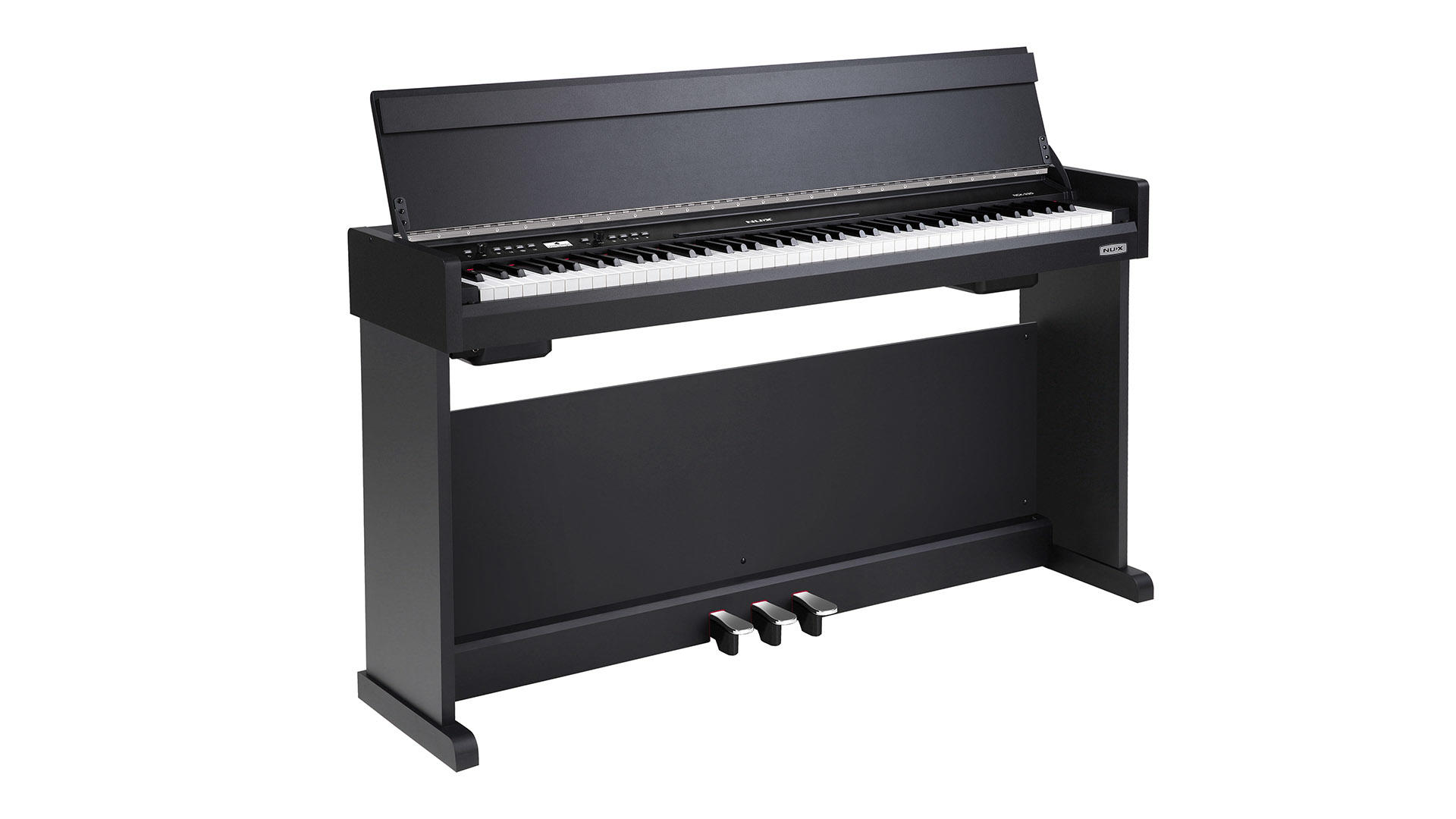

NCK-330
A Combination of Classic Piano and Modern Keyboard, Bringing Every Note to Life
The NUX NCK-330 digital piano, with its meticulous design and comprehensive upgrades, delivers exceptional sound quality and outstanding playing experience. The latest NUX WKJ-03 triple-sensor hammer-action keyboard and advanced sound processing technology, together with effects and functions like layered sounds, split keyboard, pianist accompaniment styles and customizable pedals, reproduce the real touch of a grand acoustic piano and meet the performance needs of different styles.
It offers diverse connectivity options such as Bluetooth Audio and MIDI, USB Audio and MIDI recording. You can effortlessly record videos using your phone camera via OTG, play accompaniments via Bluetooth, connect to tutorial apps, or trigger virtual instrument sounds, effectively catering to your modern keyboard requirements.

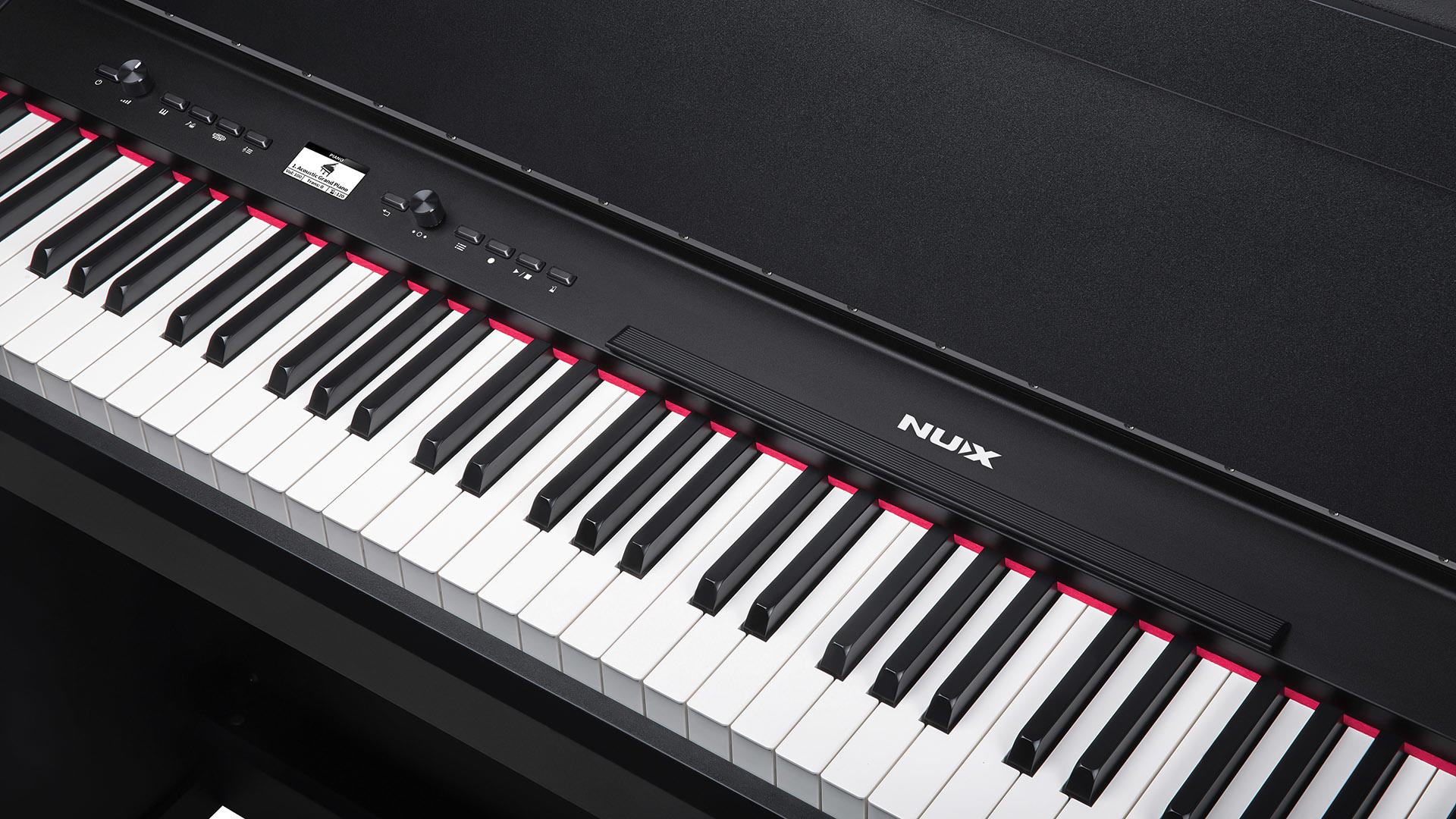

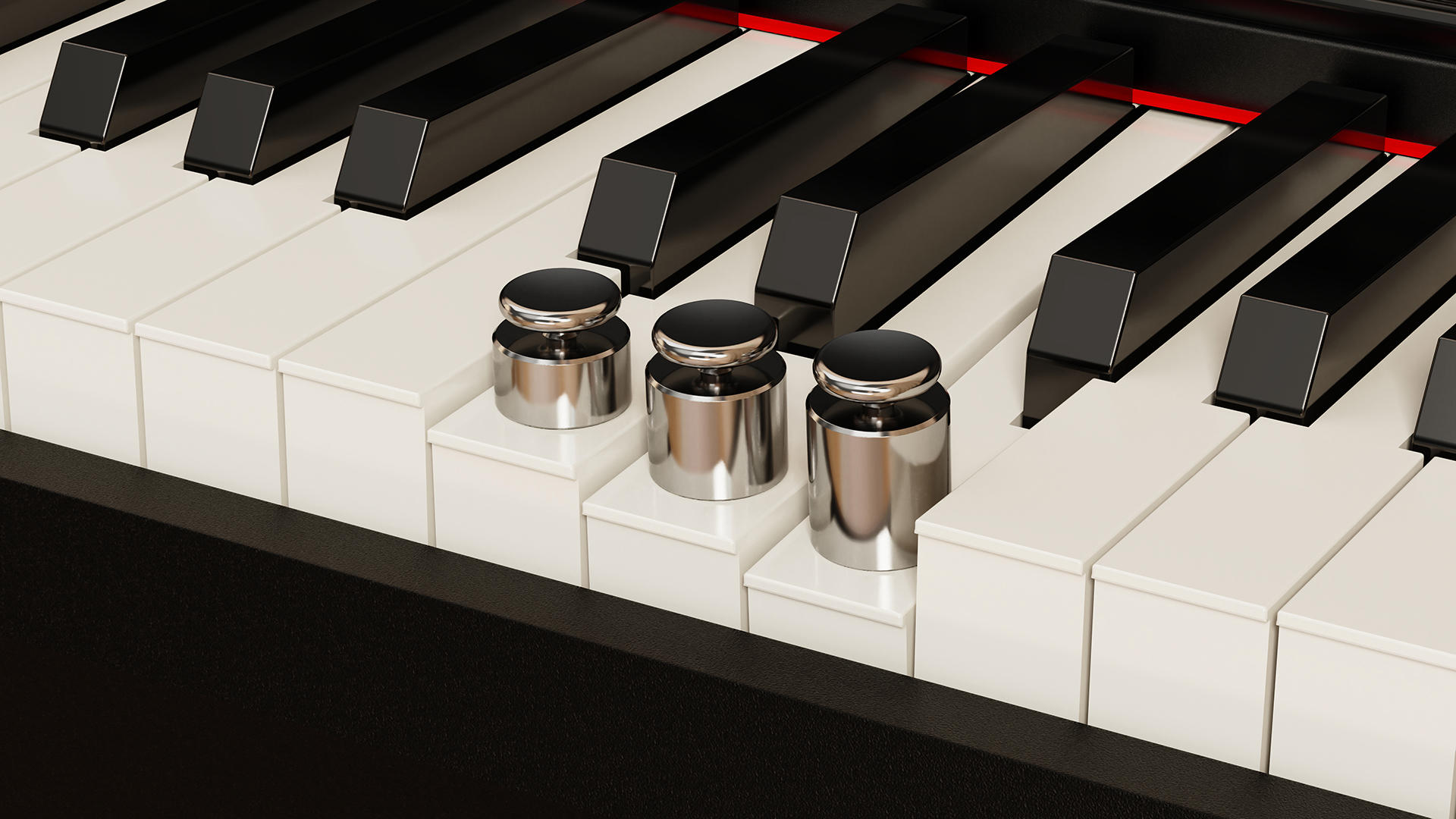

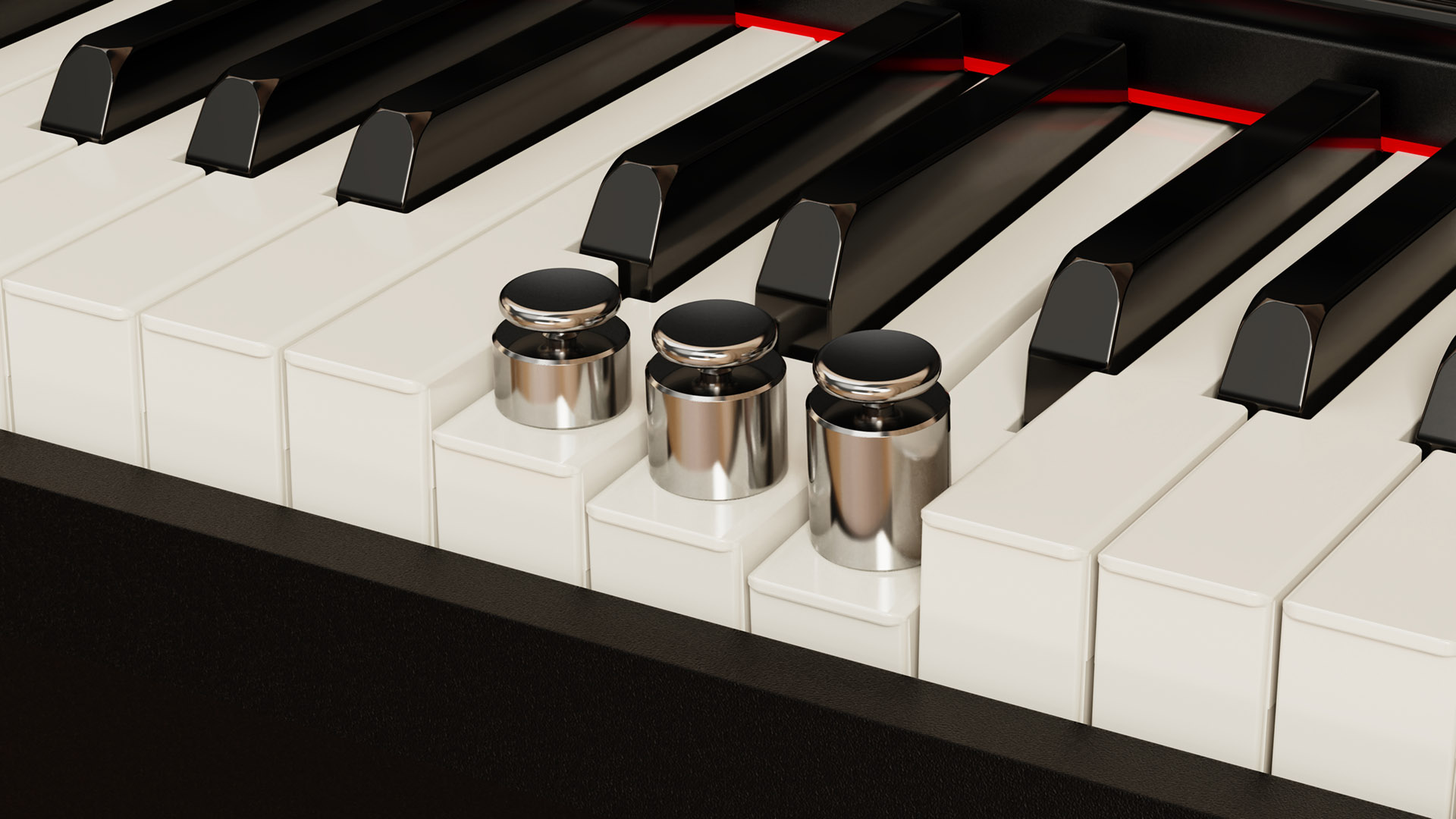

Acoustic Piano Feel at Your Fingertips

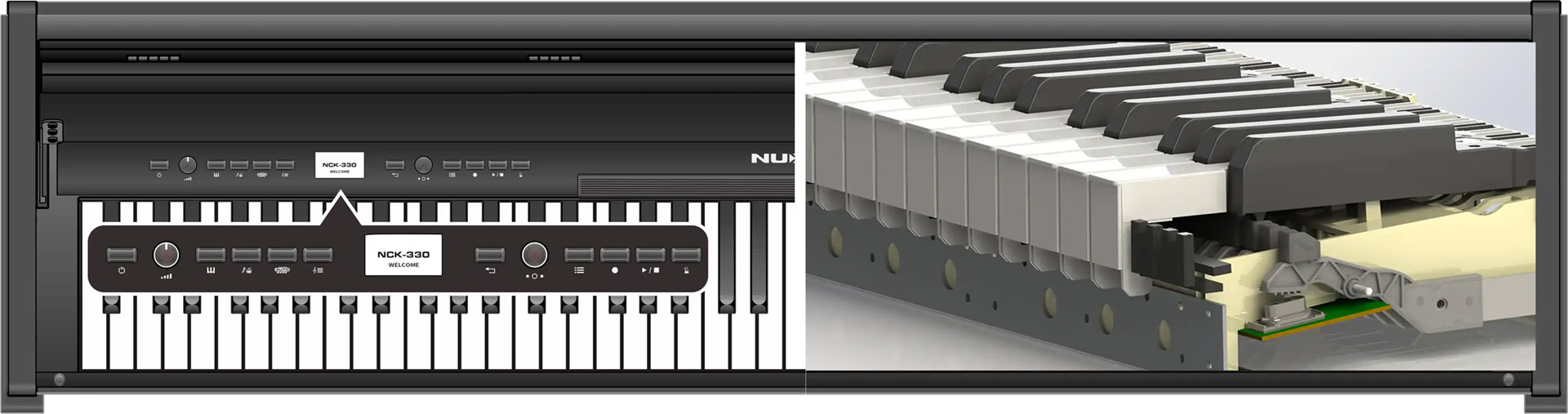

The NCK‐330 features the NUX WKJ‐03 Triple‐Sensor Scaled Hammer‐Action Weighted Keyboard with escapement and synthetic ivory/ebony keytops.
Rich and Dynamic Sounds With a Max.
Polyphony of 256
The NCK-330 has a total of 143 high-quality sounds, within which the grand piano sound comes from the latest sampling and processing of a German nine-foot grand piano. All sounds have been optimized, making them more realistic and expressive. With a maximum polyphony of 256, it meets nearly all the needs of players and music lovers.

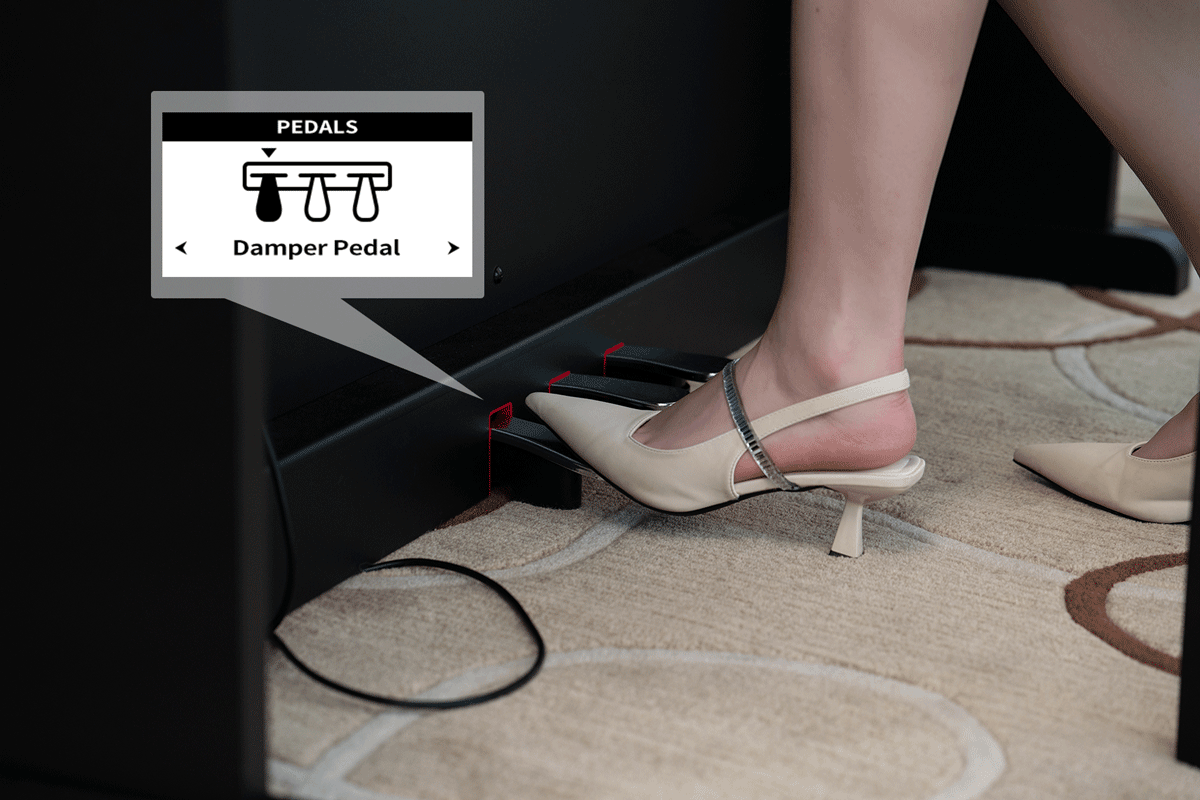

Customizable Pedal-Unit with
Half-Pedal Functions
The pedal unit of the NCK-330 supports half-pedal, authentically reproducing the delicate sounds of high-end acoustic grand and upright pianos.
Besides, the pedals of NCK-330 break through from the constraints of the traditional piano and can be flexibly customized. There are 7 options for you to assign to each of the pedals:
USB AUDIO &MIDI Recording
With a single USB cable, you can easily record high‐quality audio directly to your phone or computer. Simply turn on your phone’s camera if you want to record video and audio simultaneously—simple and convenient!
The NCK‐330 also supports USB MIDI, allowing it to function as a MIDI keyboard to trigger external sound sources or connect with tutorial software. It’s versatile and powerful for various applications.

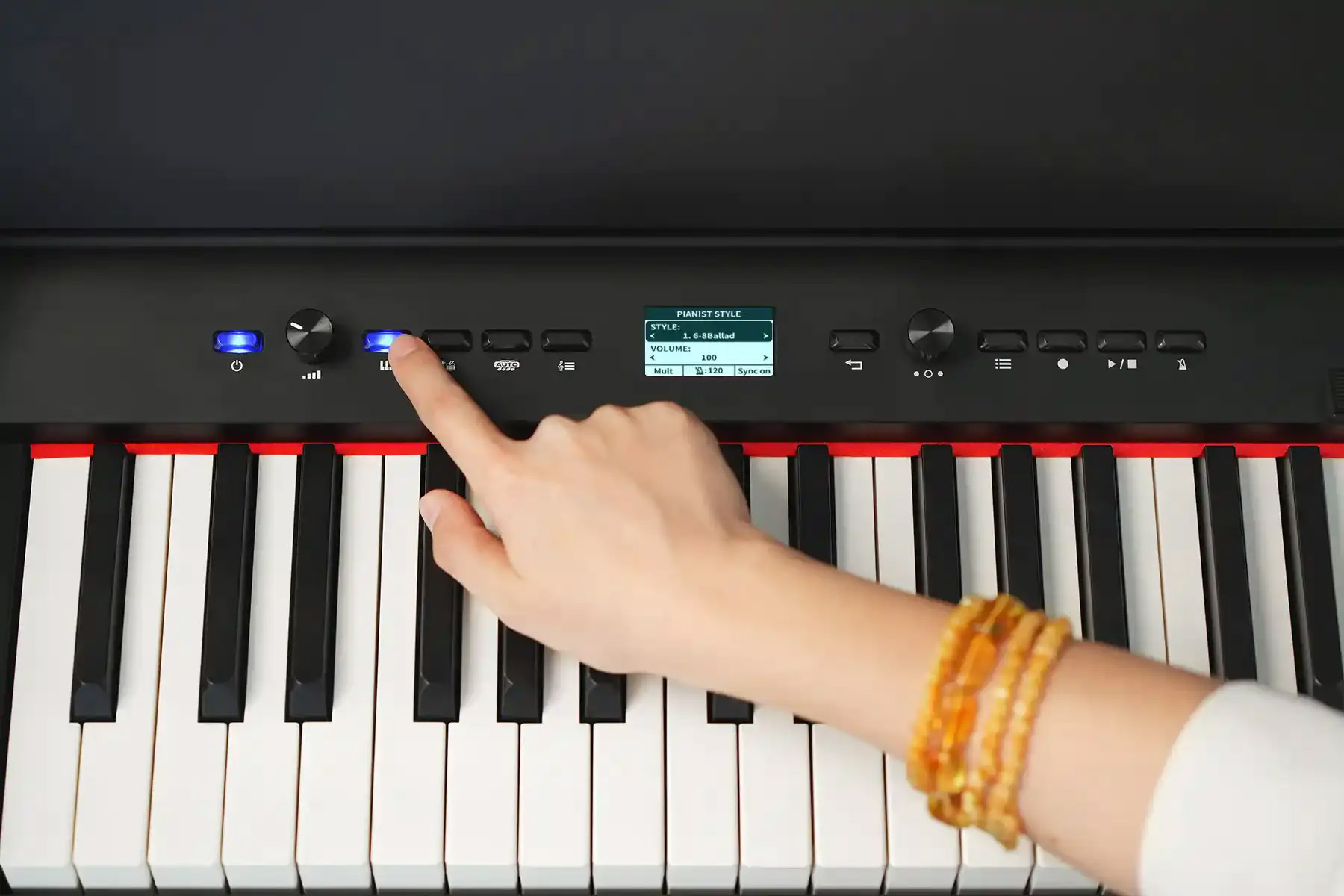

Pianist Accompaniment Styles
With 50 built‐in pianist accompaniments, you can select the music style that suits you best. Whether you prefer classical or jazz, these accompaniment styles will inspire your improvisation and creativity, helping you unleash your musical potential.

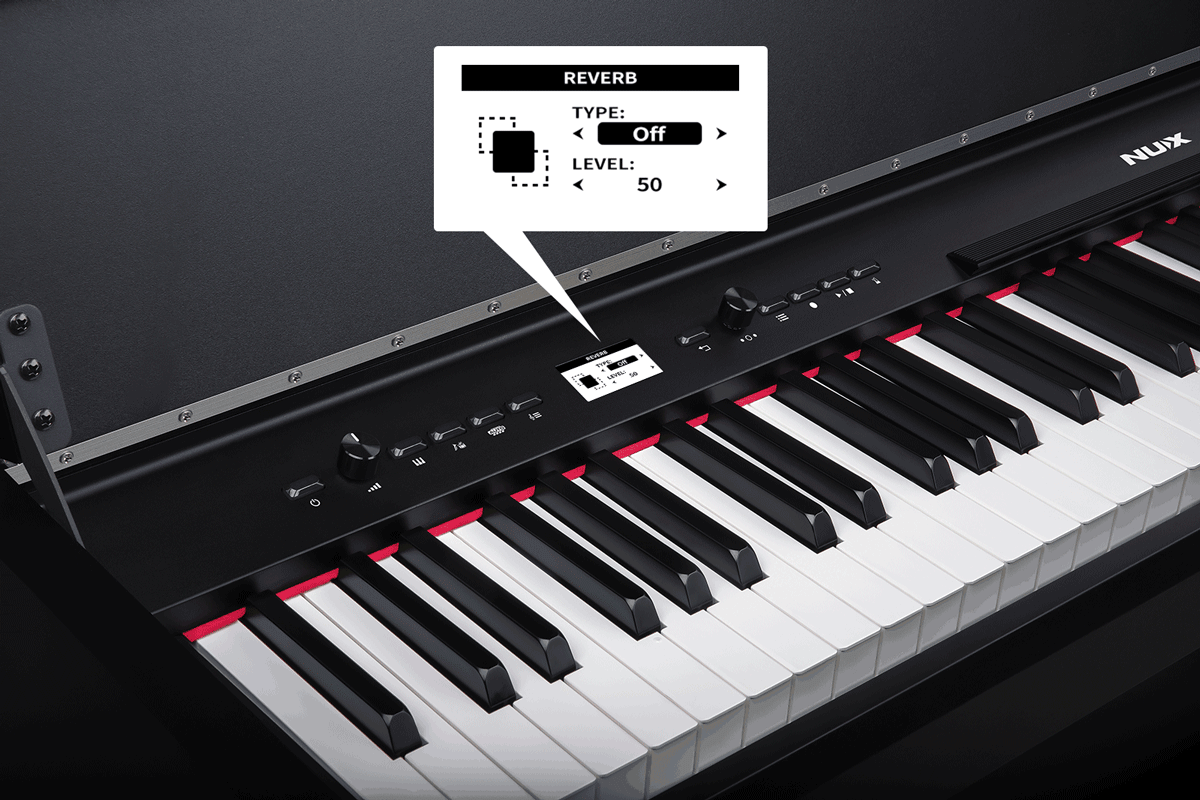

Professional Effects Adjustment
To provide you with an amazing sound experience, the NCK -330 includes professional reverb and chorus effects such as Room, Hall, Plate, and more, making the playing experience more exciting.
Unique Digital Piano Experience
Put on your headphones to create a quiet practice environment. This enables you to practice at any time without disrupting others, making it convenient for both music teachers and students to use together during lessons.
| NUX NCK Series Comparison |
 |
 |
|
| NCK-330 | NCK-430 | ||
| Cabinet | |||

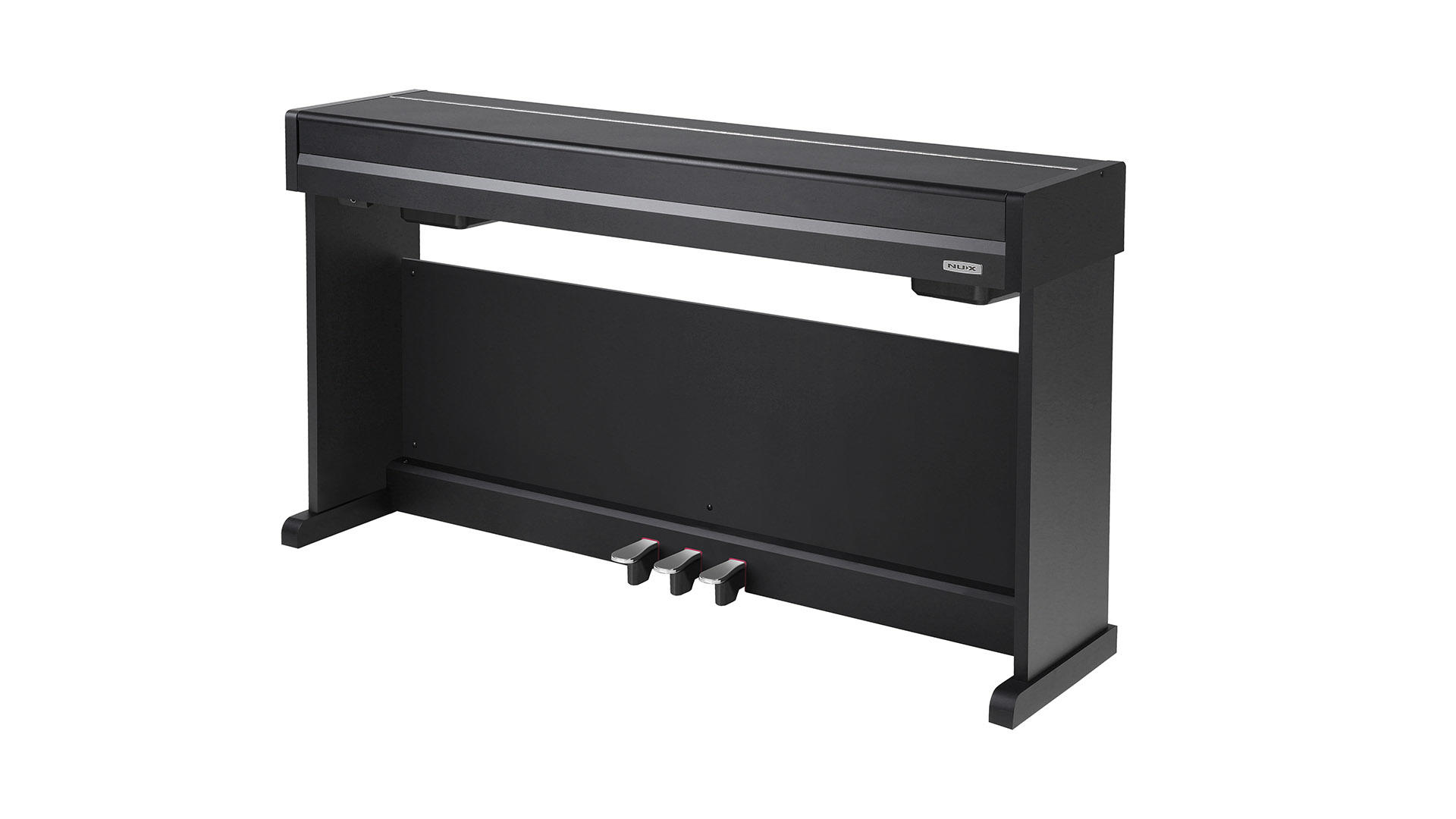

| Key Cover Style | Folding | Sliding | |
| Color | Black/White | Walnut Wood | |
| Music Rest | Yes | Yes | |
| Control Interface | |||
| Keyboard | Number of Keys | 88 | 88 |
| Type | NUX WKJ-03 triple-sensor scaled hammer-action weighted keyboard (with escapement and synthetic ebony/ivory keytops) | NUX WKJ-03 triple-sensor scaled hammer-action weighted keyboard (with escapement and synthetic ebony/ivory keytops) | |
| Touch Response | 5: Soft 2, Soft 1, Normal, Hard 1, Hard 2 | 10: Soft 6, Soft 5, Soft 4, Soft 3, Soft 2, Soft 1, Normal, Hard 1, Hard 2, Hard 3; Black and white keys can be set independently. | |
| Display | Type | Resolution 320dpi x 170dpi | Resolution 320dpi x 170dpi |
| Language | English | English | |
| Pedal | Number of Pedals | 7: Damper, Soft, Sostenuto, Modulation, volume | 7: Damper. Soft, Sostenuto, Modulation, Volume, Pitch Up, Pitch Down |
| Half Pedal | Yes (Left, Middle, Right) | Yes (Left, Middle, Right) | |
| Sounds | |||
| Sounds | Piano | 15 | 20 |
| Other | 128 | 130 | |
| Polyphony (Max.) | 256 | 256 | |
| Effect | |||
| Types | Reverb | 3: Room, Hall, Plate Adjustable level (0-100) | 8 Reverb types: 3 Room, 3 Hall, 2 Plate. Adjustable Level and Reverb Time |
| Chorus | Adjustable level (0-100) | Adjustable level, depth and rate | |
| Other Effects | Brightness adjustable (Level 0-100); Speaker EQ (Bright/Normal/Dark) | Brightness adjustable (Level 0-100); Modulation: Vibrato, Tremolo, Flanger, Phaser; 2 Delay types; Speaker EQ (Bright2/Bright1/Normal/Mellow 1/Mellow 2) | |
| Accompaniment & Demo Songs | |||
| Accompaniment | Number of Styles | 50 | 50 |
| Fingering | Single/Multi | Single/Multi | |
| Sync Start | Yes | Yes | |
| Other Functions | Adjustable volume; Tempo | Adjustable volume; Tempo | |
| Demo Song | Number of Songs | 100 (Adjustable volume) | 100 |
| Functions | |||
| Master Control | Metronome | Yes (4 sounds, 9 beats types) | Yes (4 sounds, 9 beats types) |
| Tempo Range | 40~240 BPM | 40～240 BPM | |
| Transpose | ±12 | ±12 | |
| A4 Tuning | 425 Hz ~ 455Hz | 425Hz ~ 455Hz | |
| Performance Mode | Dual / Layer Voice | Supports Dual Voice (Volume balance adjustable) | Supports Dual Voice (Volume balance adjustable) |
| Split | Split point adjustable; Individual octave shift, volume and tone selection for each zone | Split point adjustable; Individual octave shift; Volume and tone selection | |
| Record | Number of Tracks | 5 | 5 |
| Playback | Yes | Yes | |
| Other Functions | Adjustable ACC volume; Single/multi fingering; Sync on/off | Compander | |
| Presets | 5 user presets to save and recall complete performance settings | 5 user presets to save and recall complete performance settings | |
| Other Functions | - | ||
| Sound System | |||
| Amplifiers | 10W *2 | 34W (10W *2，7W *2) | |
| Speakers | 5" *2 | 2-way speaker system 5" *2; 2.5" *2 | |
| Connectivity | |||
| Connectors | Headphones | 3.5mm stereo jack; 6.35mm stereo jack; with headphone hook | 3.5mm stereo jack, with vocal output to mobile devices via USB OTG function; 6.35mm stereo jack; |
| AUX IN | 3.5mm stereo jack | 3.5mm stereo jack | |
| LINE OUT | 6.35mm (L/MONO, R) jacks | 6.35mm (L/MONO, R) jacks | |
| Pedal | Pedal unit jack | Pedal unit jack | |
| USB | USB MIDI, USB Audio (Recording level adjustable) | USB MIDI, USB Audio (Recording level adjustable). 10W power supply to external devices | |
| DC IN | 12V | 15V ⎓ 2.4A（37.5W） | |
| Bluetooth | Bluetooth MIDI, Bluetooth Audio | Bluetooth MIDI, Bluetooth Audio | |
| Other Connectors | - | USB supports OTG recording with mobile devices | |
| Power | |||
| Power Consumption | 20W | 37.5W | |
| Auto Off | 30 mins (adjustable) | Yes, automatically load the last selected tone | |
| Size / Weight | |||
| Dimensions | Length | 1366mm | 1395mm |
| Width | 361mm | 486mm | |
| Height | 791mm | 950mm | |
| Weight | 37.9kg | 56.6kg | |
| Included Accessories | |||
| Included Accessories | NBT-1 Bluetooth Module; AC Adaptor; User Manual | NBT-1 Bluetooth Module; AC Adaptor; User Manual | |
Manuals
Firmwares
Drivers
Apps
Keyboard
– NUX WKJ-03 triple-sensor scaled hammer-action weighted keyboard (with escapement)
– Touch Response: 5 levels
Sounds
– Piano Sounds: 15 sounds
– Other Sounds: 128 sounds
– Max. Polyphony: 256
Effects
– Reverb: 3 types, depth adjustable (0-100)
– Chorus: Depth adjustable (0-100)
– Brightness: Level adjustable (0-100)
– Speaker EQ: 3 types
Pedals
– Pedal Unit: Triple pedal unit with half-pedal support
– Functions: Damper, Soft, Sostenuto, Modulation, Volume, Pitch Up, Pitch Down
Accompaniment & Demo Songs
– Accompaniment: 50 pianist accompaniment styles (single/multi fingering, sync start)
– Demo Songs: 100 songs
Functions
– Layered Sounds: Volume balance adjustable
– Split Keyboard: Split point adjustable; individual octave shift, volume and tone selection
– Transpose: ±12
– A4 Tuning: 425~455Hz
– Metronome: 4 sounds, 9 beats types, tempo range 40-240bpm
– User Presets: 5 presets
– Recording: 5 tracks
– Auto Off: Yes
– Bluetooth: Bluetooth Audio, Bluetooth MIDI
– USB: USB Audio (recording level adjustable), USB MIDI
Others

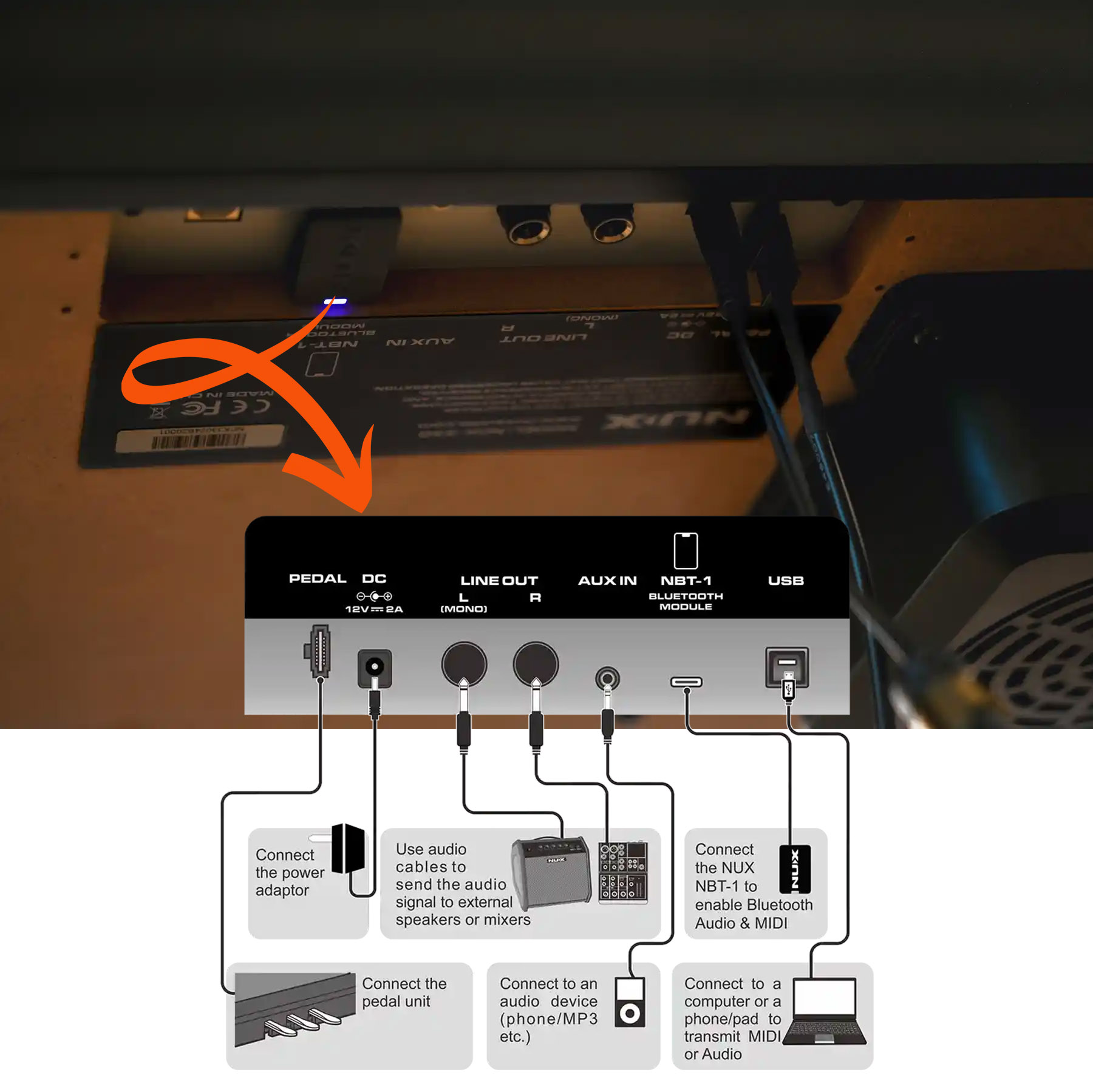

– Connectivity: 3.5mm Stereo Phones Out, 6.35mm Stereo Phones Out, 6.35mm Line Out (L/MONO, R), 3.5mm Stereo Aux In, Pedal Jack, NBT-1 Bluetooth Module Jack, USB Jack, DC 12V 2A Jack
– Speakers: 5″x2, 10Wx2
– Dimensions: 1366mm(L)x361mm(W)x791mm(H)
– Weight: 37.9kg
